Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test A: Power Seat Is Inoperative

Test A: Power Seat Is Inoperative

A1 - A3:

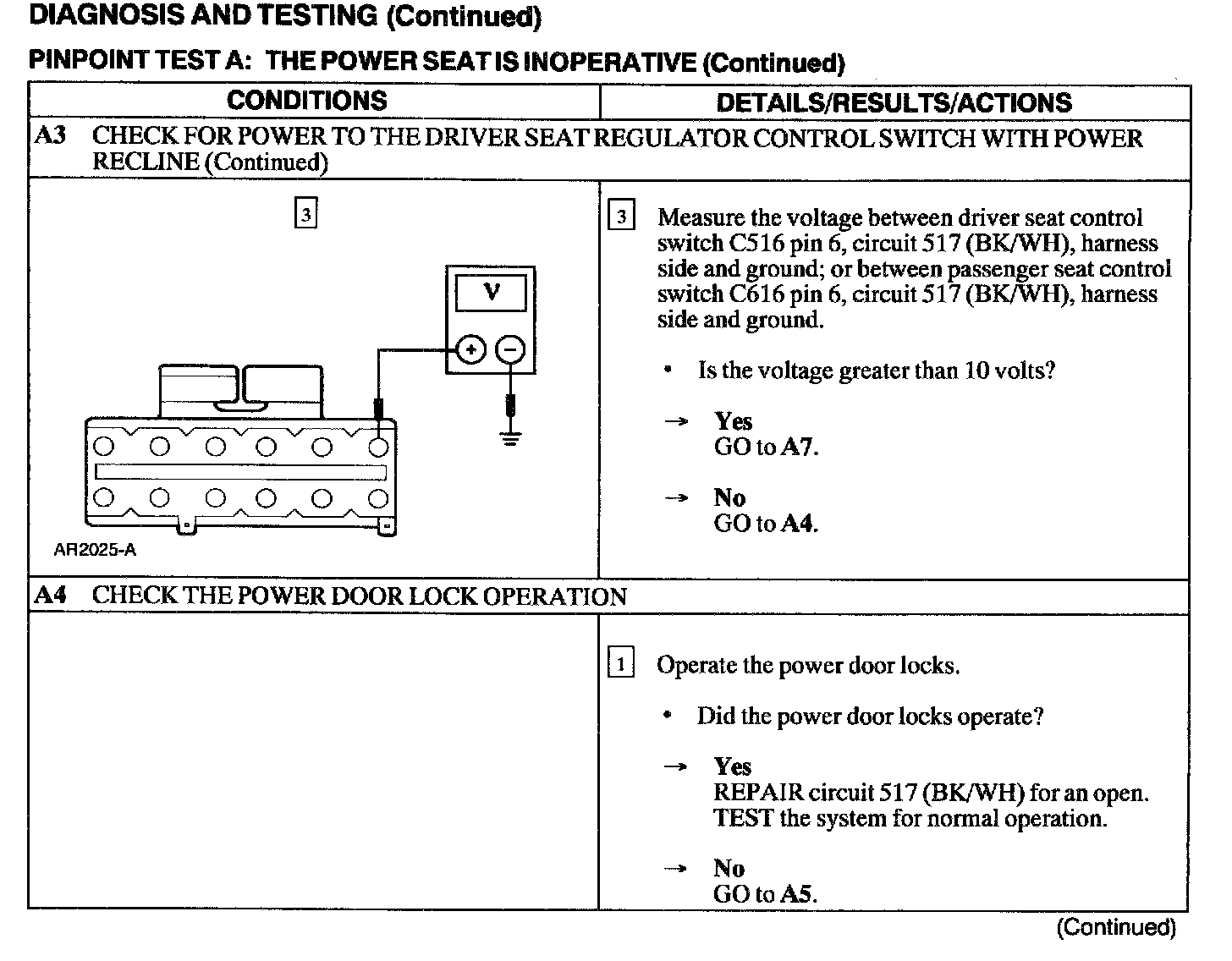

A3 - A4:

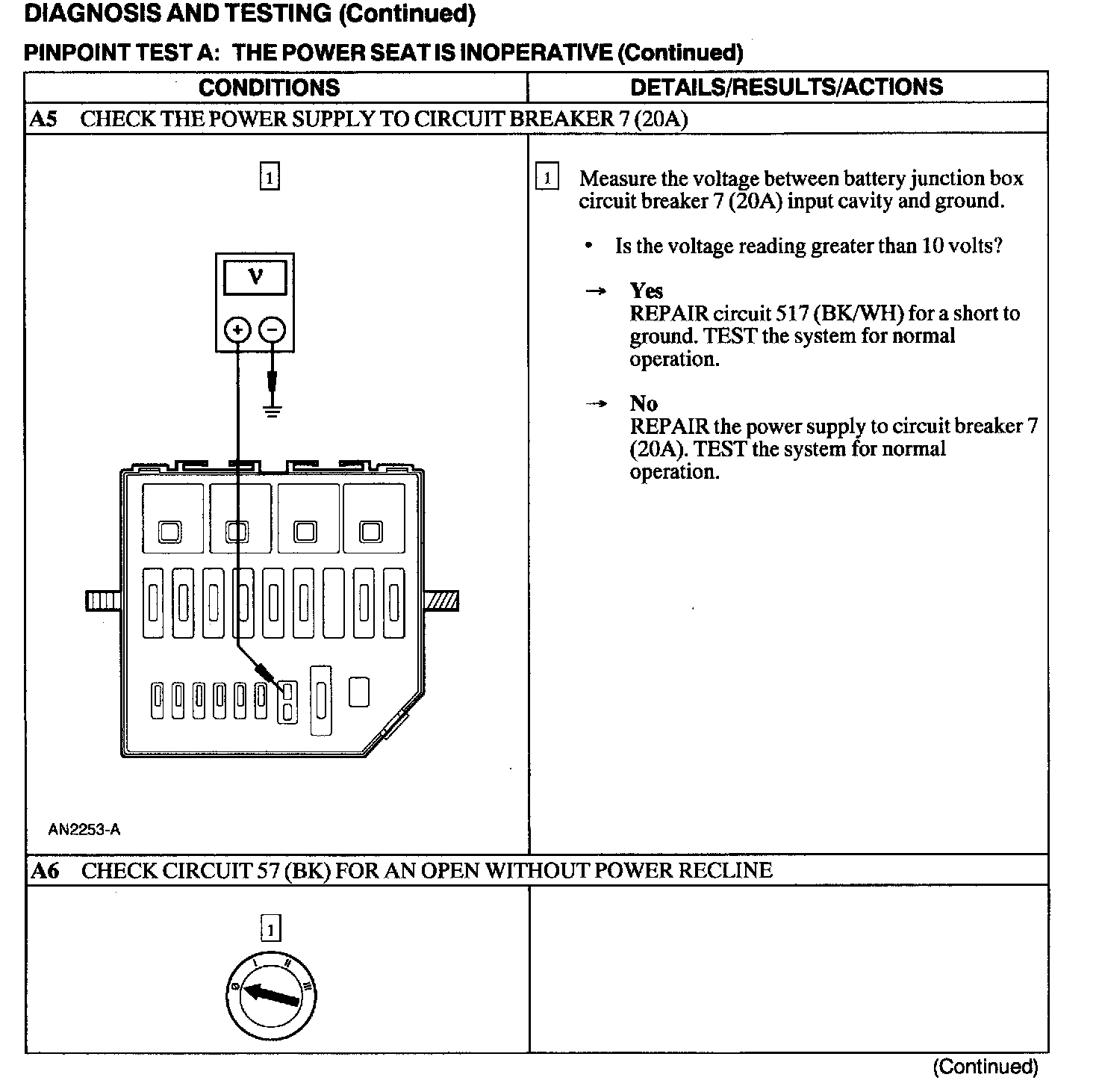

A5 - A6:

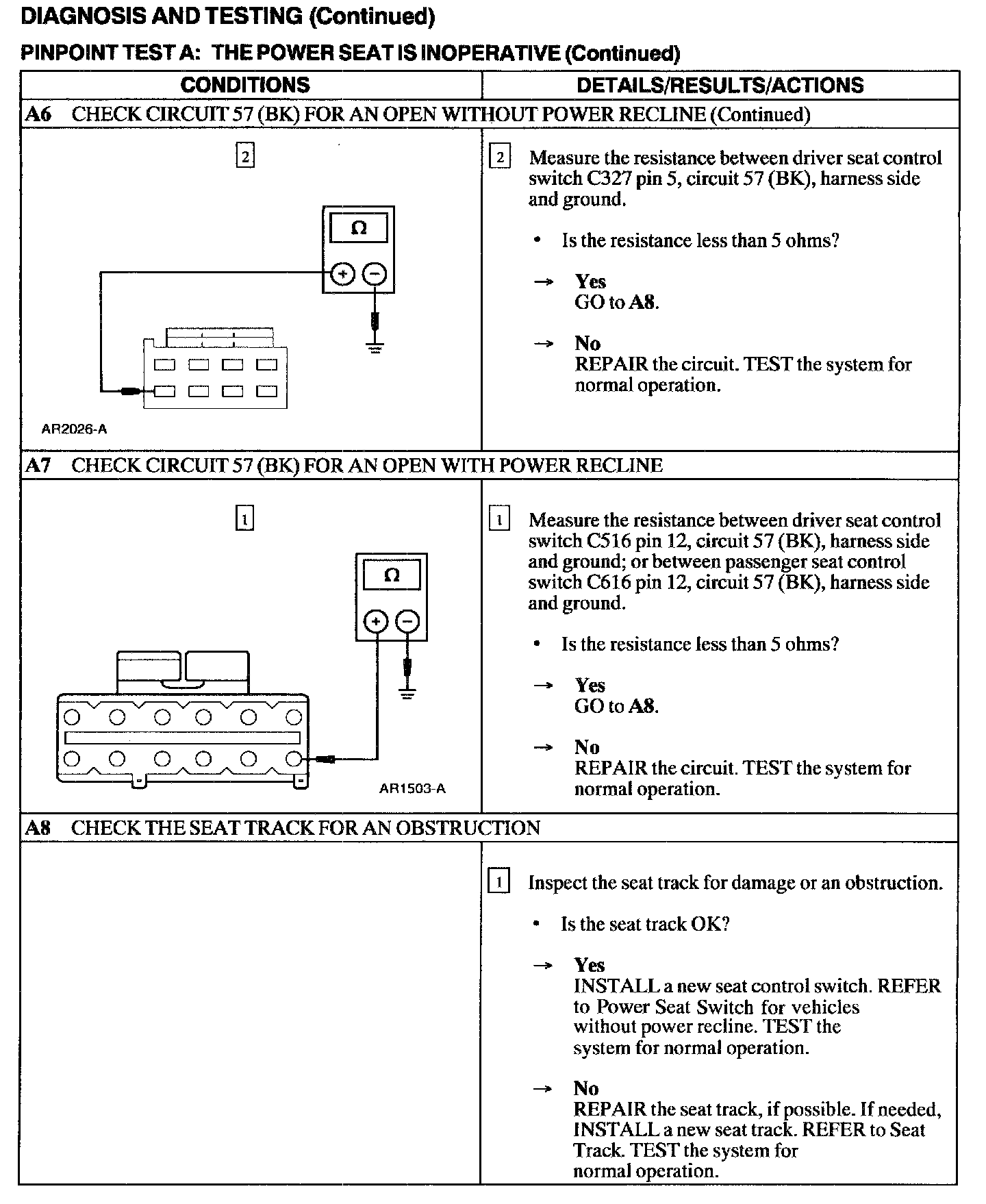

A6 - A8:
