Seat Cushion: Service and Repair

DISASSEMBLY
1. Remove the seat.
2. Remove the front seat backrest.
3. Remove the seat track.







4. Release the retainers
1 Release the J-clips.
2 Remove the pin-type retainer.







5. Remove the cover.







6. Remove the retaining clip.







7. Remove the pin.
8. Remove the armrest.







9. Remove the armrest cover trim.







10. Remove the frame.

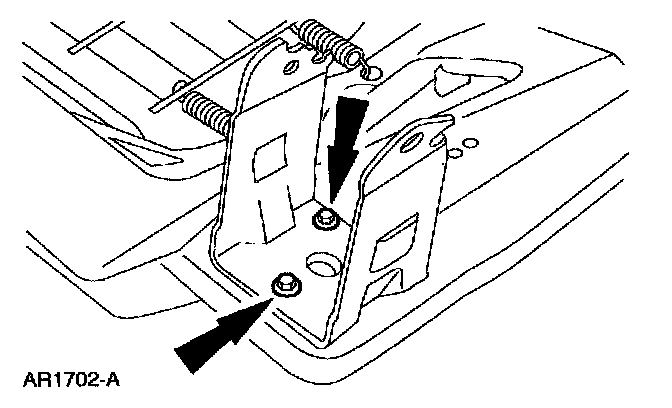

11. Remove the bolts and armrest bracket.
12. Remove the seat trim cover.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
2. Check the active restraint system for correct operation.
