Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test P: Keyless Entry Keypad Illumination Is Inoperative

Test P: Keyless Entry Keypad Illumination Is Inoperative

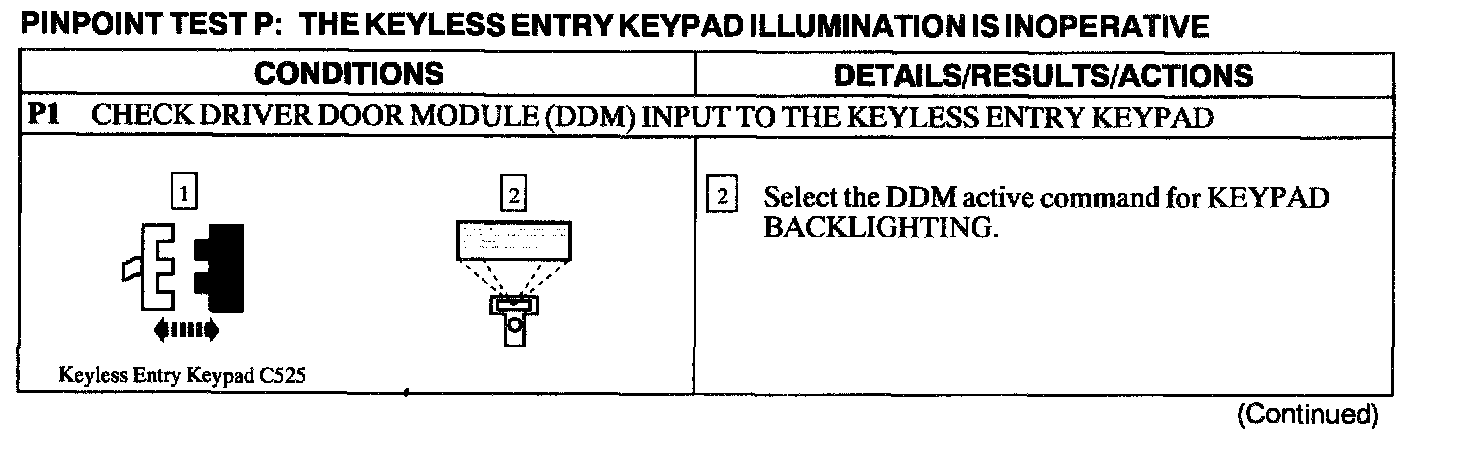

P1:

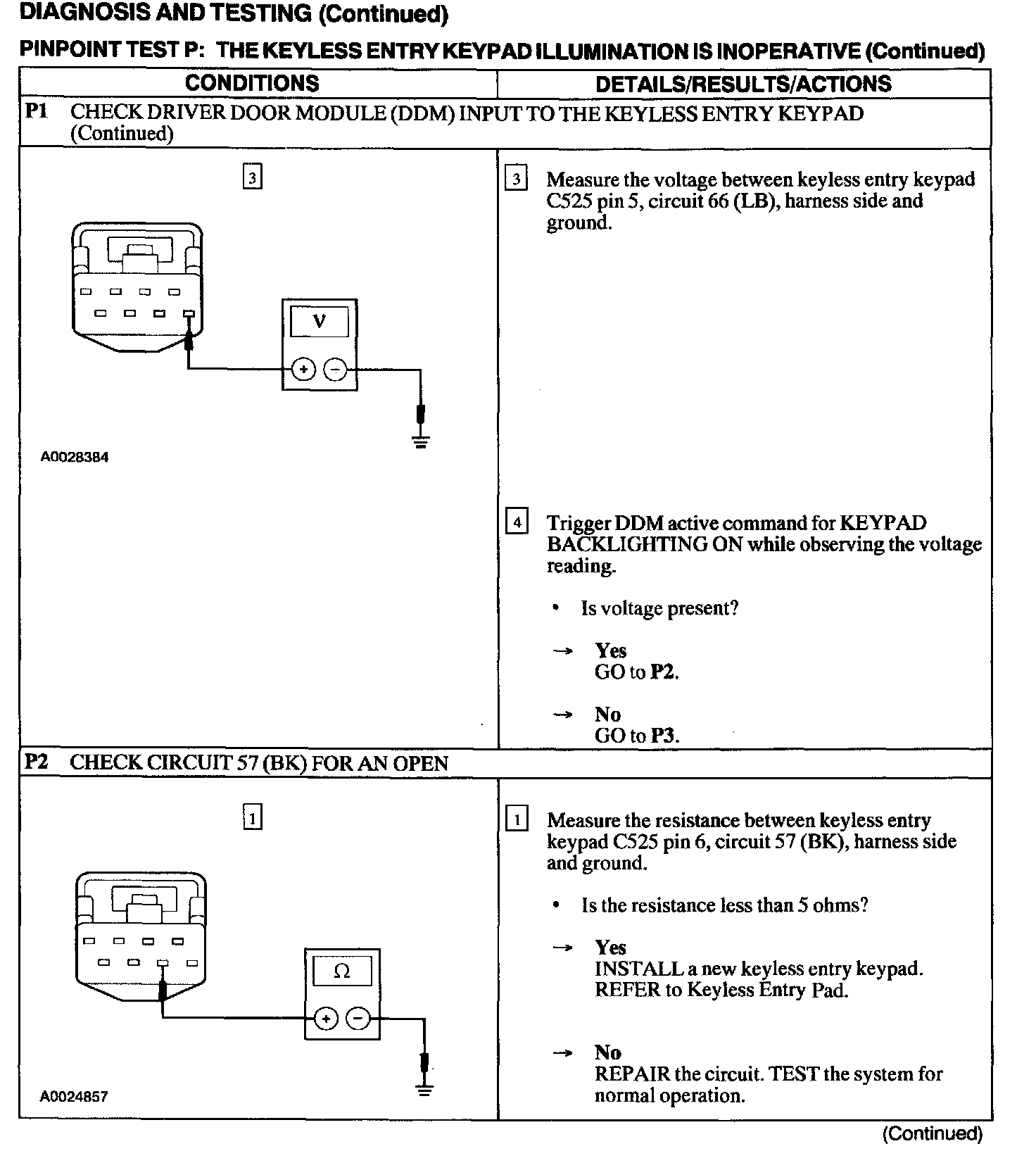

P1 - P2:

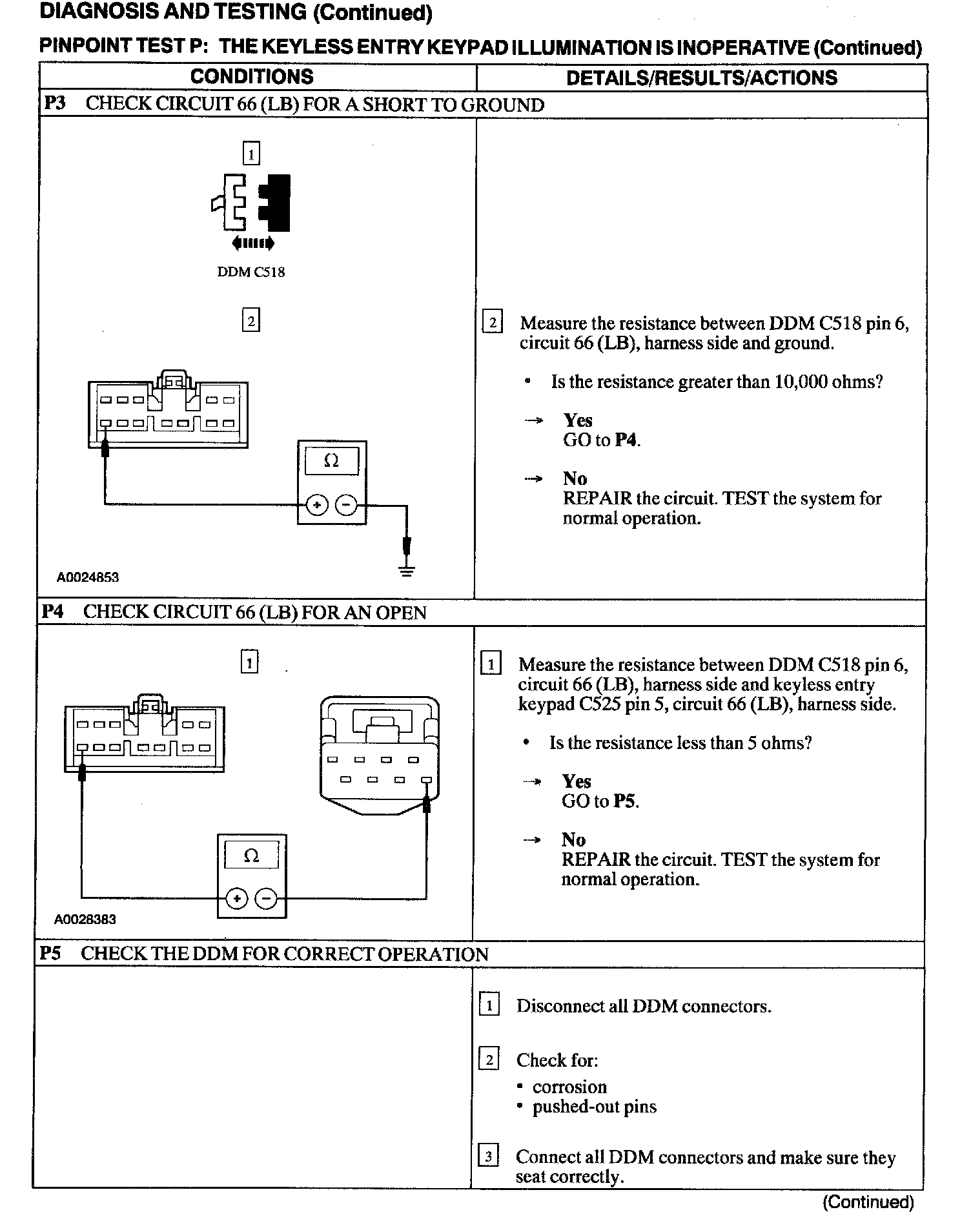

P3 - P5:

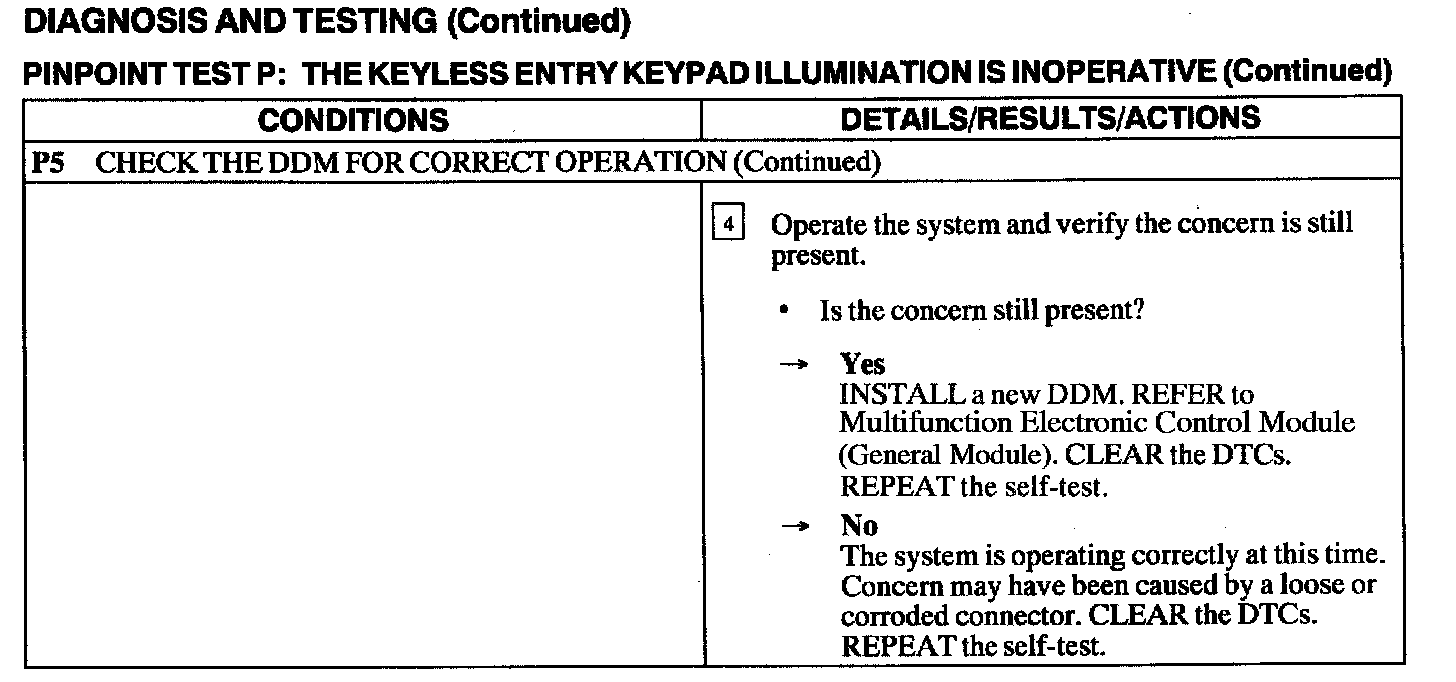

P5:
