Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test K: DTC B1751-Park/Neutral Switch Circuit Short to Battery (Driver Door Module [DDM])

Test K: DTC B1751-Park/Neutral Switch Circuit Short to Battery (Driver Door Module [DDM])

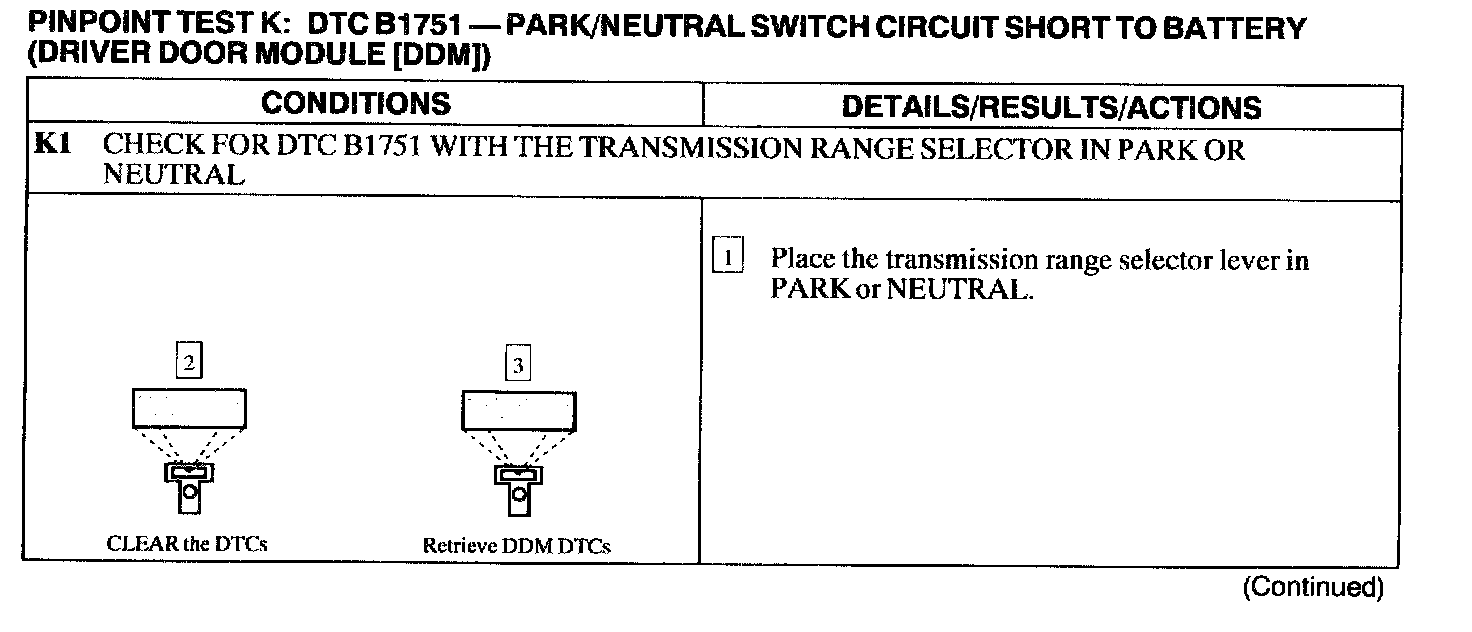

K1:

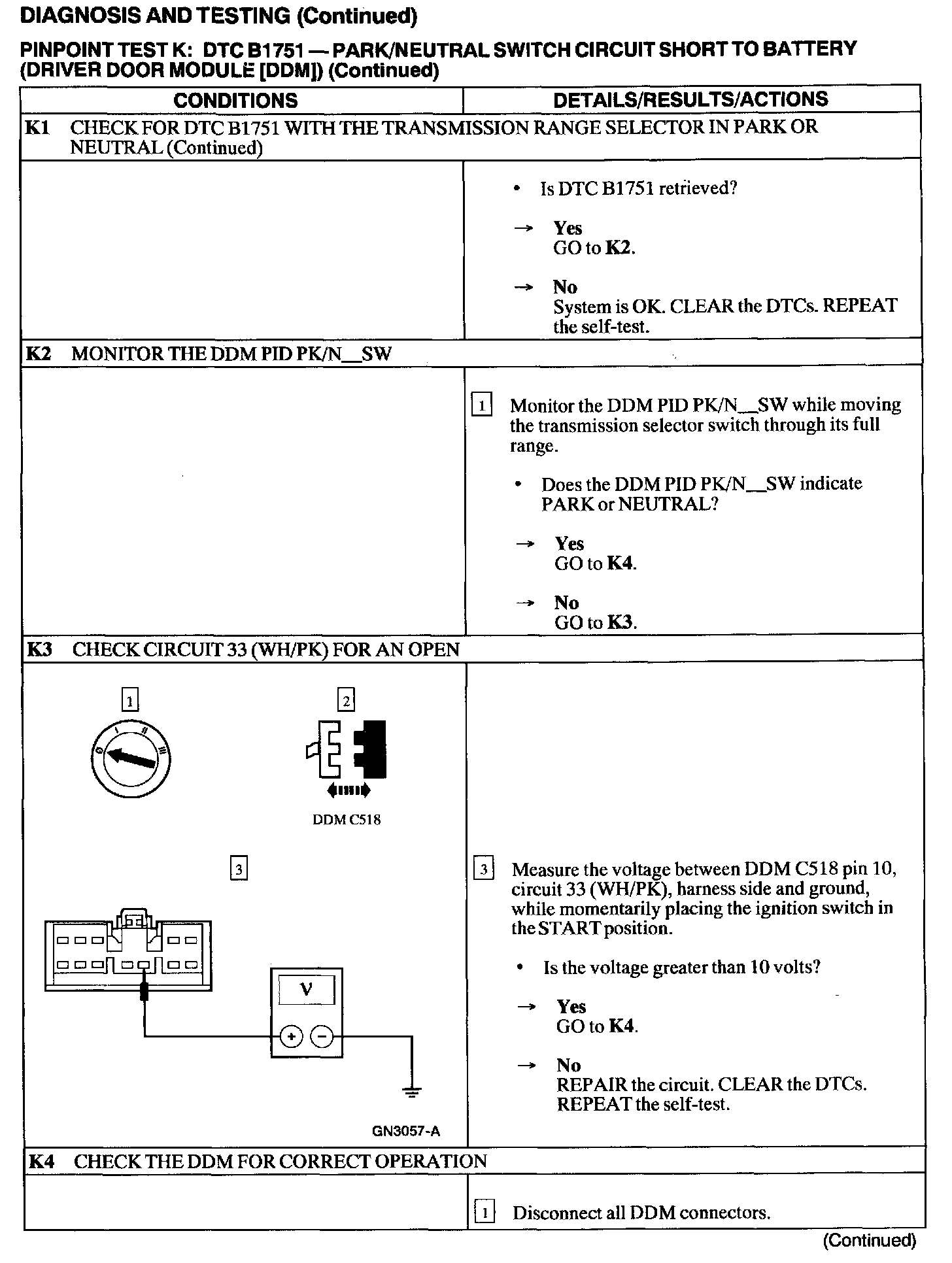

K1 - K4:

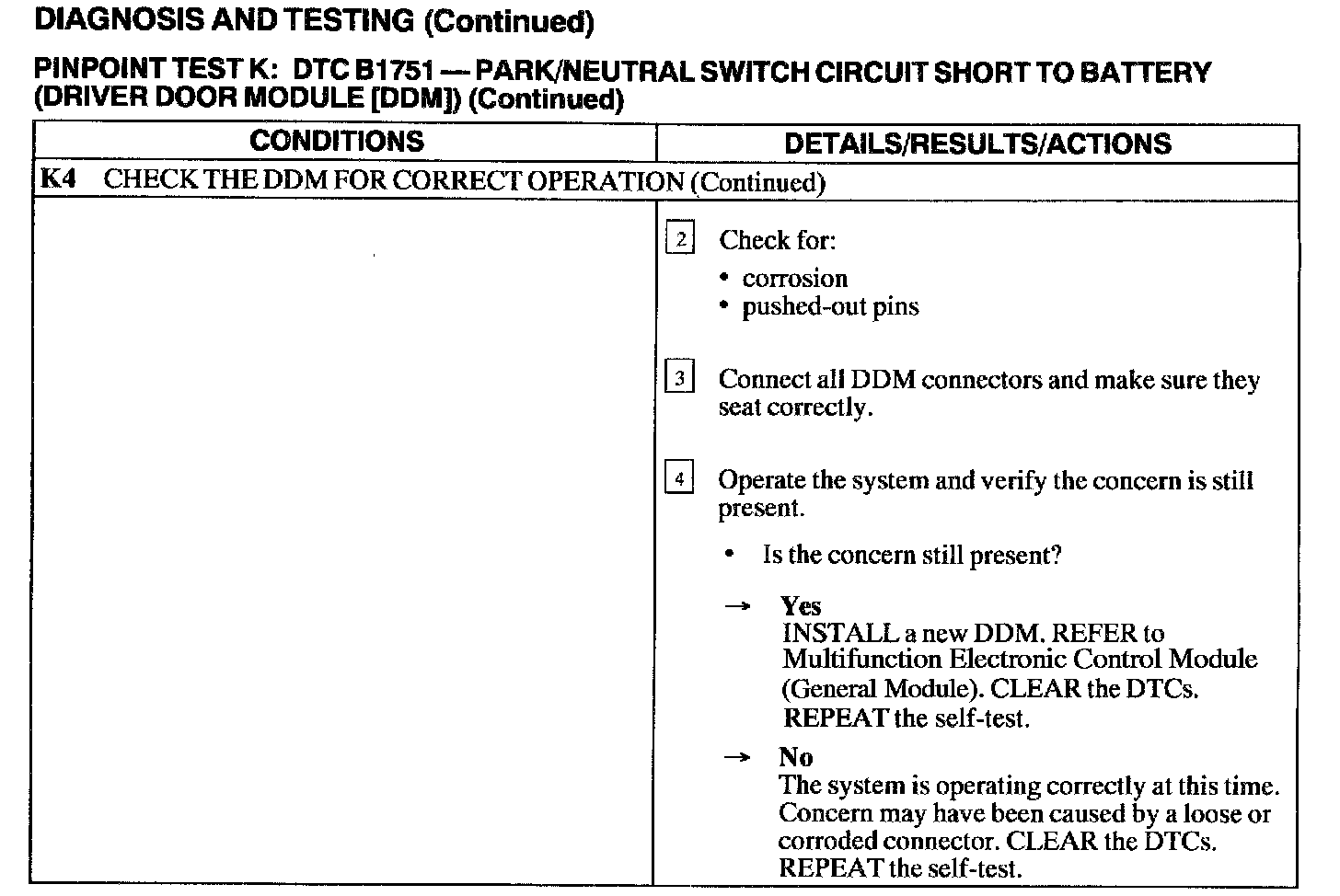

K4:
