Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test J: Panic Feature Is Inoperative/Does Not Operate Correctly

Test J: Panic Feature Is Inoperative/Does Not Operate Correctly

J1 - J2:

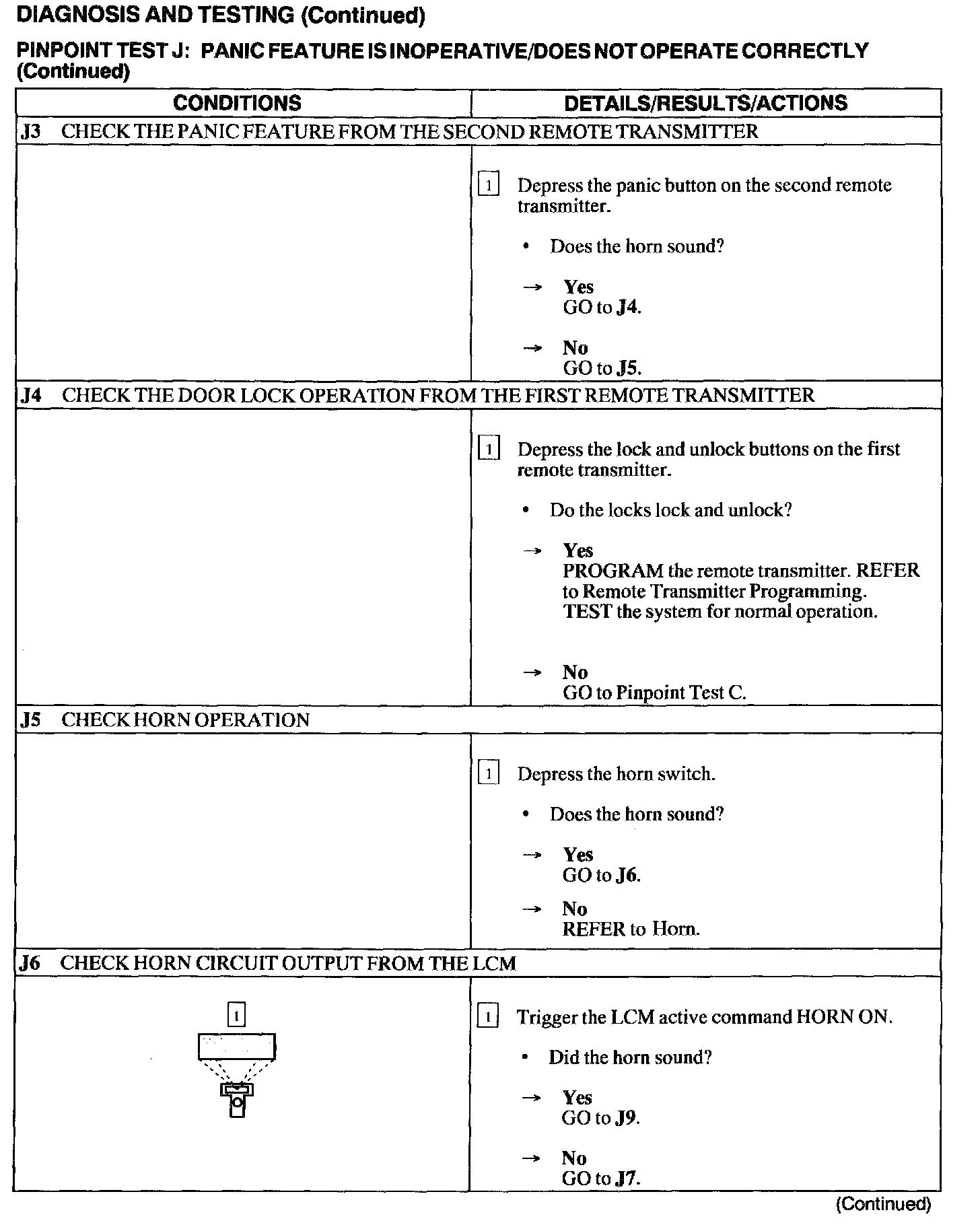

J3 - J6:

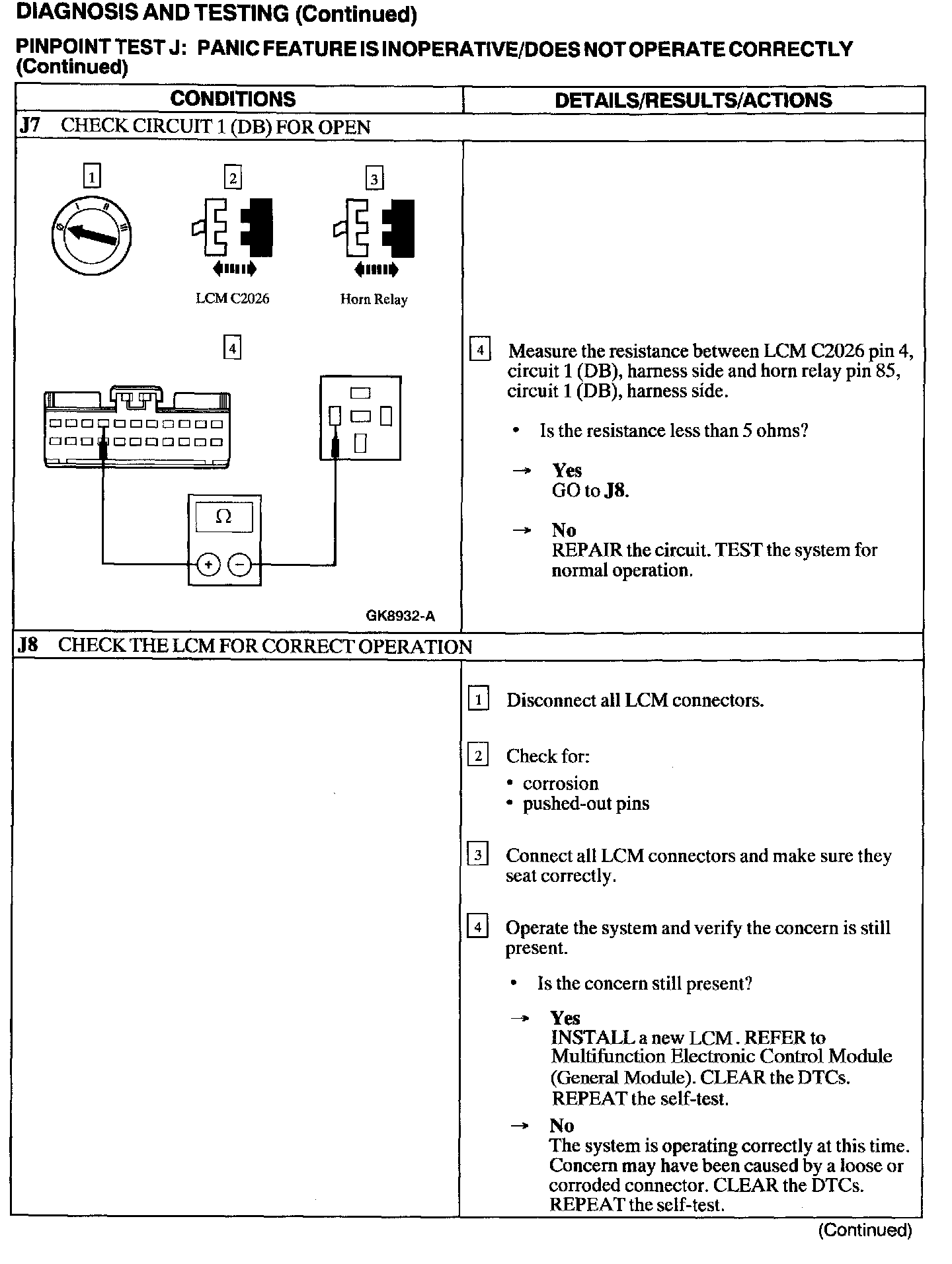

J7 - J8:

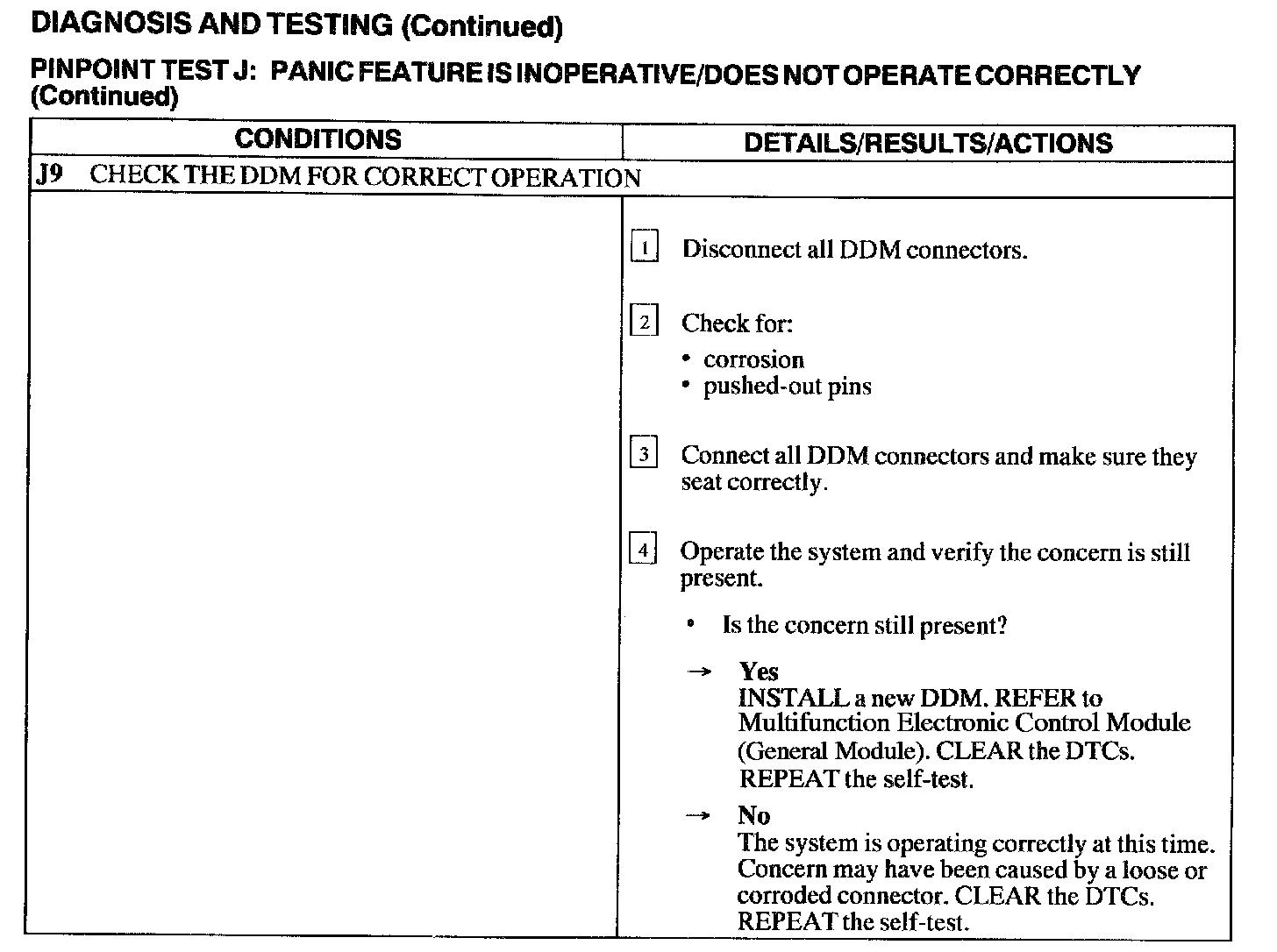

J9:
