Rear Quarter Trim Panel

REAR QUARTER TRIM PANEL

Removal and Installation
1. Remove the rear seat cushion.

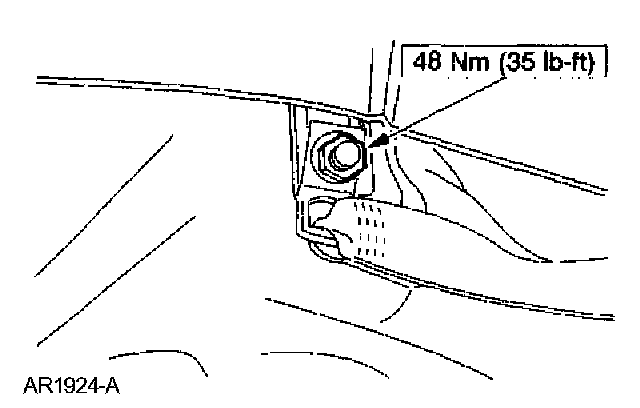

2. Remove the two rear safety belt anchor nuts.
3. Remove the rear seat backrest.







4. Position the rear door weatherstrip aside.

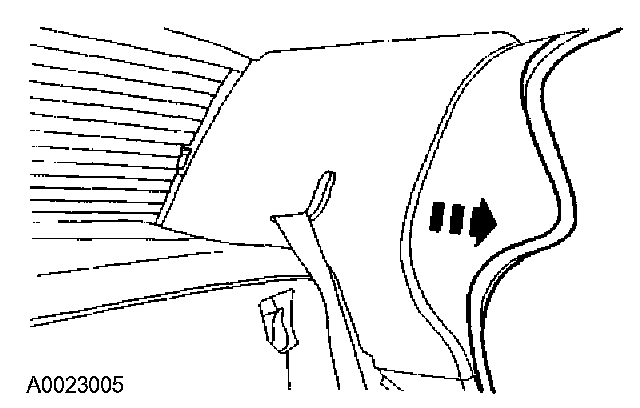

5. Remove the rear quarter trim panel.

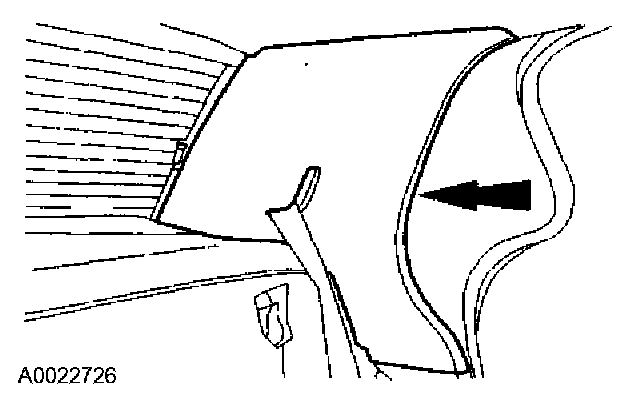

6. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
