B-Pillar Trim Panel

B-PILLAR TRIM PANEL

Removal and Installation

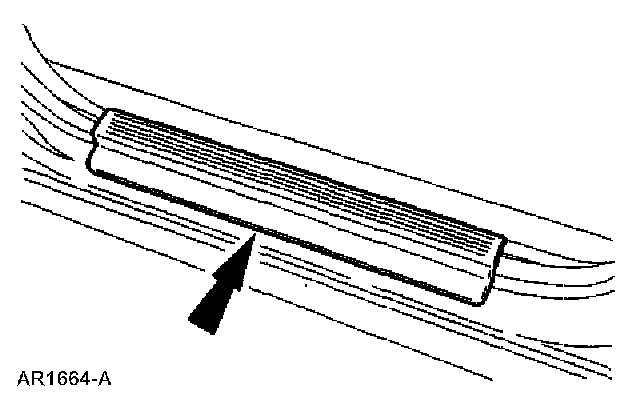

1. Remove the front door scuff plate (13208).

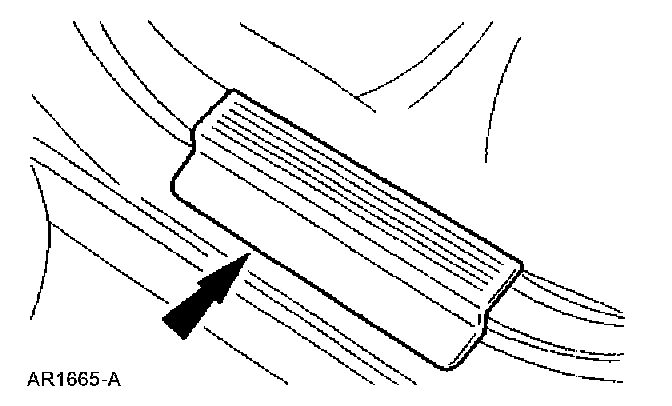

2. Remove the rear door scuff plate.

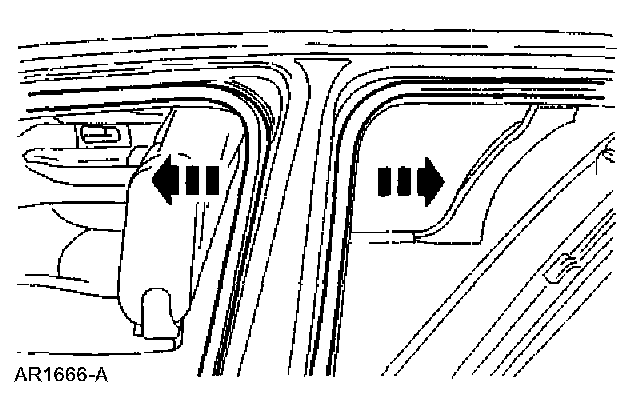

3. Position the front and rear door weatherstrips aside.

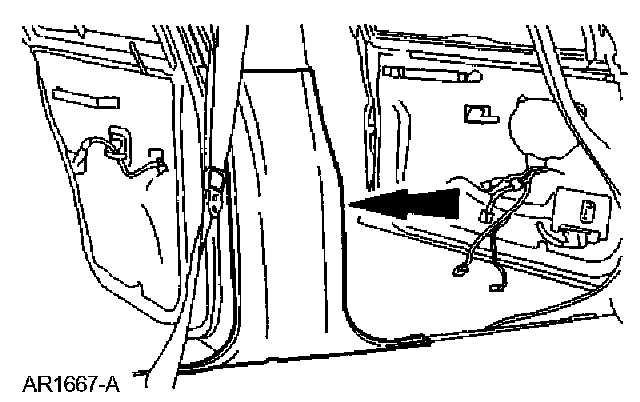

4. Remove the B-pillar lower trim panel.

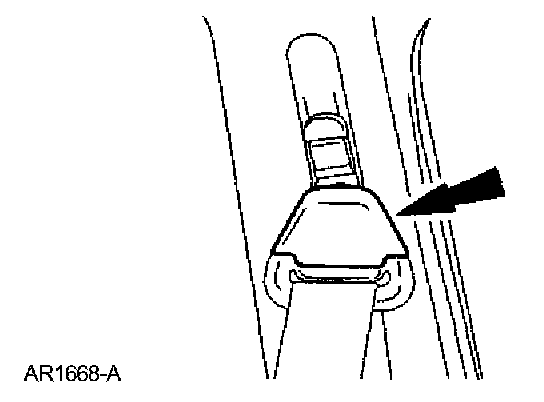

5. Remove the safety belt D-ring cover.

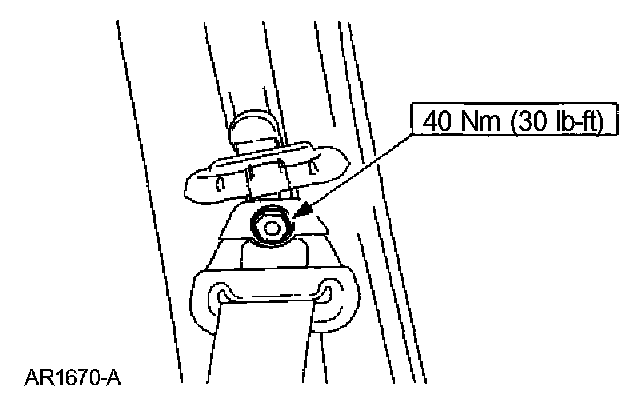

6. Remove the safety belt D-ring nut.

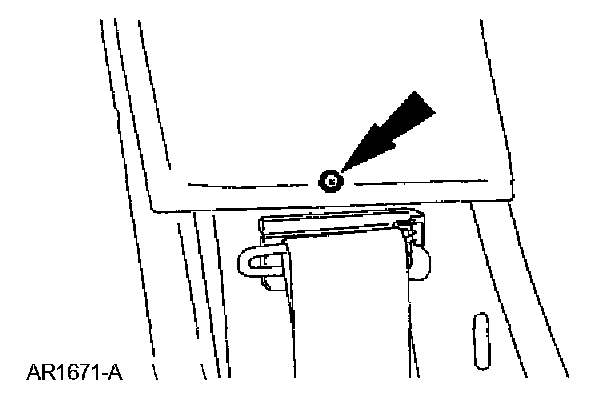

7. Remove the screw and the B-pillar upper trim panel.


8. To install,reverse the removal procedure.
- Check the restraint system for correct operation.
