B-Pillar Trim Panel

REMOVAL







1. Remove the front door scuff plate.







2. Remove the rear door scuff plate.

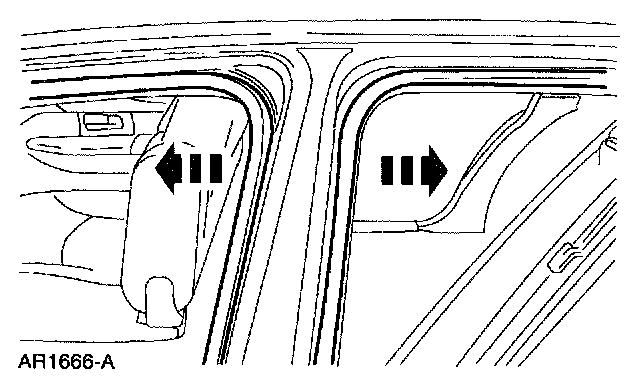

3. Position the front and rear door weatherstrips aside.

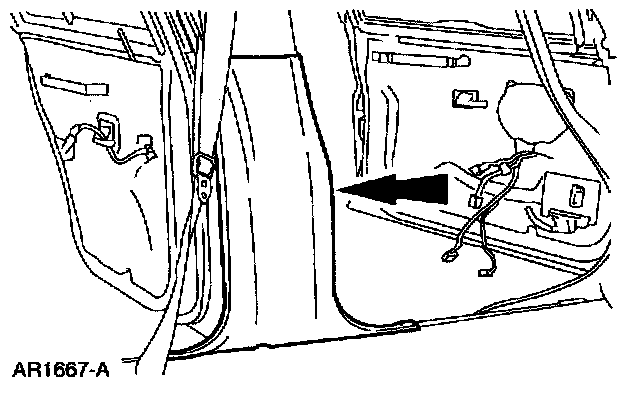

4. Remove the B-pillar lower trim panel.

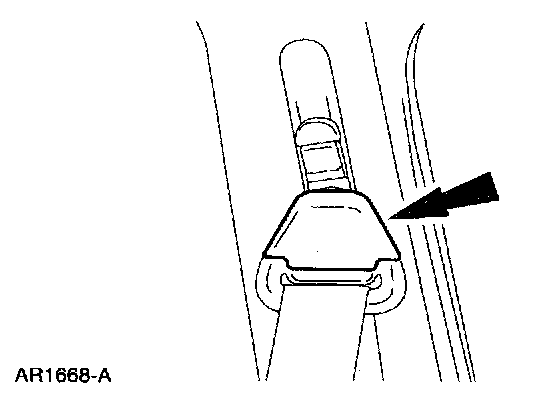

5. Remove the safety belt D-ring cover.

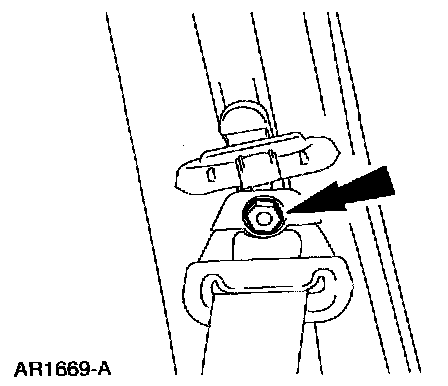

6. Remove the safety belt D-ring nut.

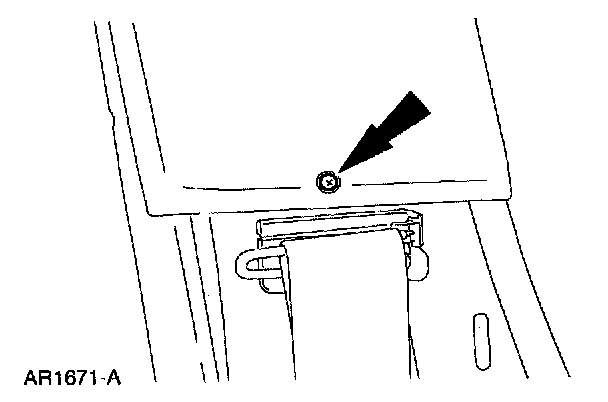

7. Remove the screw and the B-pillar upper trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
