Removal and Replacement

HEADLINER

Removal
1. Remove the front seats.







2. Remove the front door weatherstrips.

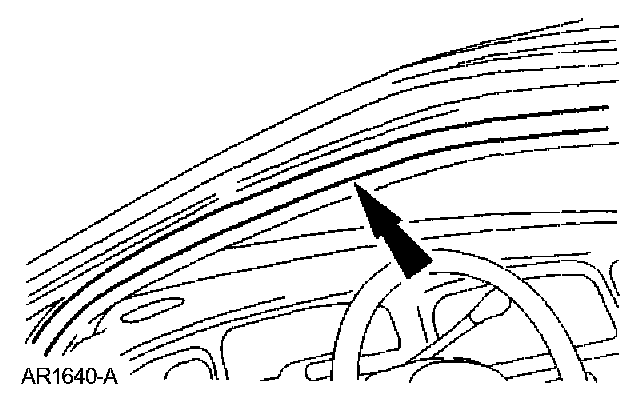

3. Remove the windshield side garnish mouldings (03512).
4. Disconnect the headliner harness electrical connector at the RH C-pillar.

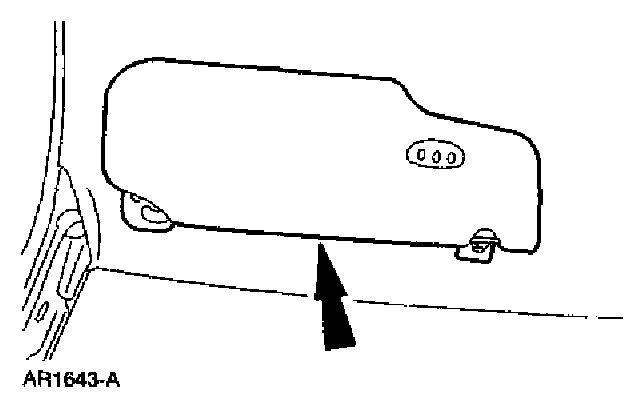

5. Remove the interior sun visors.

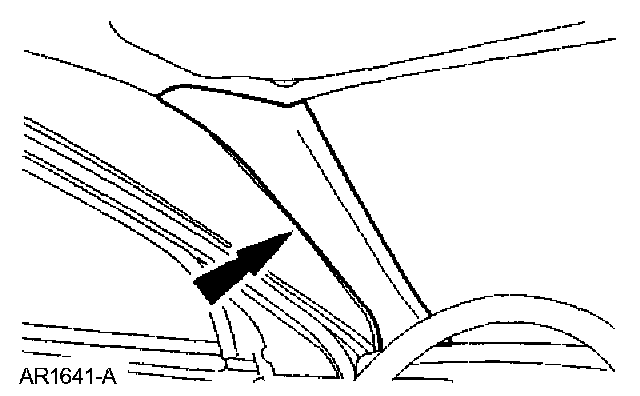

6. Remove the B-pillar trim panel.

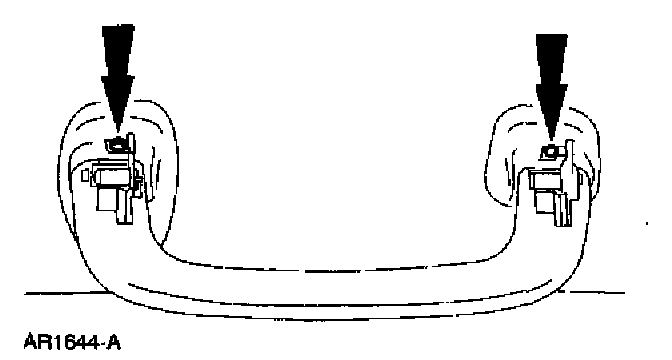

7. Remove the passenger assist handles (31406).
8. Remove the rear quarter trim panel.

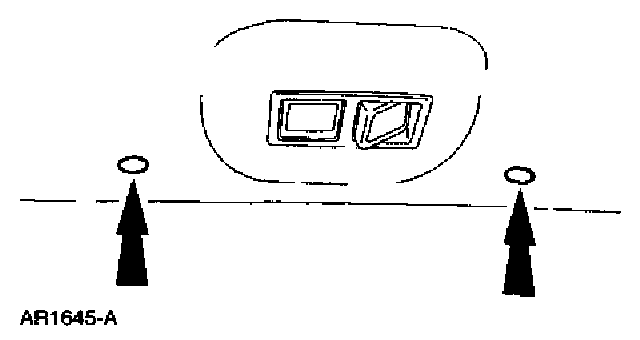

9. Remove the pin-type retainers.


10. NOTE: Pull down sides of headliner above the door openings to expose adhesive beads.

Using a hot knife or wide-blade putty knife, cut adhesive beads lengthwise across the headliner.

11. NOTE: A new headliner must be installed if the headliner is folded in half for removal.

Remove the headliner through the front door opening.

12. Clean any remaining adhesive from the roof sheet metal.

Installation

1. NOTE: A new headliner will need to be installed if it is folded during removal or installation.

To install, reverse the removal procedure.
- Apply adhesive to the headliner using the existing pattern.
