Procedures

REMOVAL
1. Remove the front seats.

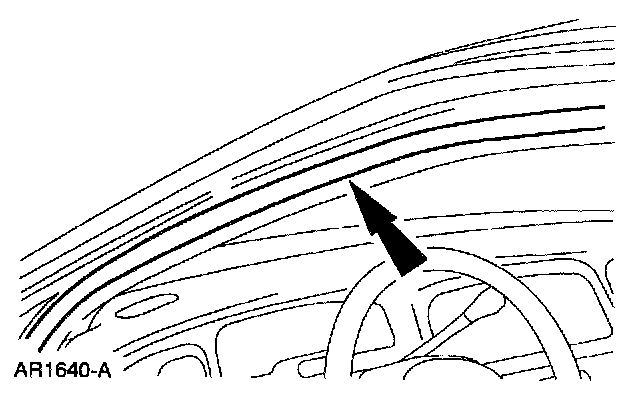

2. Remove the front door weatherstrips.

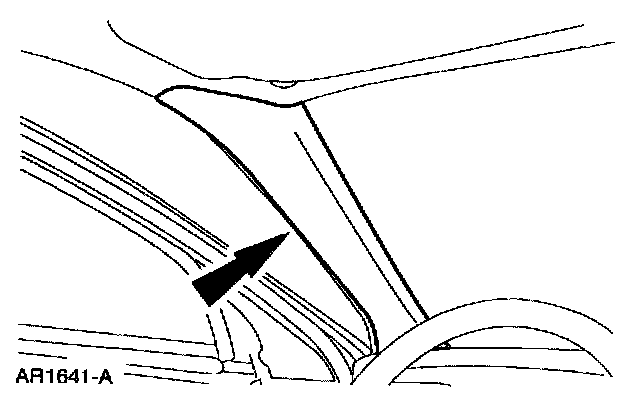

3. Remove the windshield side garnish mouldings.
4. Disconnect the headliner harness electrical connector at the RH C-pillar.

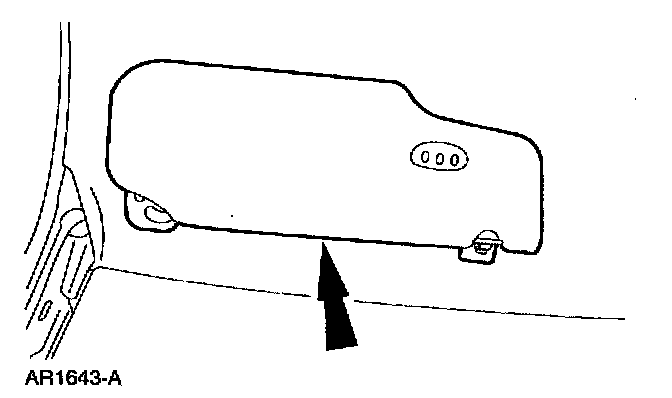

5. Remove the interior sun visors.
6. Remove the B-pillar trim panel.







7. Remove the passenger assist handles.
8. Remove the rear quarter trim panel.

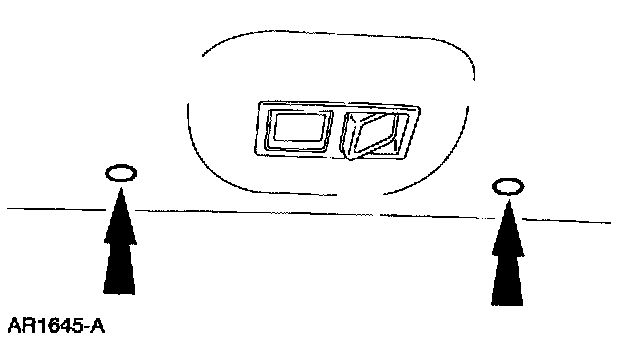

9. Remove the pin-type retainers.
10. Using a hot knife or wide-blade putty knife, cut adhesive beads lengthwise across the headliner.

NOTE: Pull down sides of headliner above the door openings to expose adhesive beads.

11. Remove the headliner through the front door opening.

NOTE: A new headliner must be installed if the headliner is folded in half for removal.

12. Clean any remaining adhesive from the roof sheet metal.

INSTALLATION
1. To install, reverse the removal procedure.
- Apply adhesive to the headliner using the existing pattern

NOTE: A new headliner will need to be installed if it is folded during removal or installation.
