Installation
INSTALLATIONCAUTION: Electronic modules are sensitive to static electrical charges. Avoid exposing any modules to static electrical charges, as this may cause damage to the modules.

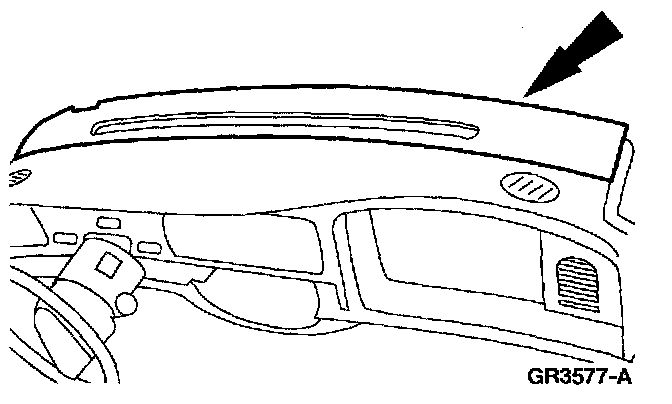

1. Install the instrument panel into the vehicle.
NOTE:
- Two technicians are needed to carry out this step.
- Feed the LH wiring harness through the dash panel while carrying out this step.

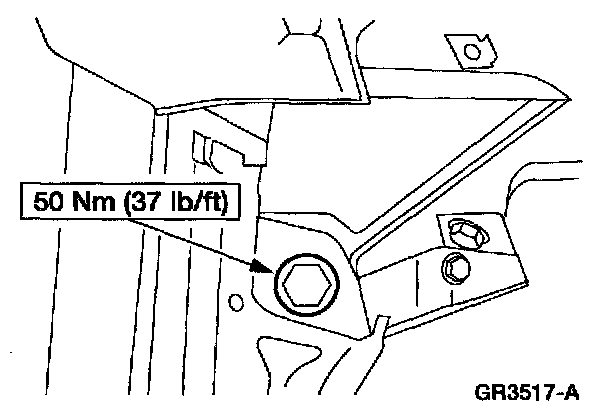

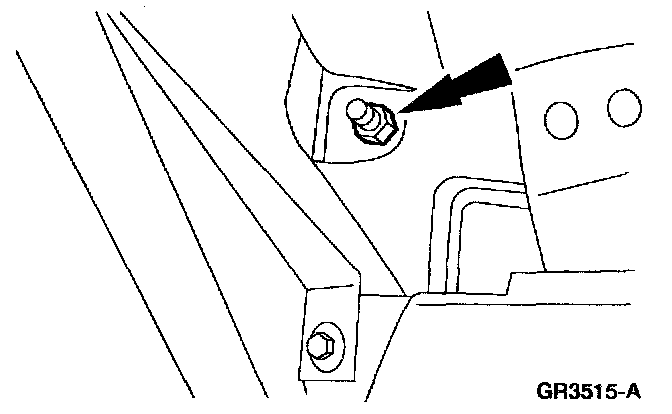

2. Install the lower LH instrument panel cowl side bolt.
3. Install the upper LH instrument panel cowl side nut.
4. Install the RH instrument panel cowl side nut.

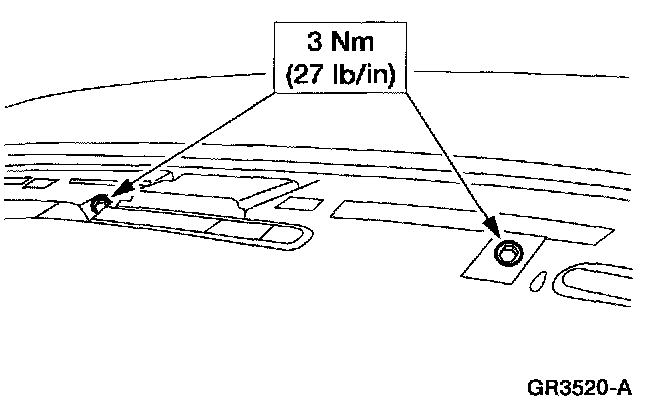

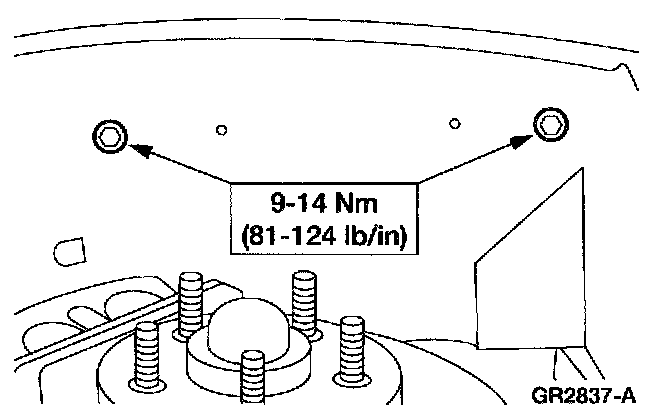

5. Install the three instrument panel cowl top screws.
6. Install the defroster opening grille.
- If equipped, connect the electrical connectors.

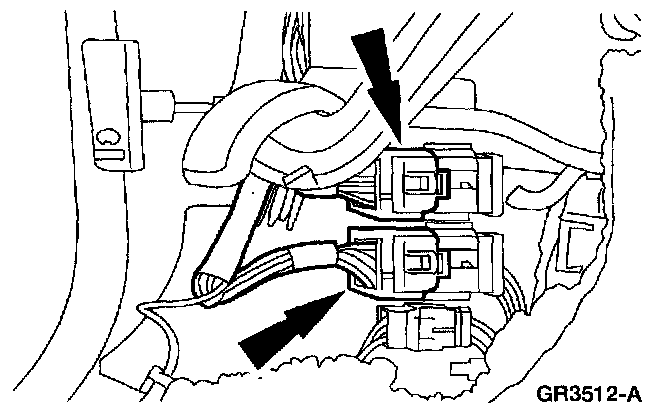

7. Connect the LH wiring harness connectors.

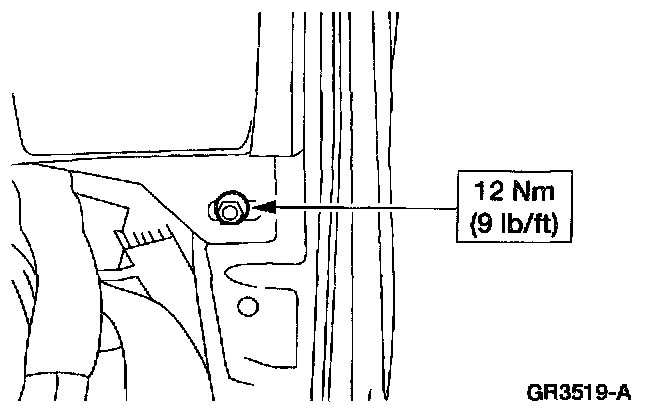

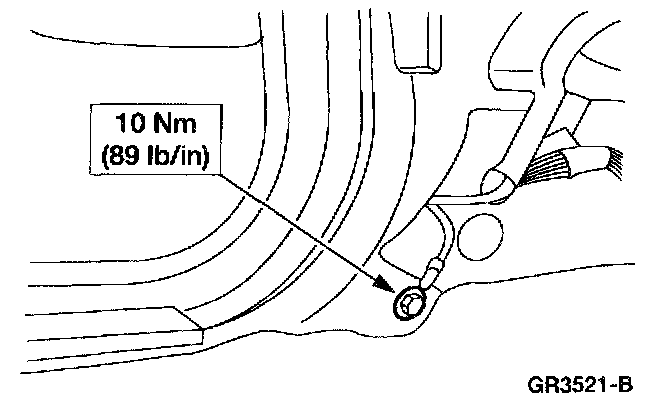

8. Install the LH ground bolt.

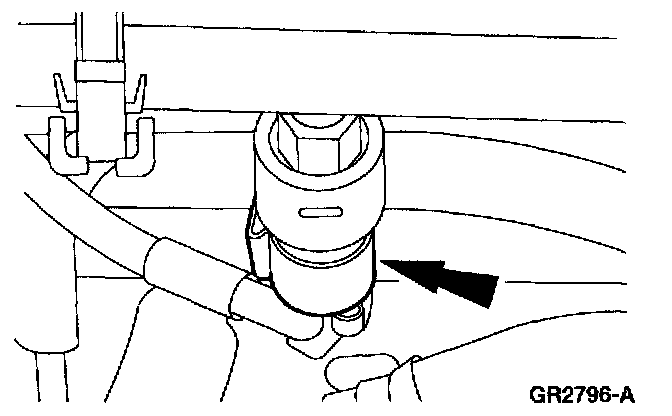

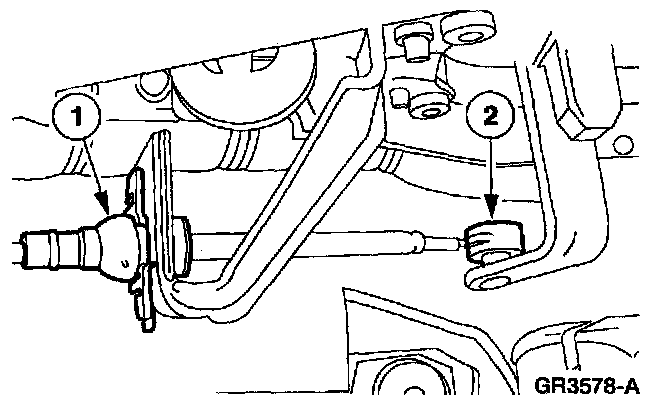

9. Connect the transmission shift cable to the steering column.
1 Connect the cable to the steering column bracket.
2 Connect the cable to the steering column shift tube lever.

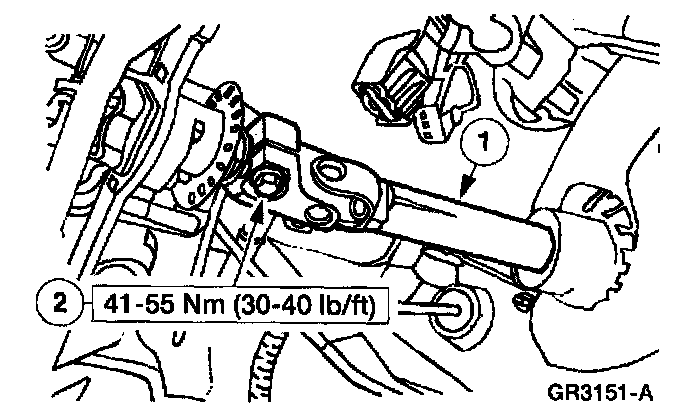

10. Connect the intermediate shaft to the steering column shaft.
1 Connect the intermediate shaft to the steering column shaft.
2 Install a new pinch bolt.

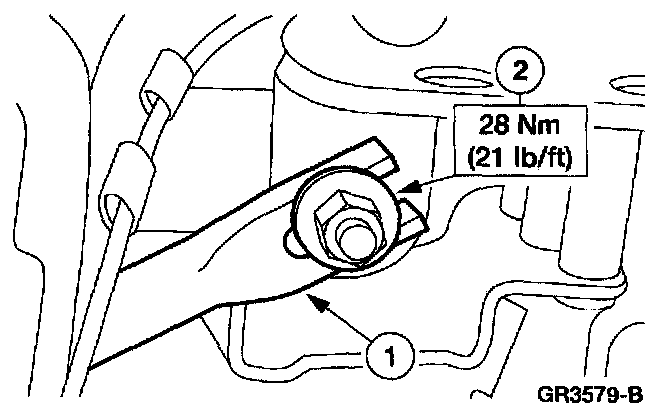

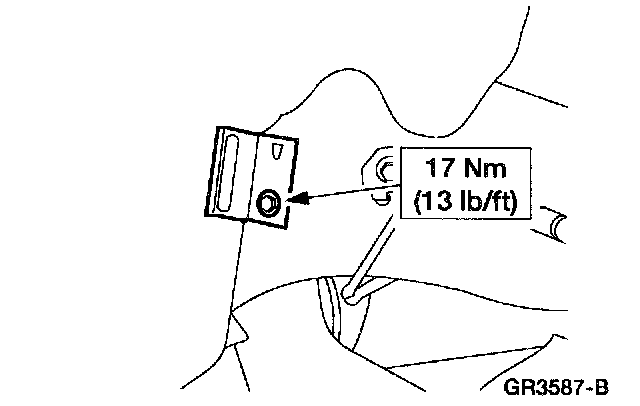

11. Install the steering column brace.
1 Position the steering column brace.
2 Install the nut.

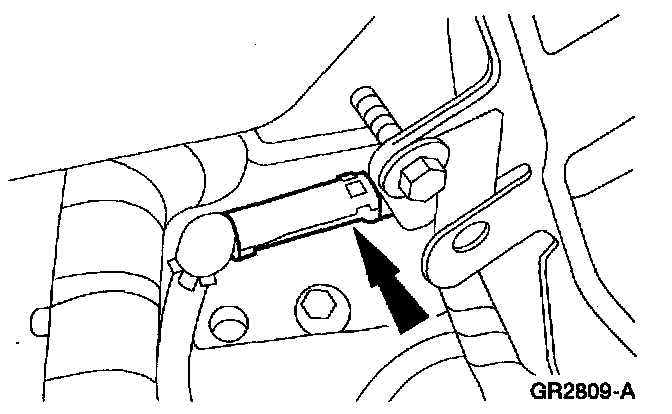

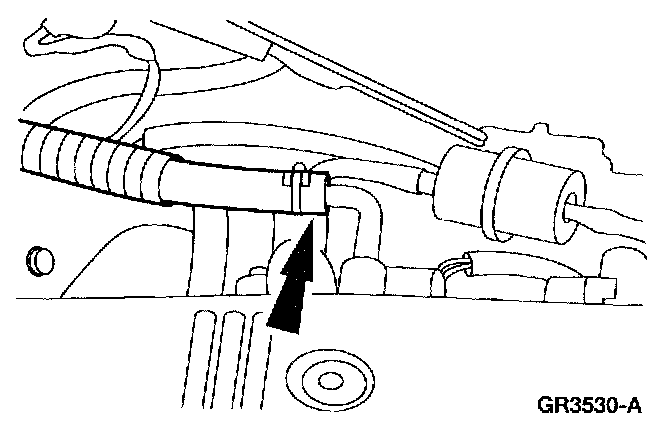

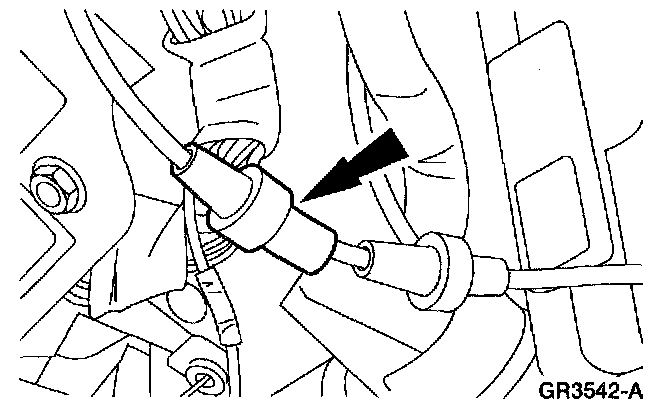

12. Connect the vacuum connector.
13. Connect the parking brake release vacuum connector.

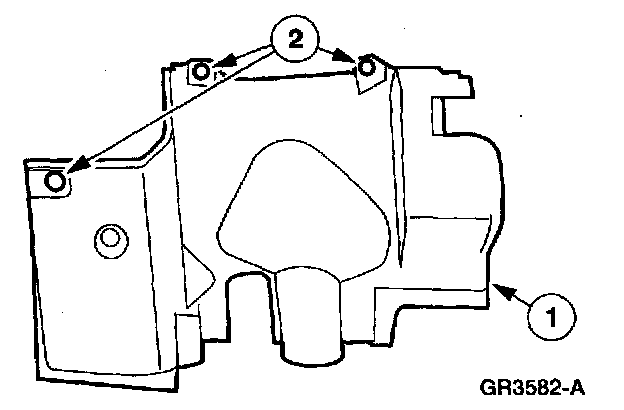

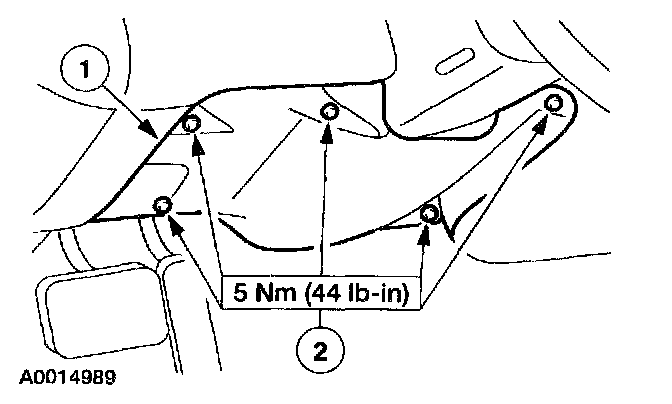

14. Install the instrument panel steering column opening cover reinforcement.
1 Position the instrument panel steering column opening cover reinforcement.
2 Install the bolts.

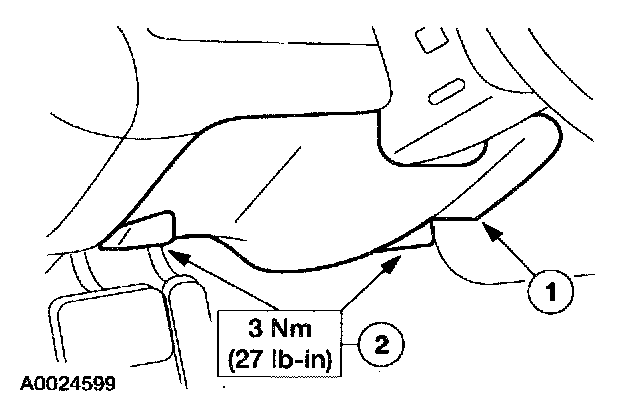

15. Install the instrument panel lower steering column cover.
1 Position the instrument panel lower steering column cover.
2 Install the screws.

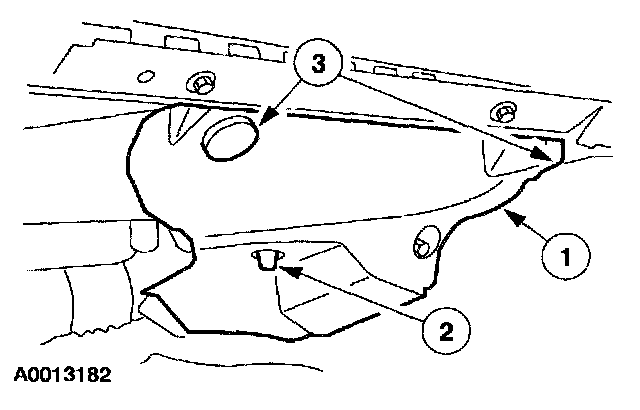

16. Install the LH instrument panel insulator.
1 Position the LH instrument panel insulator.
2 Install the pin-type retainers.
- Connect the courtesy lamp.

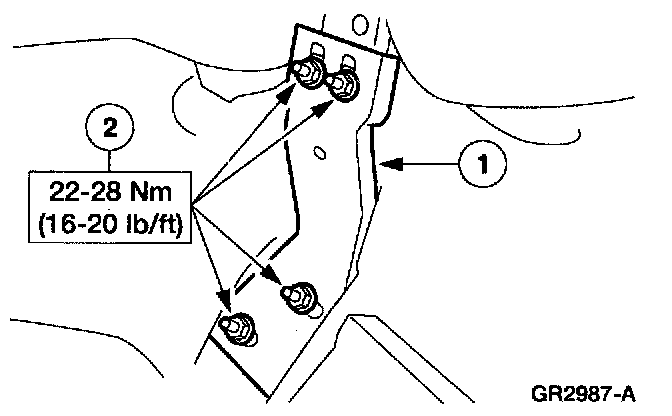

17. Install the instrument panel tunnel brace.
1 Position the instrument panel tunnel brace.
2 Install the nuts.

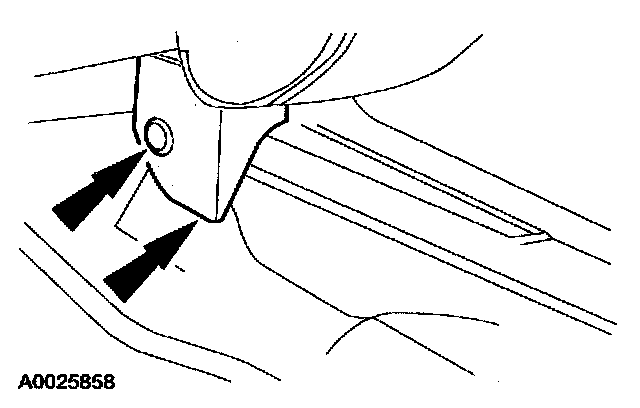

18. Position the instrument panel tunnel brace cover and install the pin-type retainer.

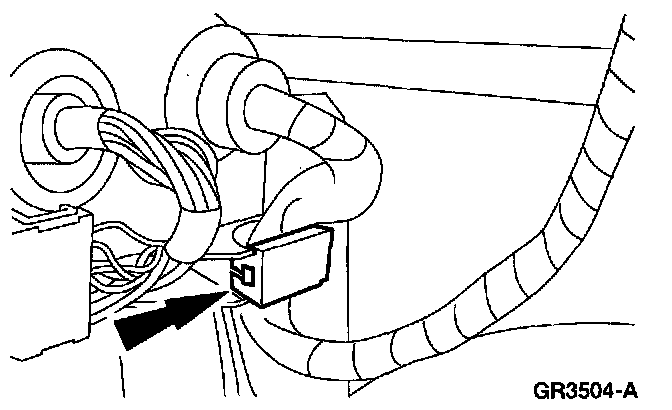

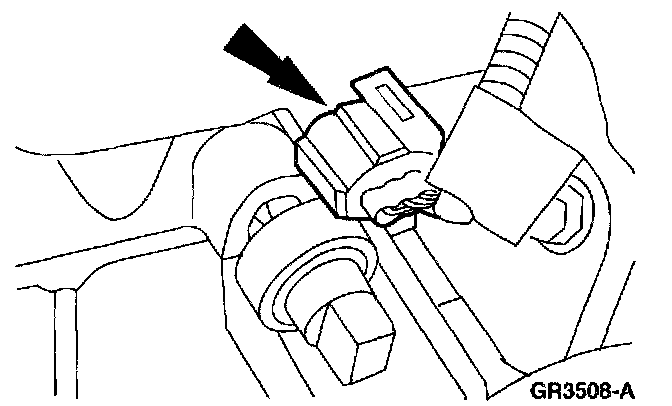

19. Connect the climate control head vacuum harness connector.

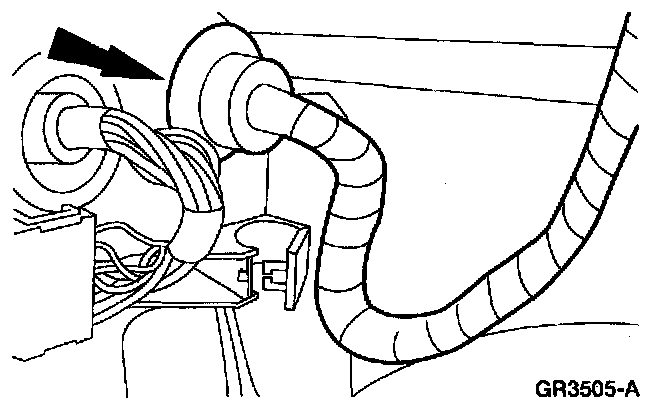

20. Feed the RH wiring harness through the dash panel and seat the wiring grommet.

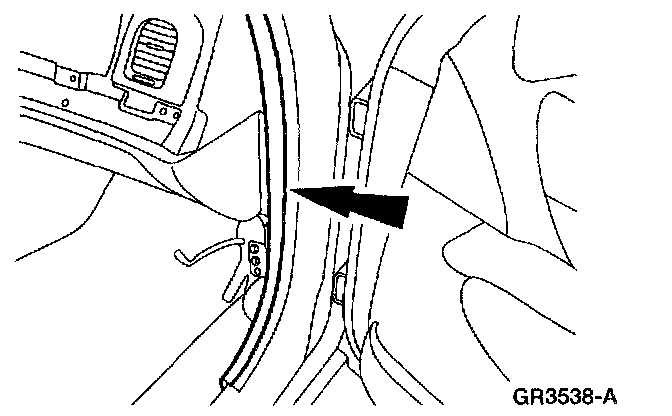

21. Install the LH and RH door weatherstrip seals.

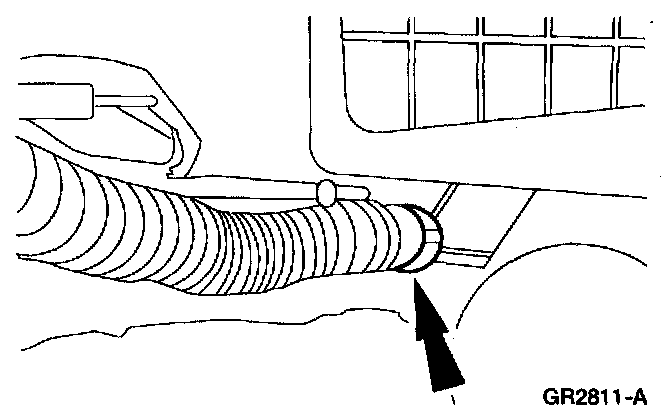

22. If equipped, connect the EATC hose to the evaporator housing.

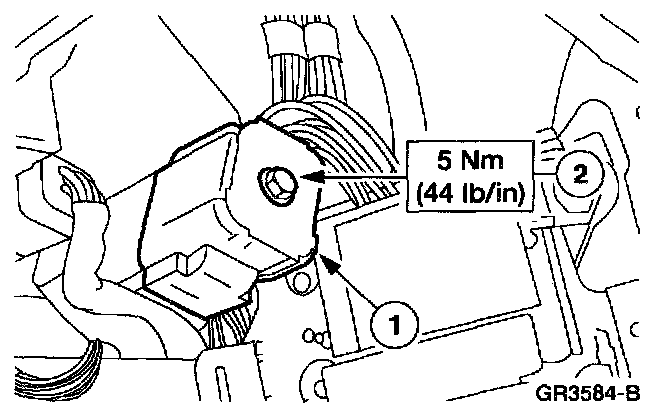

23. Connect the RH bulkhead electrical connector.
1 Connect the RH bulkhead electrical connector.
2 Tighten the bolt.

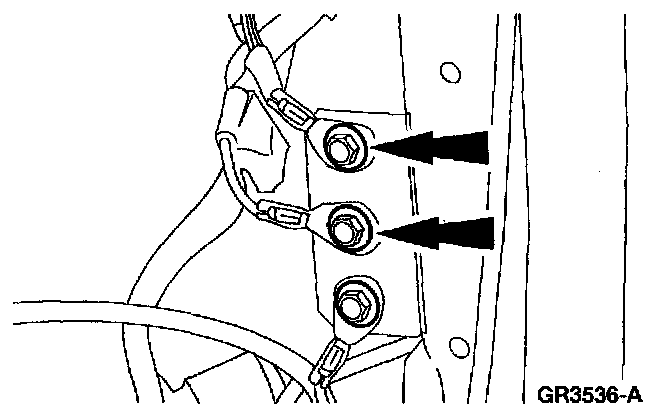

24. Install the RH ground bolts.

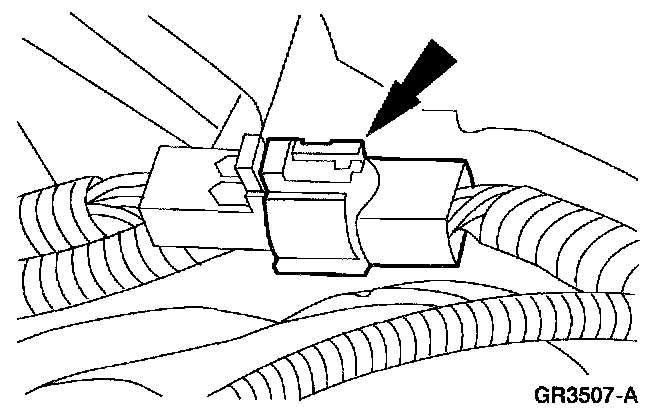

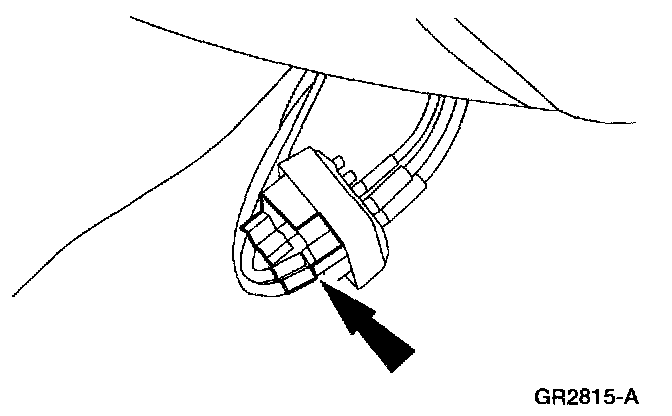

25. Connect the antenna cable in-line connector.

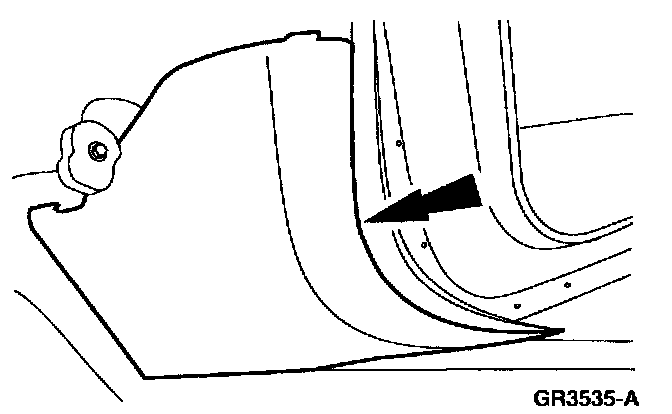

26. Install the LH and RH A-pillar lower trim panels.

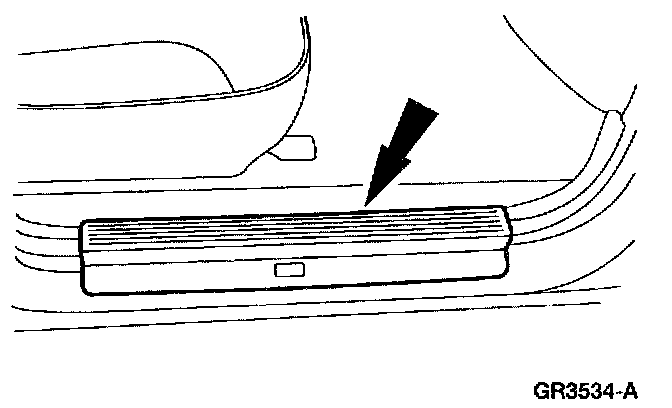

27. Install the LH and RH scuff plates.
28. Install the RH instrument panel lower insulator.
1 Position the RH instrument panel lower insulator.
2 Engage the locking tab.
3 Install the pin-type retainers.
- Connect the courtesy lamp.
29. Remove the RH front wheel and tire assembly.
30. Lock the RH wiring harness into the guide.
31. Install the upper fender splash shield. Install the bolts.
32. Install the lower fender splash shield locator and bolt.
33. Install the RH front wheel and tire assembly.
34. Connect the blower motor controller electrical connector.
- Engage the wiring harness locators.

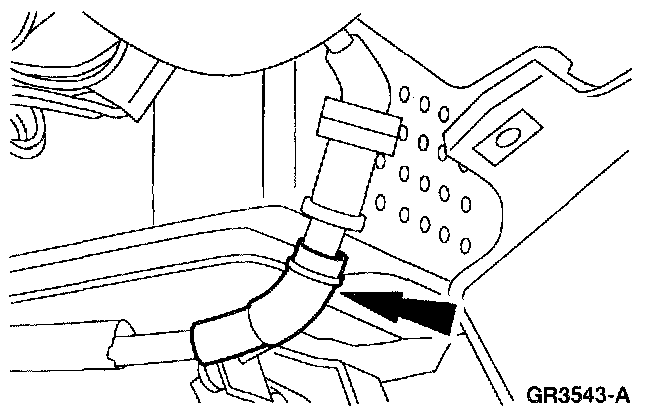

35. Connect the vacuum line to the intake manifold.

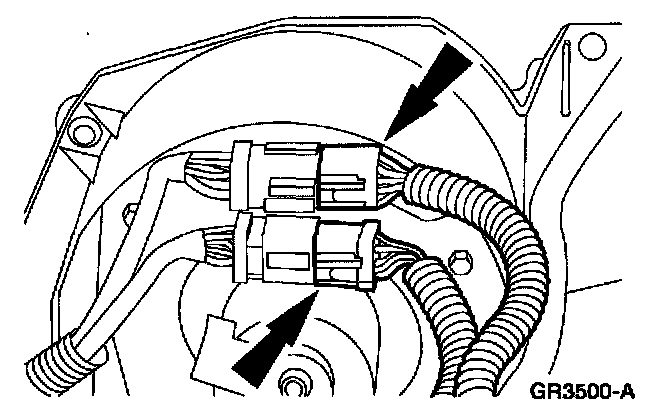

36. Connect the RH engine compartment in-line wiring harness connectors.
37. Connect the A/C pressure cut-off switch electrical connector.

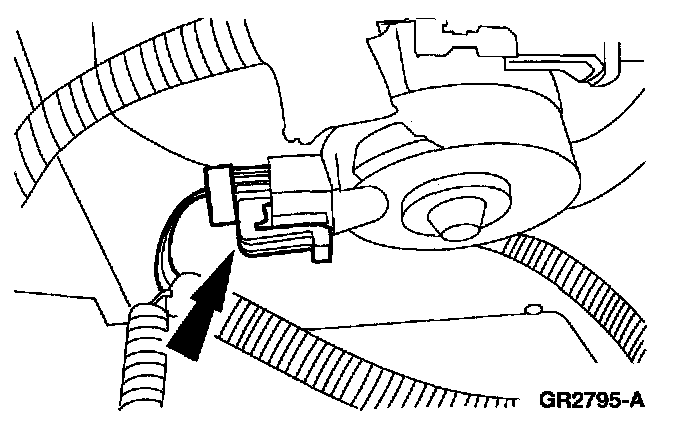

38. Connect the blower motor electrical connector.
39. Seat the LH wiring harness grommet.
40. Connect the LH engine compartment in-line electrical connectors.
41. Connect the windshield wiper motor electrical connector.
- Engage the wiring harness locators.

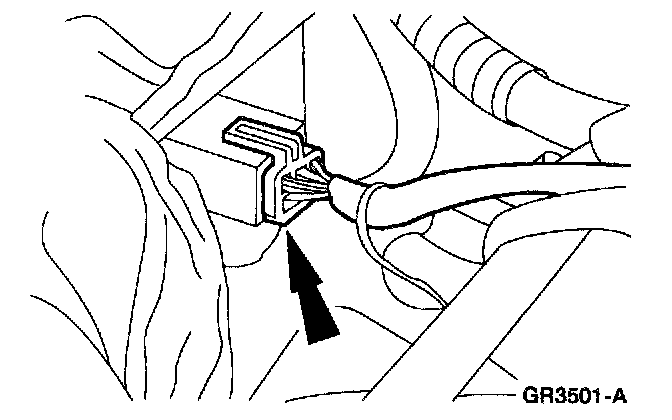

42. Connect the brake fluid sensor electrical connector.
43. Connect the LH engine compartment in-line electrical connector.
- Engage the wiring harness locators.
44. Install the speed control servo.
1 Position the speed control servo.
2 Install the nuts.
3 Connect the electrical connector.
45. Install the driver air bag module.
46. Install the passenger air bag module.
