Rear Door Panel: Service and Repair

TRIM PANEL-REAR DOOR

Removal

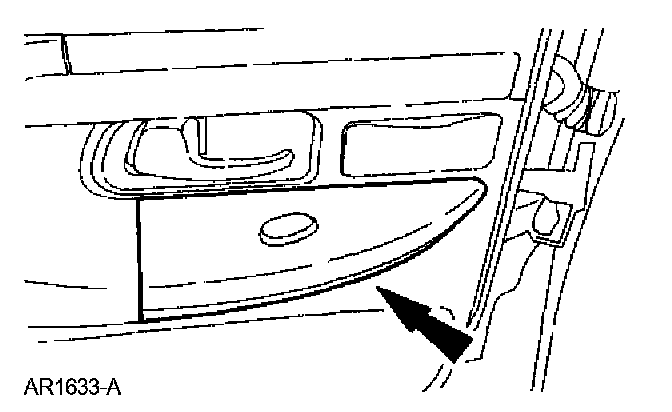

1. NOTE: Use care not to damage the trim panel when removing the screws.

Remove the window regulator control switch plate.

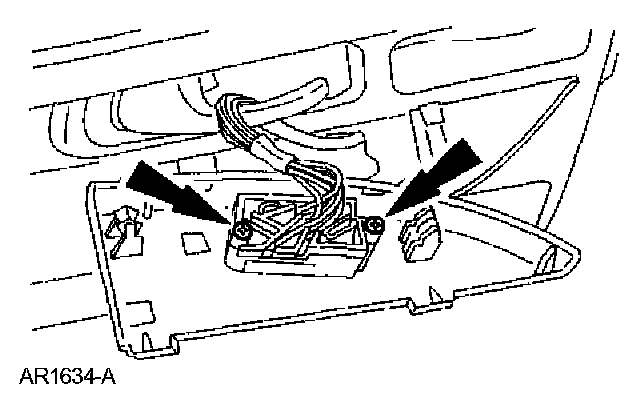

2. Remove the screws and the regulator control switch plate.

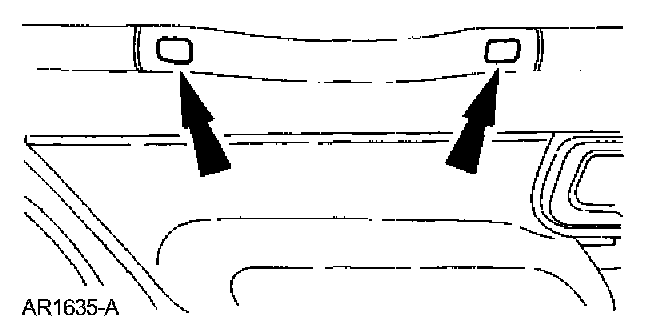

3. Remove the screw covers.

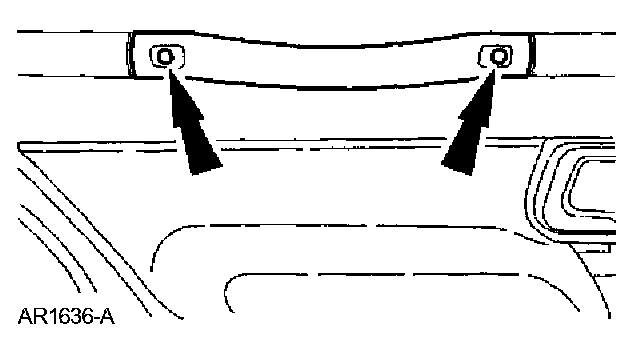

4. Remove the screws.

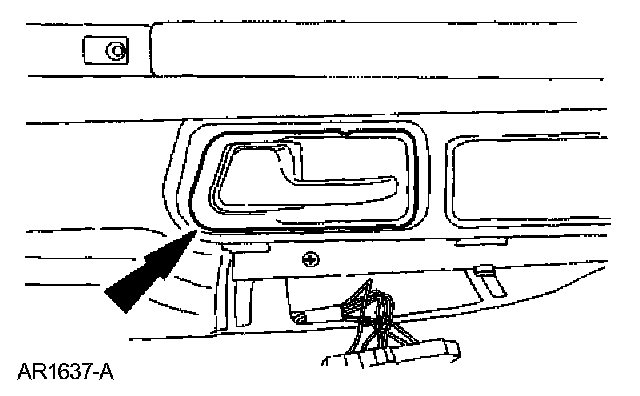

5. Remove the interior door handle cup (22896).

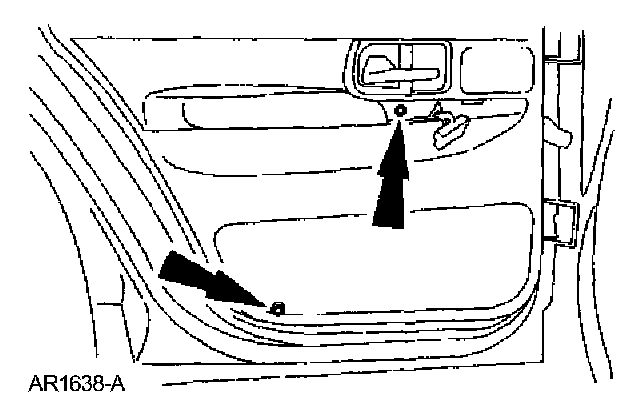

6. Remove the screws.

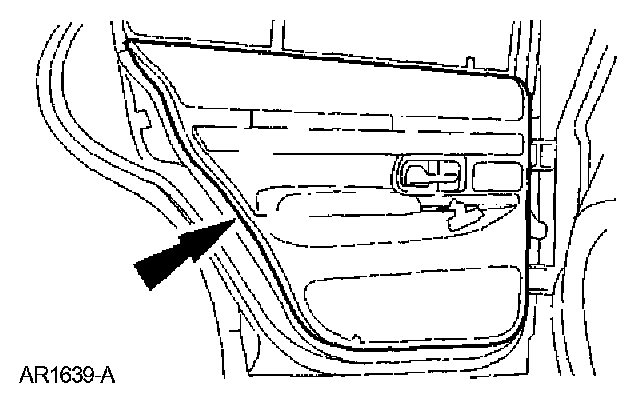

7. Remove the rear door trim panel (27406).

Installation
1. To install, reverse the removal procedure.
