Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test D: Noisy Reception

Test D: Noisy Reception

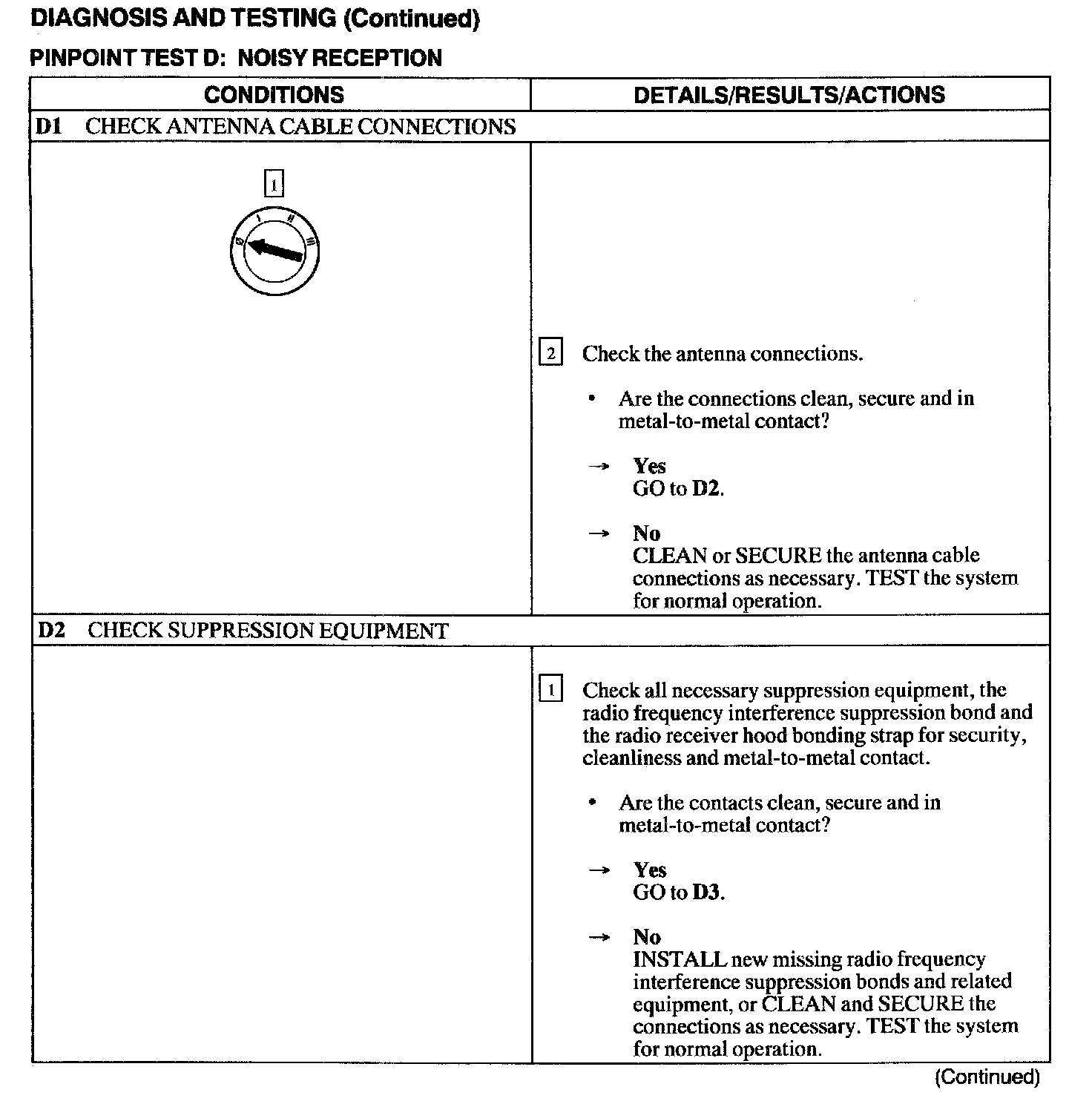

D1 - D2:

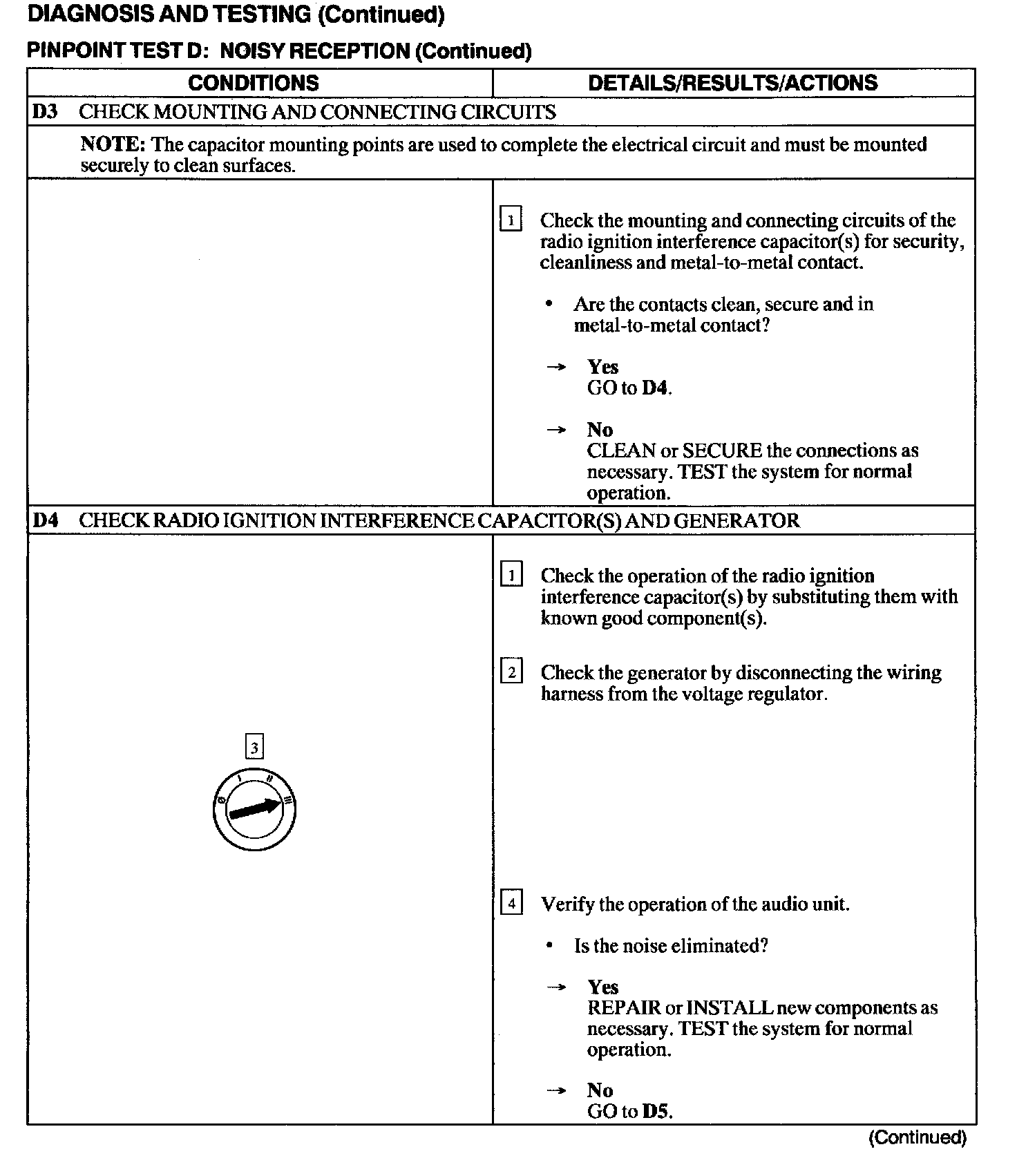

D3 - D4:

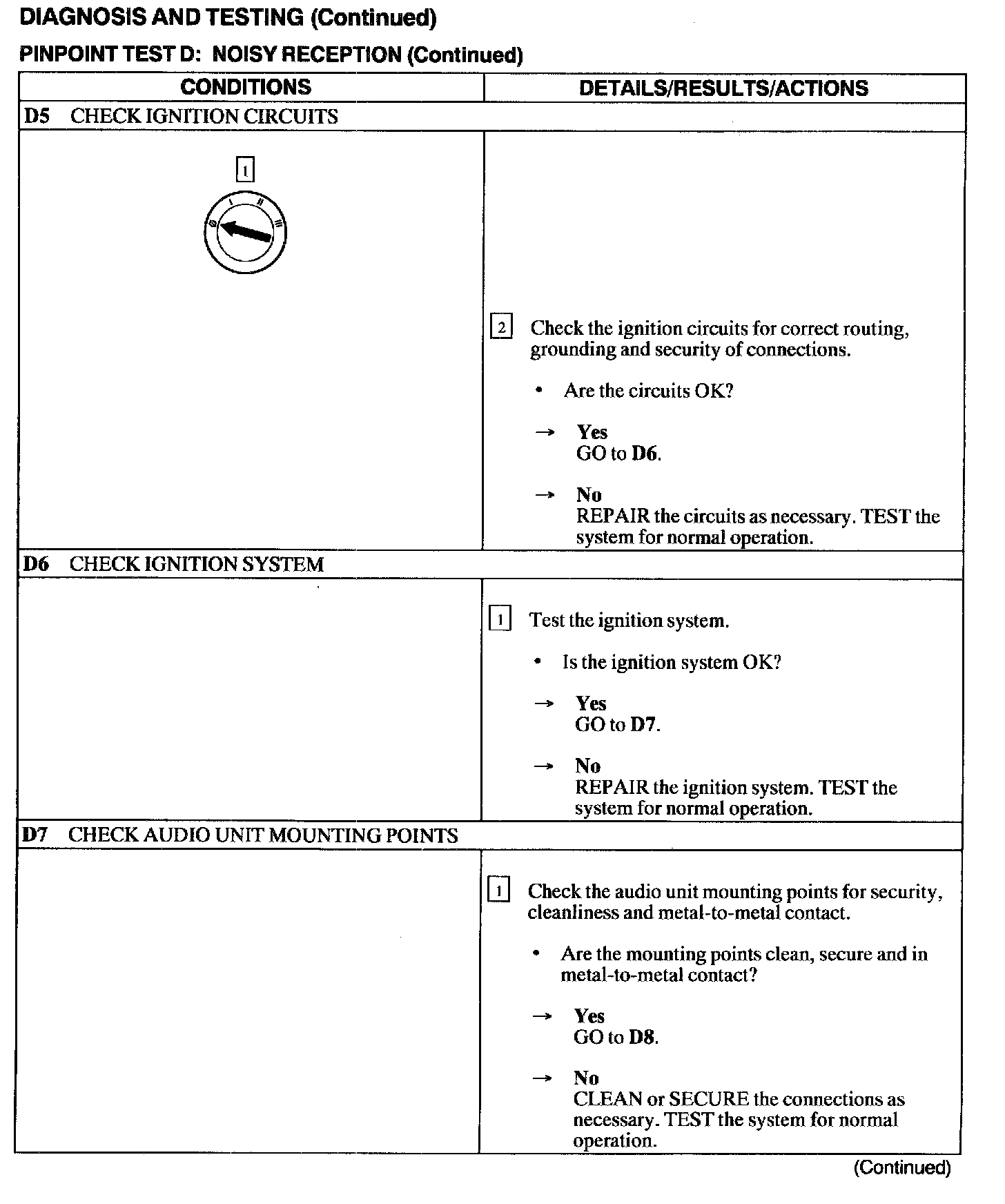

D5 - D7:

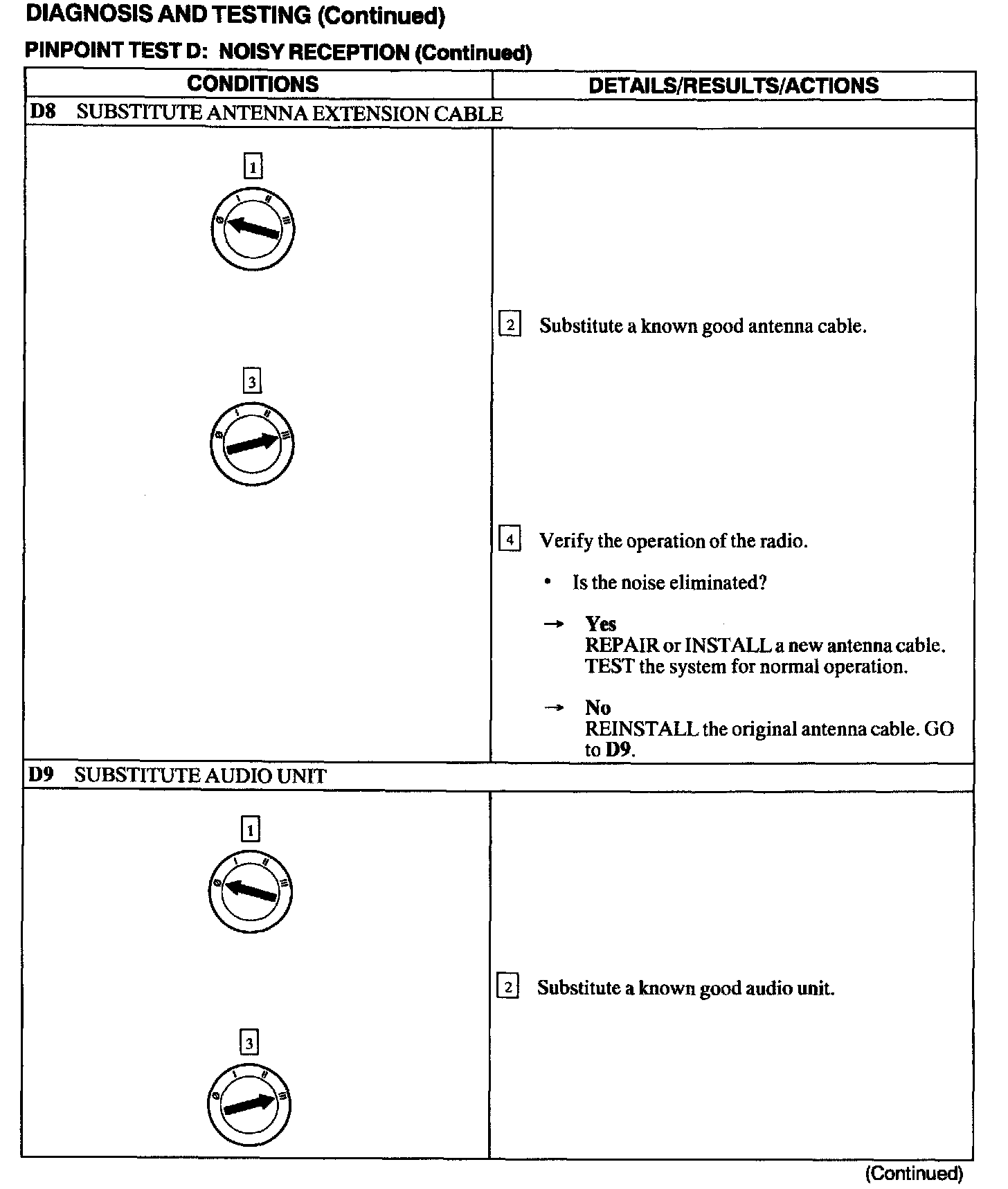

D8 - D9:

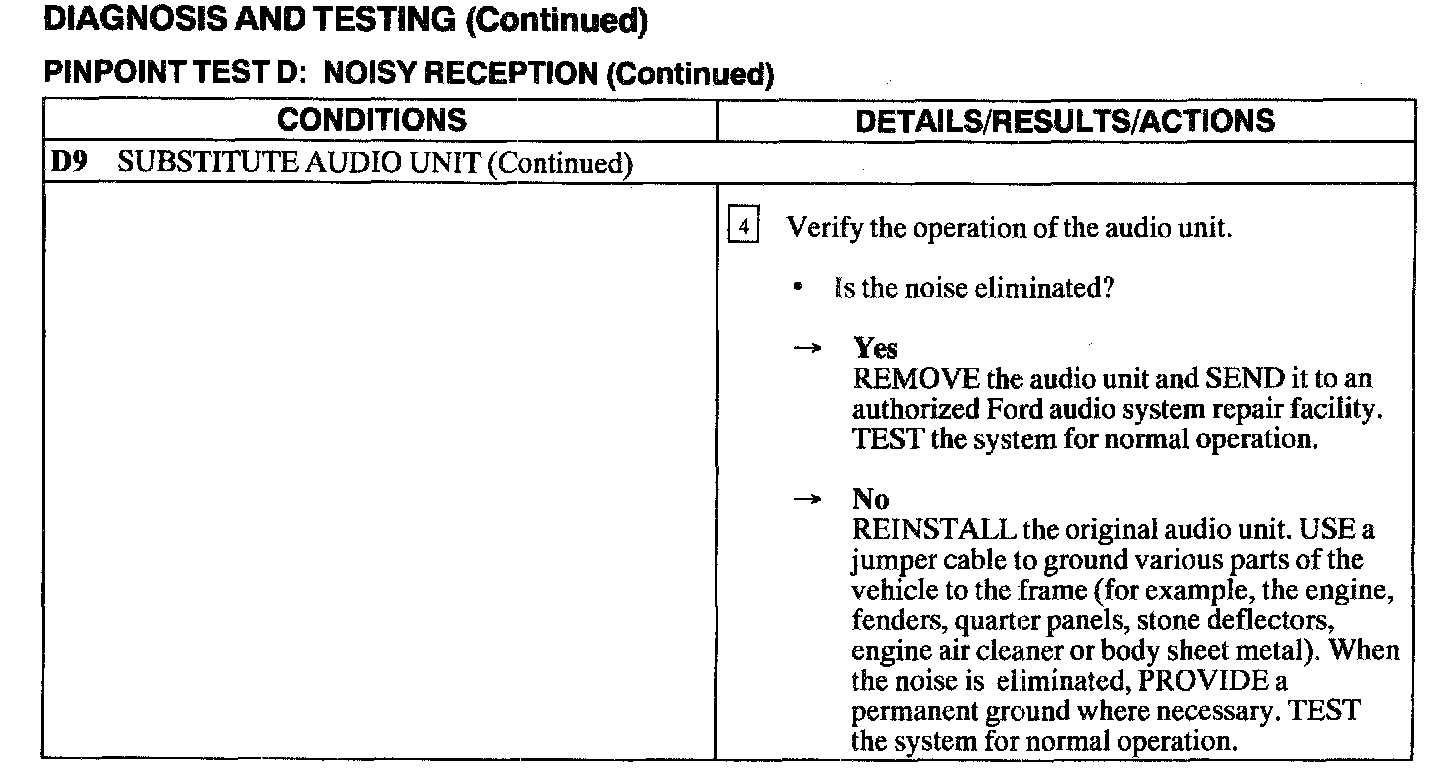

D9:
