Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams

Electrical Diagrams

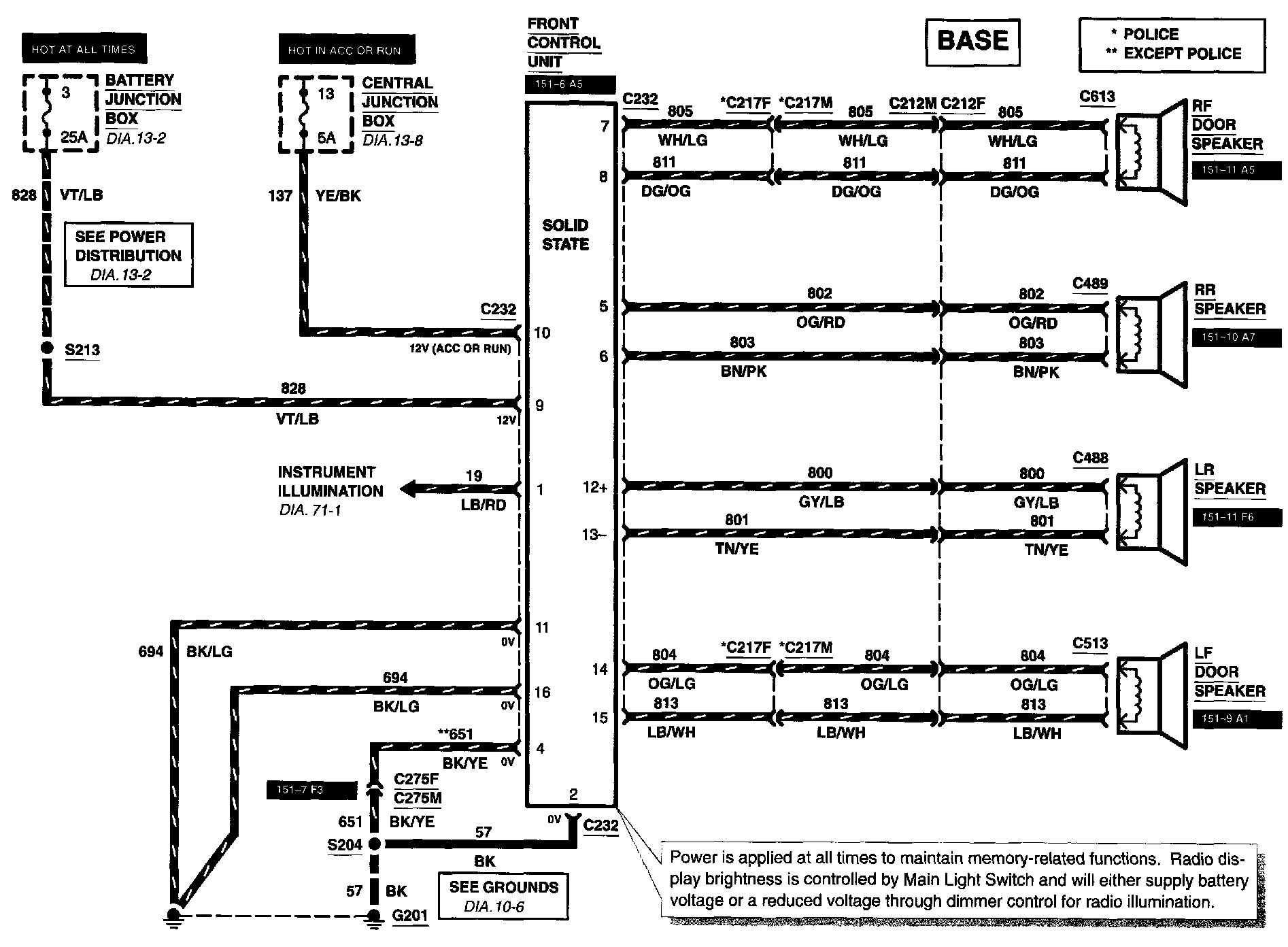

Base Sound System

Diagram 130-1:






Premium Sound System

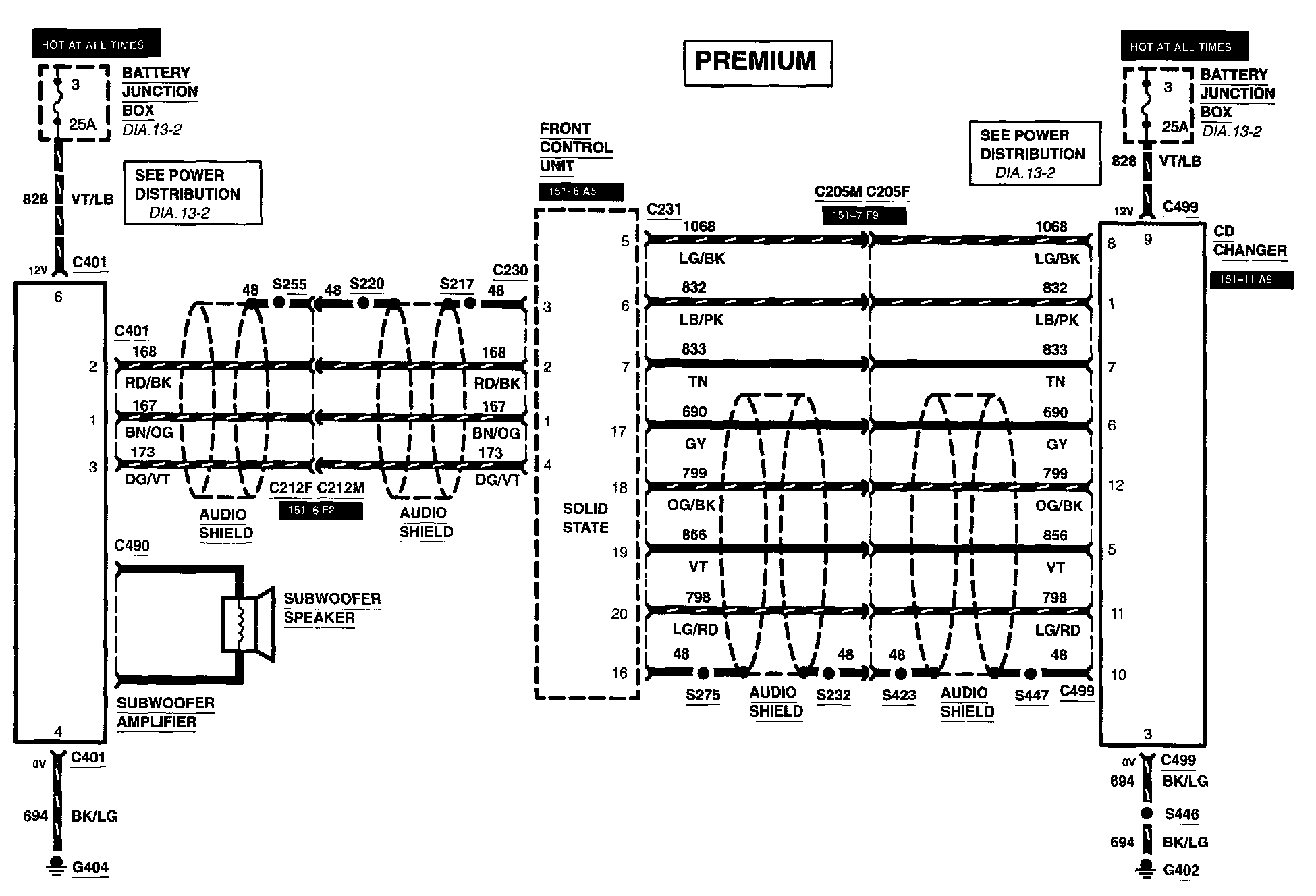

Diagram 130-2:

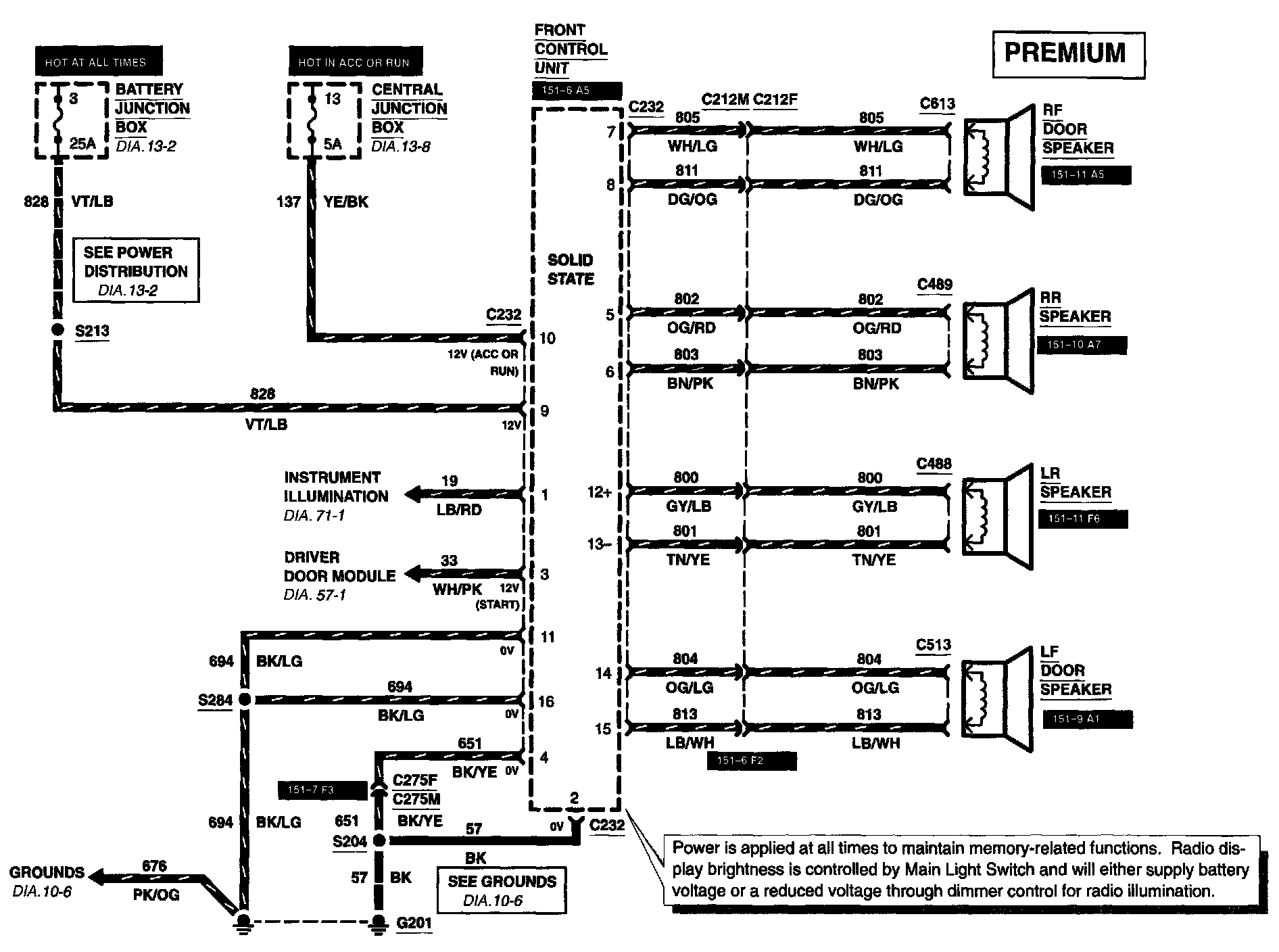

Diagram 130-3:
