B1601 - Unprogrammed Encoded Ignition Key (Keycode Format Ok)

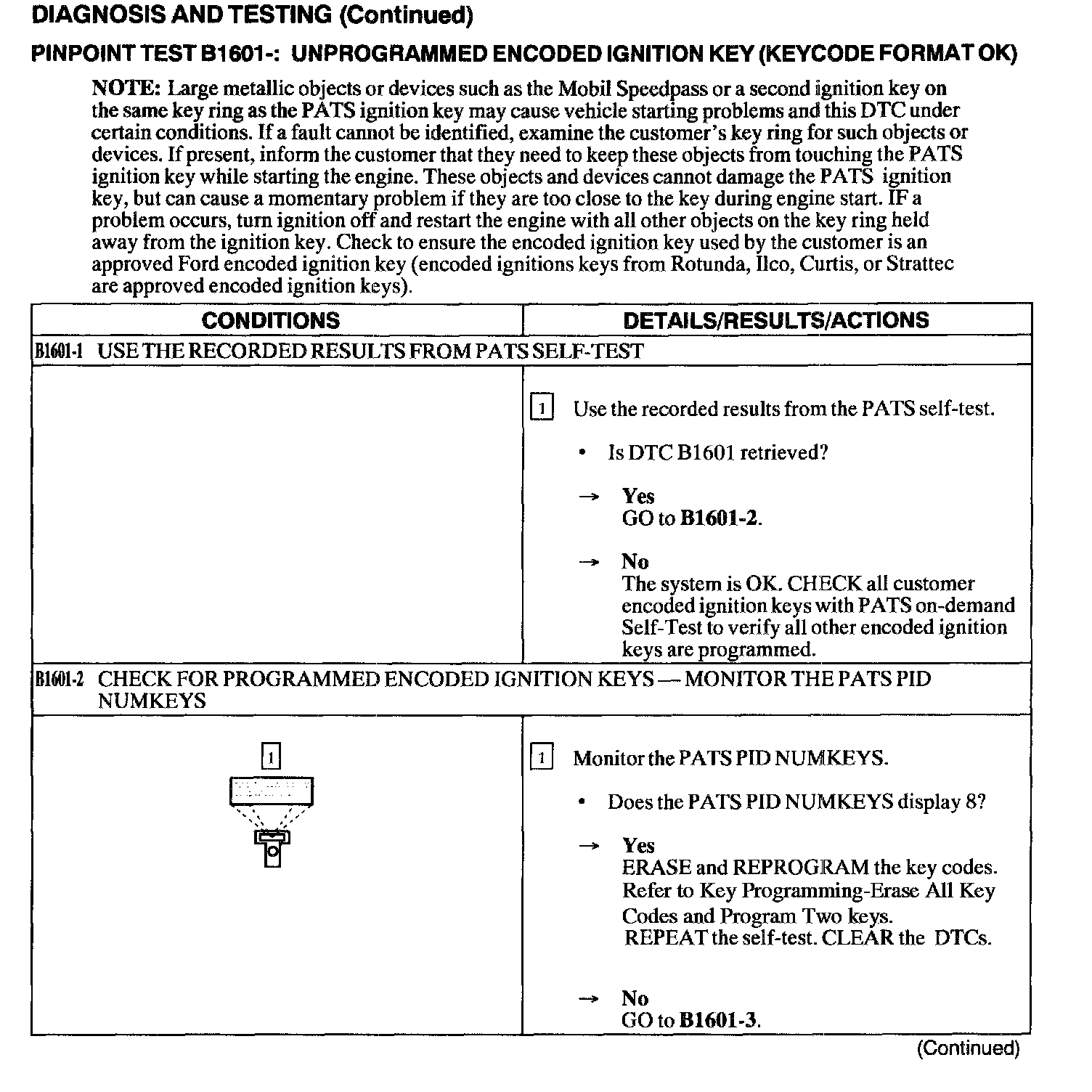

B1601-1 - B1601-2:

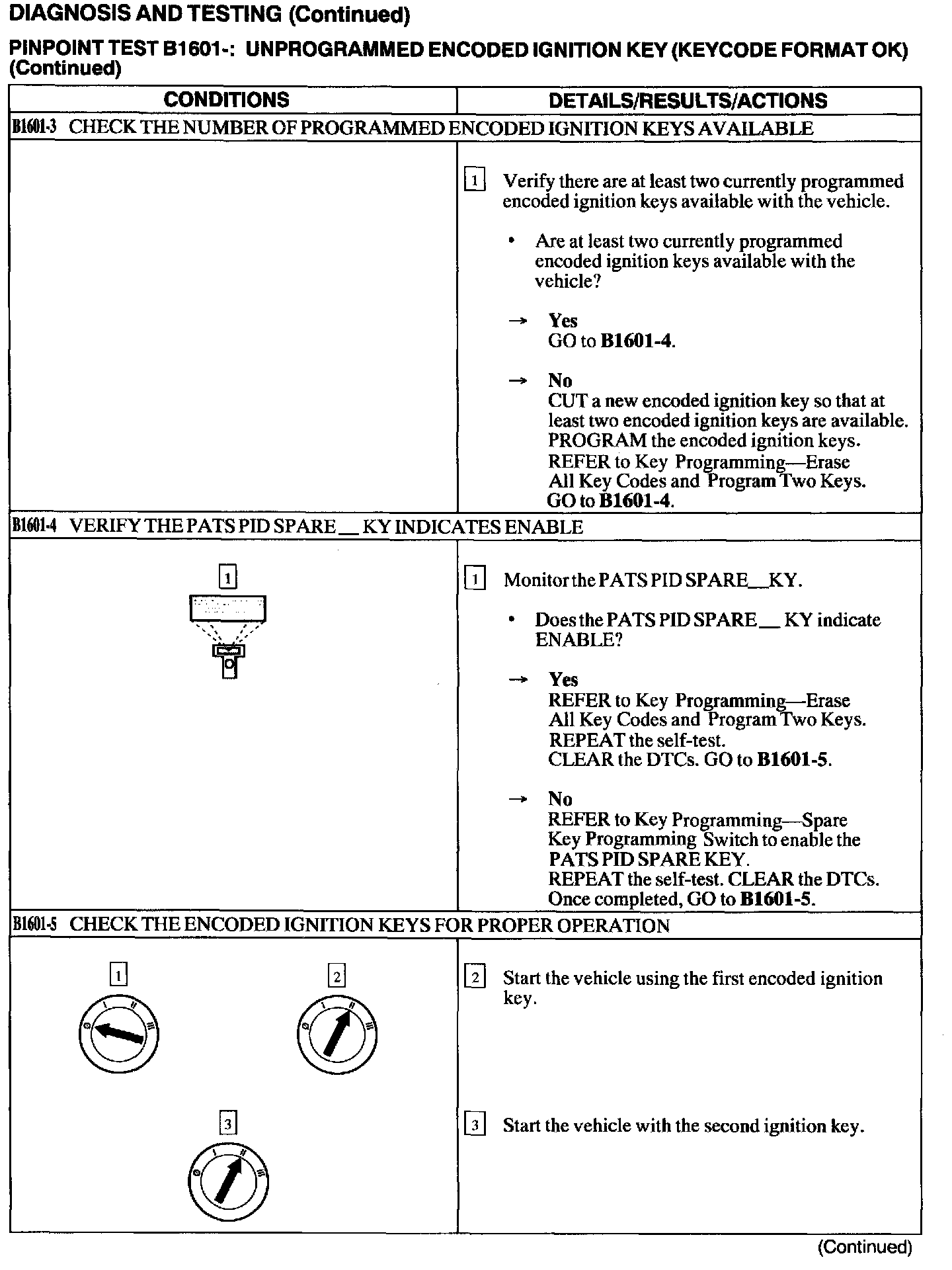

B1601-3 - B1601-5:

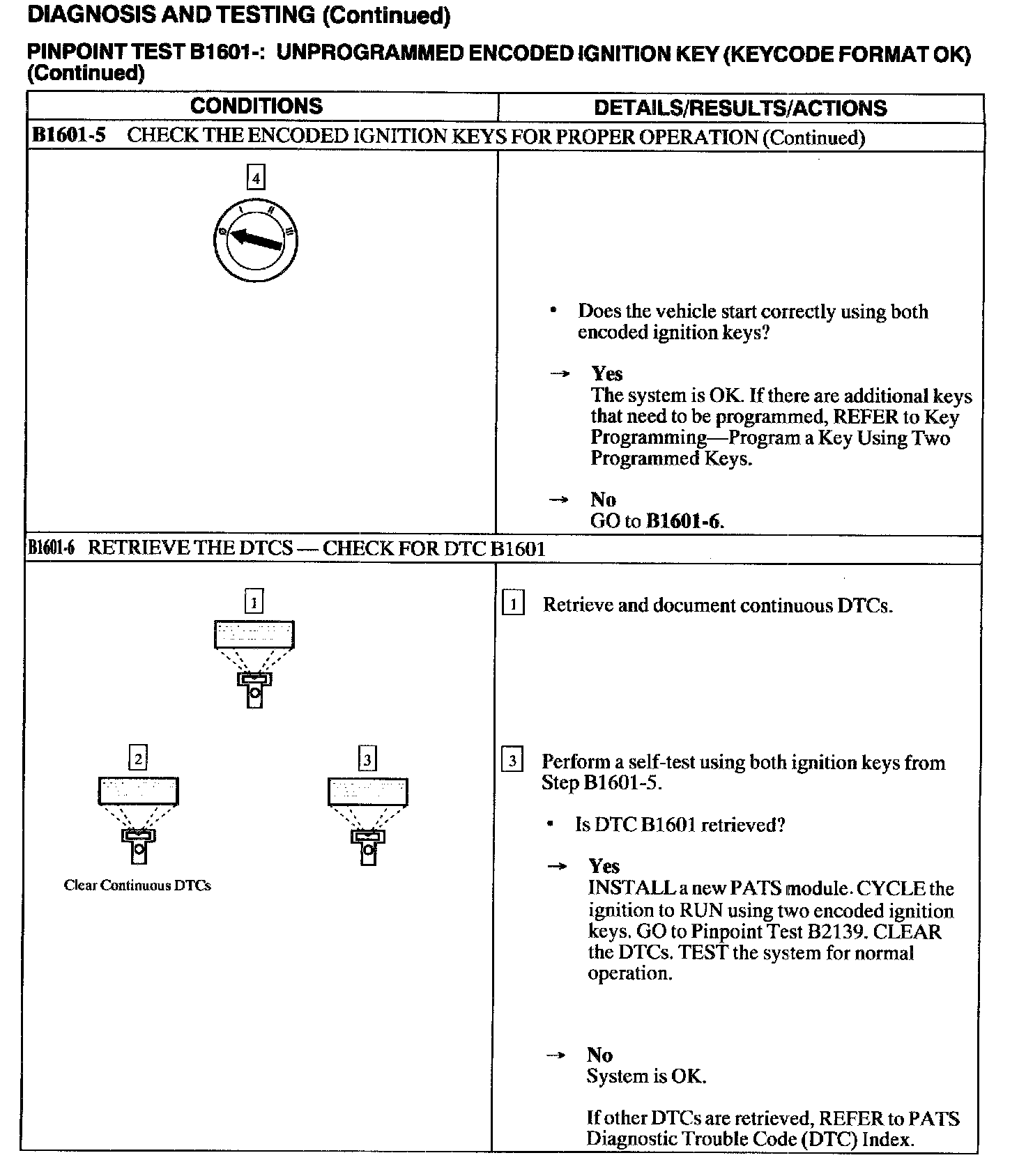

B1601-5 - B1601-6:
