Shift Shaft Seal

Manual Control Lever Shaft and Seal

Special Tools:

Special Tool(s)

Removal

1. Drain the transmission fluid and remove the fluid pan and filter.





2. Disconnect the digital TR sensor electrical connector.





3. Disconnect the transmission shift linkage.





4. Remove the digital TR sensor.

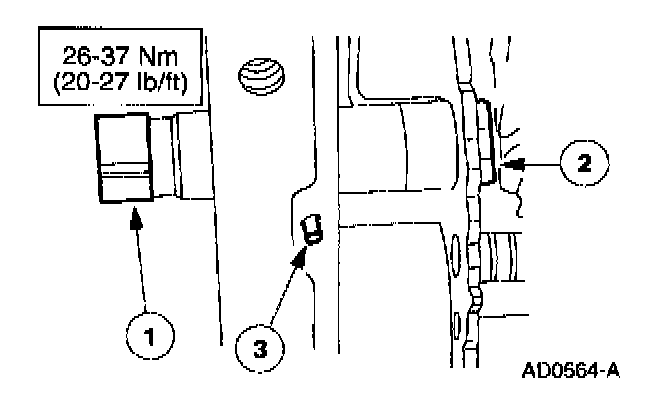

^ Remove the bolts.
^ Remove the digital TR sensor.





5. Remove the manual control valve detent lever spring.
1. Remove the bolt.
2. Remove the manual control valve detent lever spring.





6. NOTE: Use a shop cloth to protect the transmission case surface.

Remove the manual lever shaft retaining pin.





7. Remove the nut and slide the manual control lever shaft out of the case.

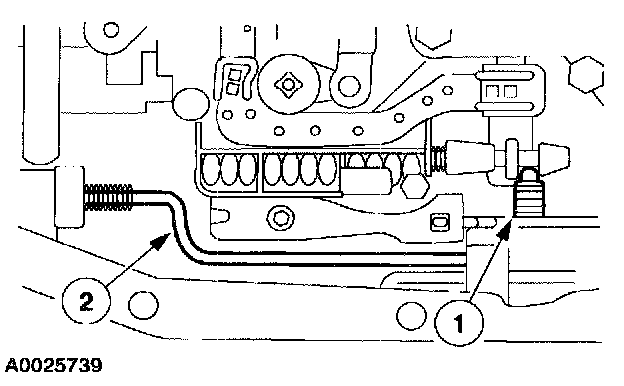

8. Remove the parking lever actuating rod.
1. Remove the manual valve detent lever.
2. Remove the parking lever actuating rod.





9. CAUTION: Use care not to damage the manual control lever shaft bore. New seal may leak due to damage to the bore.

Remove the manual control lever shaft seal.

Installation

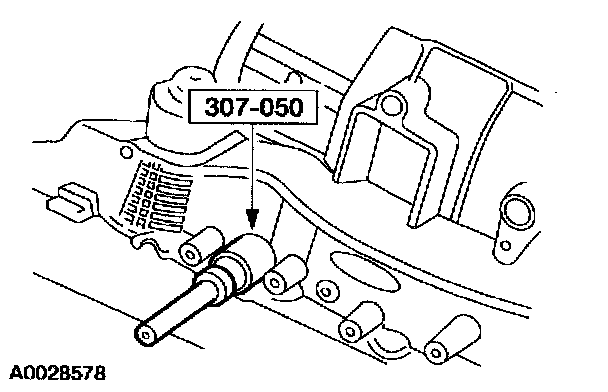

1. Using the special tool, install the manual control lever shaft seal.

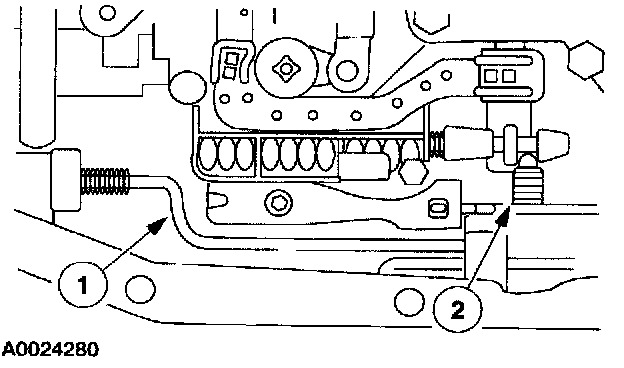

2. Install the parking lever actuating rod.
1. Install the parking lever actuating rod.
2. Install the manual valve detent lever.





3. Install the manual control lever shaft.
1. Install the manual control lever shaft.
2. Install the nut.
3. Install the manual control lever shaft retaining pin.





4. Install the manual valve detent lever spring.
1. Position the manual valve detent lever spring.
2. Install the bolt.





5. Install the digital TR sensor.
1. Install the digital TR sensor.
2. Loosely install the bolts.





6. NOTE: Manual shift lever shaft must be in the neutral position.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.





7. Tighten the bolts.





8. With the manual lever in overdrive, connect the shift control cable.





9. Install the digital TR sensor electrical connector.
10. Install the filter and transmission fluid pan.
