Extension Housing Seal, A/T

Extension Housing Seal and Gasket

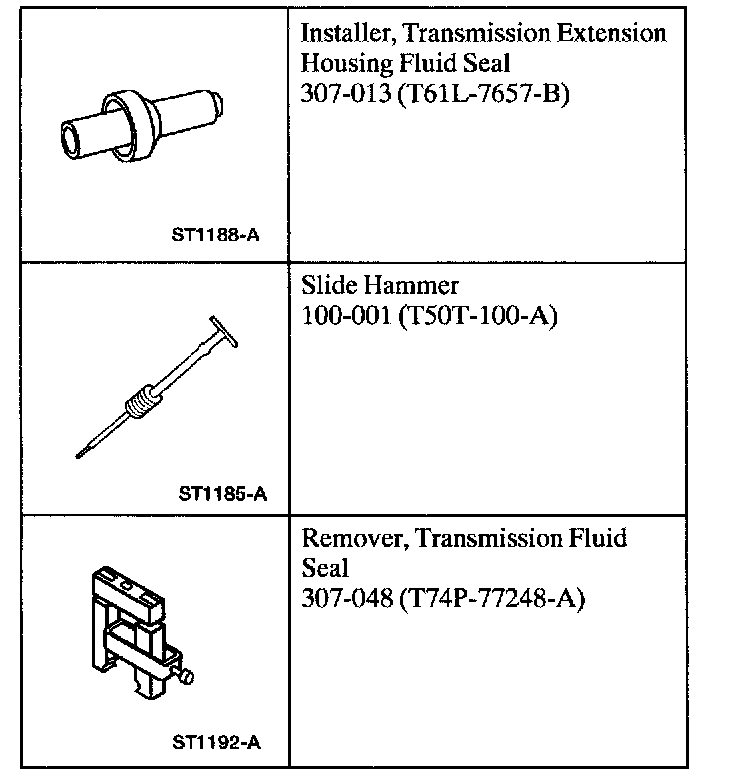

Special Tool(s)

Removal

1. Drain the transmission fluid.





2. NOTE: To maintain the initial driveshaft balance, mark the rear driveshaft yoke and the axle flange so they may be installed in their original positions.

Remove the driveshaft.
^ Remove the four bolts.





3. Separate the driveshaft from the transmission.
4. Use a high-lift transmission jack to support the transmission.





5. Remove the two transmission mount nuts.





6. Remove the transmission crossmember.
^ Remove the bolts.
^ Remove the transmission crossmember.
7. Lower the transmission to access the extension housing bolts.





8. Using the special tools, remove the extension housing seal.





9. Remove the vehicle speed sensor (VSS).
1. Disconnect the connector.
2. Remove the bolt.
3. Remove the vehicle speed sensor (VSS).





10. Remove the extension housing and gasket.
1. Remove the bolts and the nuts.
2. Remove the extension housing and gasket.

Installation





1. Install the extension housing and gasket.
1. Position the extension housing gasket and the extension housing.
2. Install the bolts and the nuts.





2. Install the vehicle speed sensor (VSS).
1. Install the vehicle speed sensor (VSS).
2. Install the bolt.
3. Connect the connector.

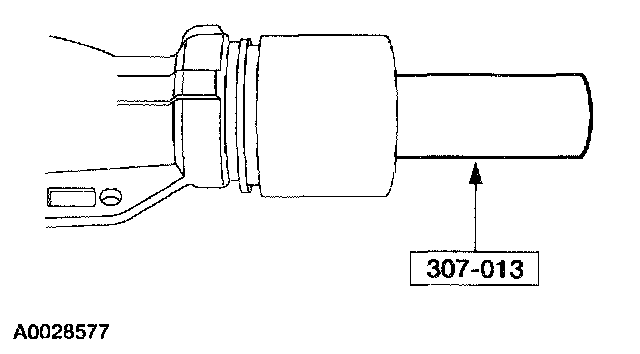

3. Using the special tool, install a new extension housing seal.
4. Raise and position the transmission.





5. Install the transmission crossmember.
1. Position the transmission crossmember.
2. Install the bolts.
6. Remove the high-lift transmission jack.





7. Install the two transmission mount nuts.





8. NOTE: The output shaft and the driveshaft are a balanced assembly.

Install the driveshaft.
^ Align the index marks and position the driveshaft on the transmission.
^ Install the driveshaft.





9. Install the four retaining bolts.
10. Install the filter and transmission fluid pan.
