FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Grand Marquis V8-281 4.6L VIN 9 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test J: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
Test J: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

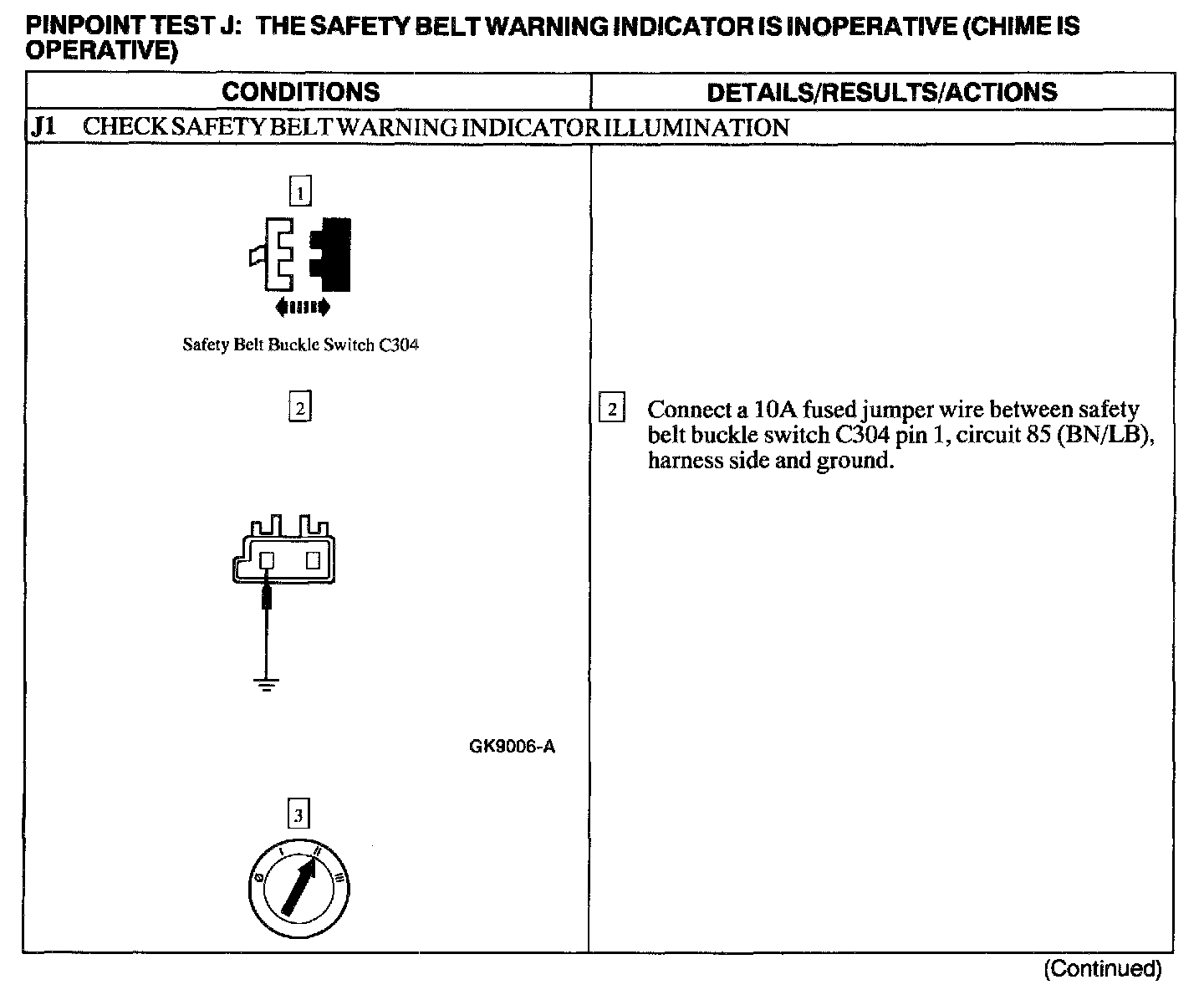

J1:

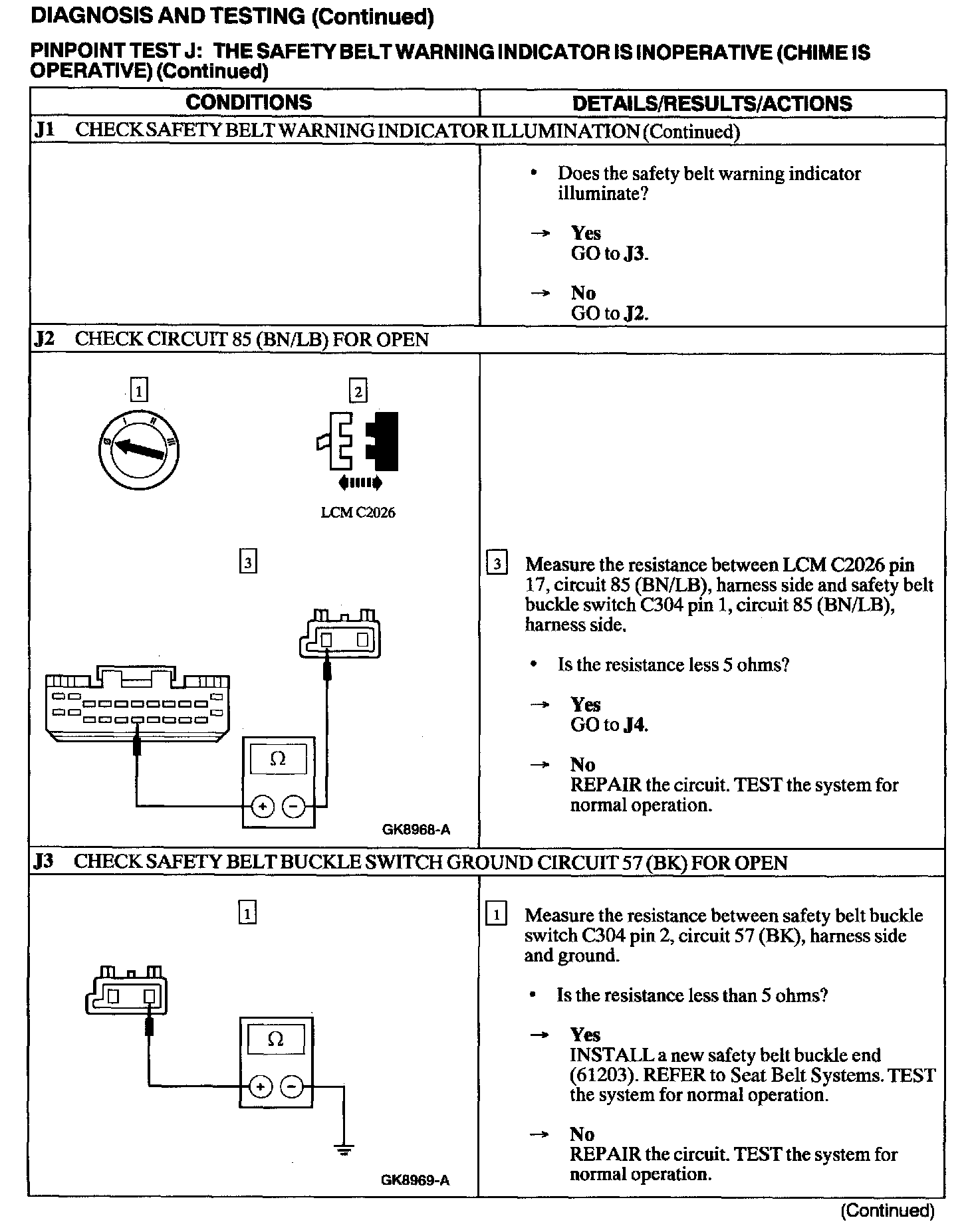

J1 - J3:

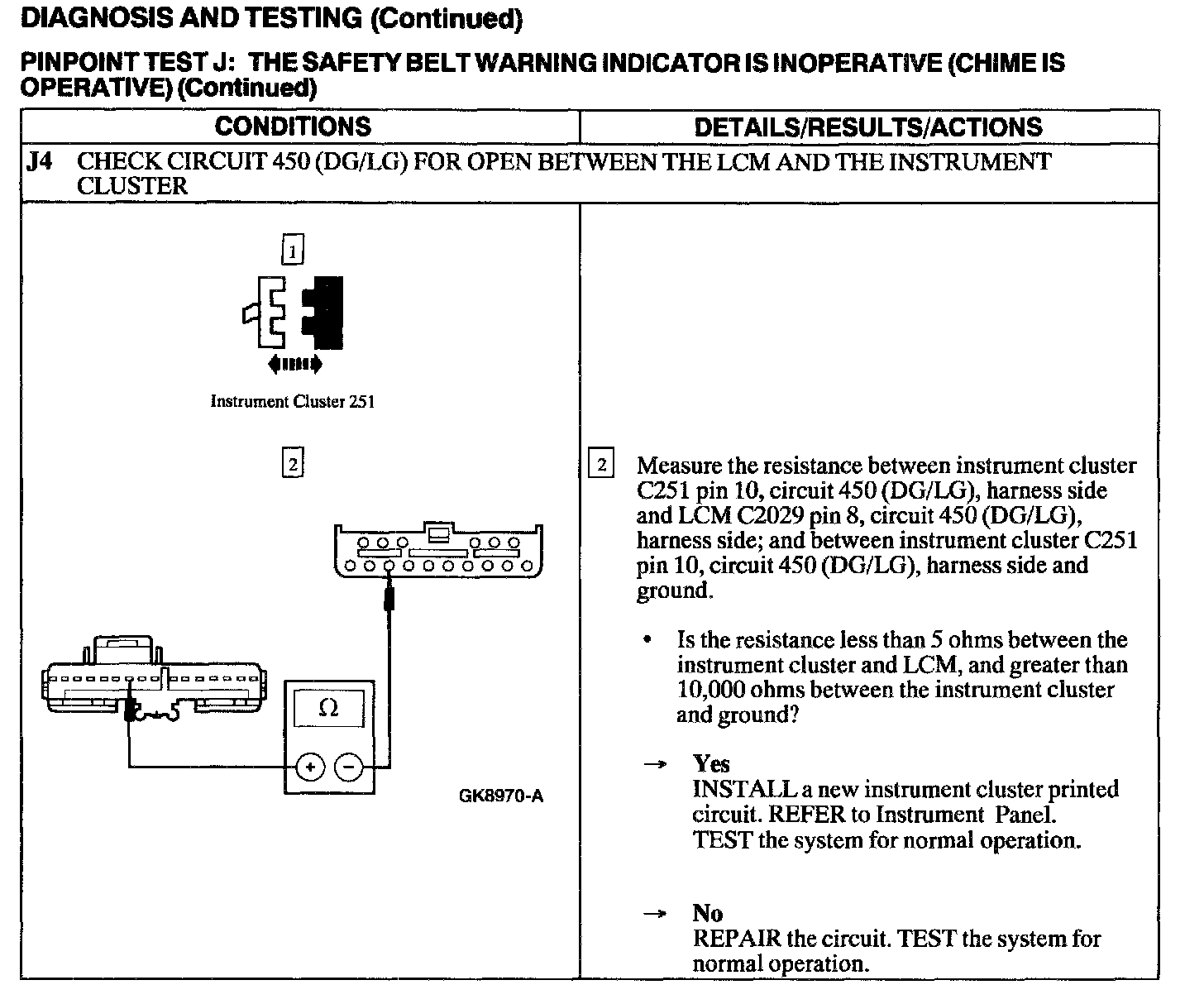

J4:
