Grand Marquis V8-281 4.6L VIN 9 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: B1255 and B1257 - Ambient Temp Sensor Open Circuit/Short to Ground
Test C: B1255 and B1257 - Ambient Temp Sensor Open Circuit/Short to Ground

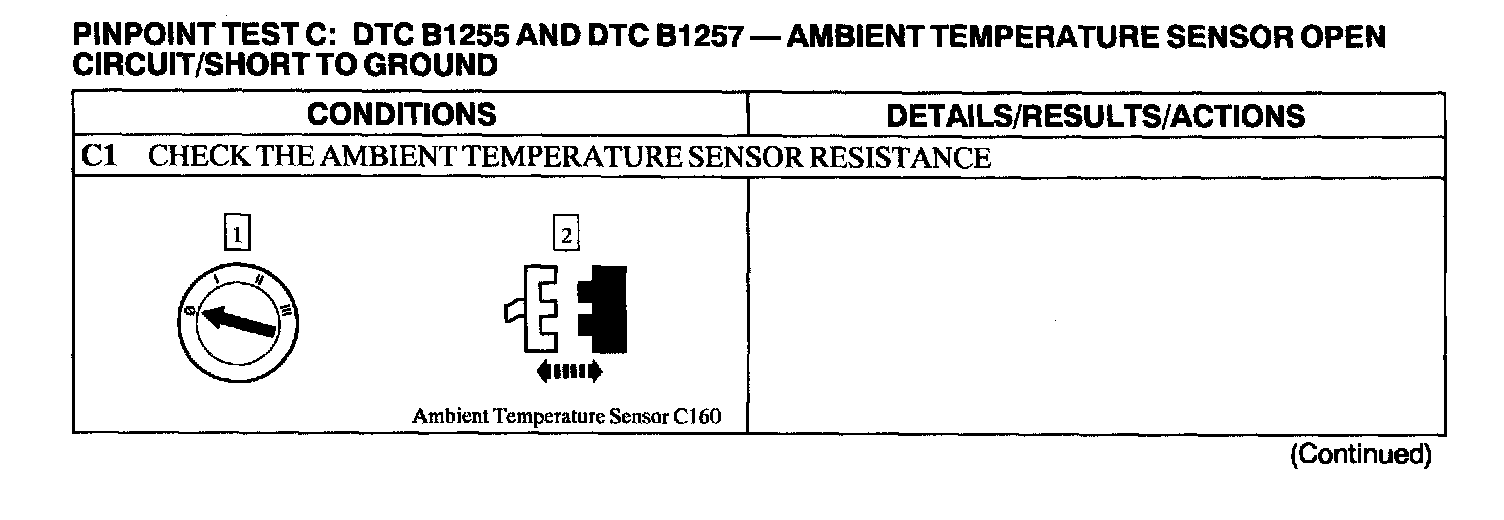

C1:

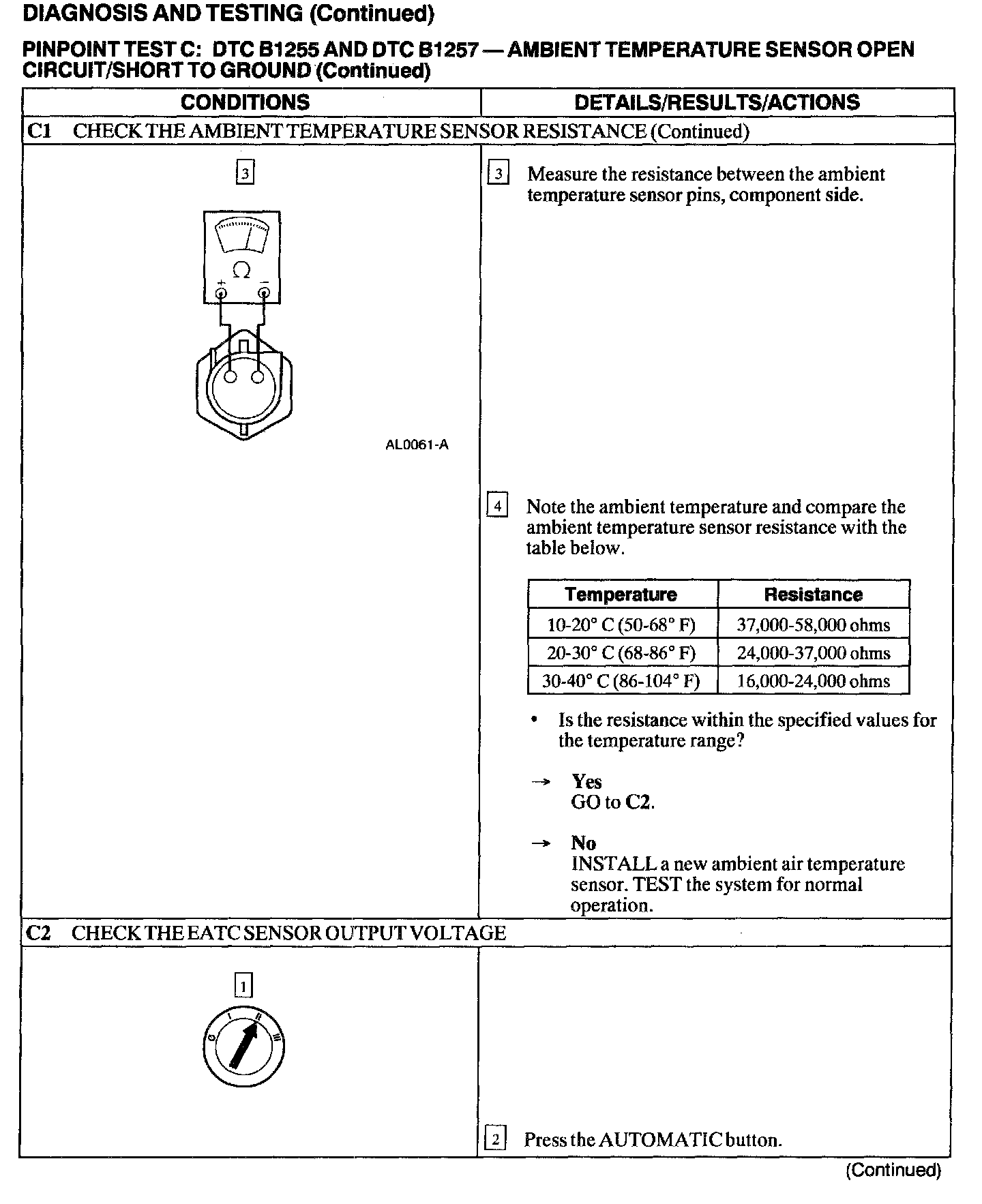

C1 - C2:

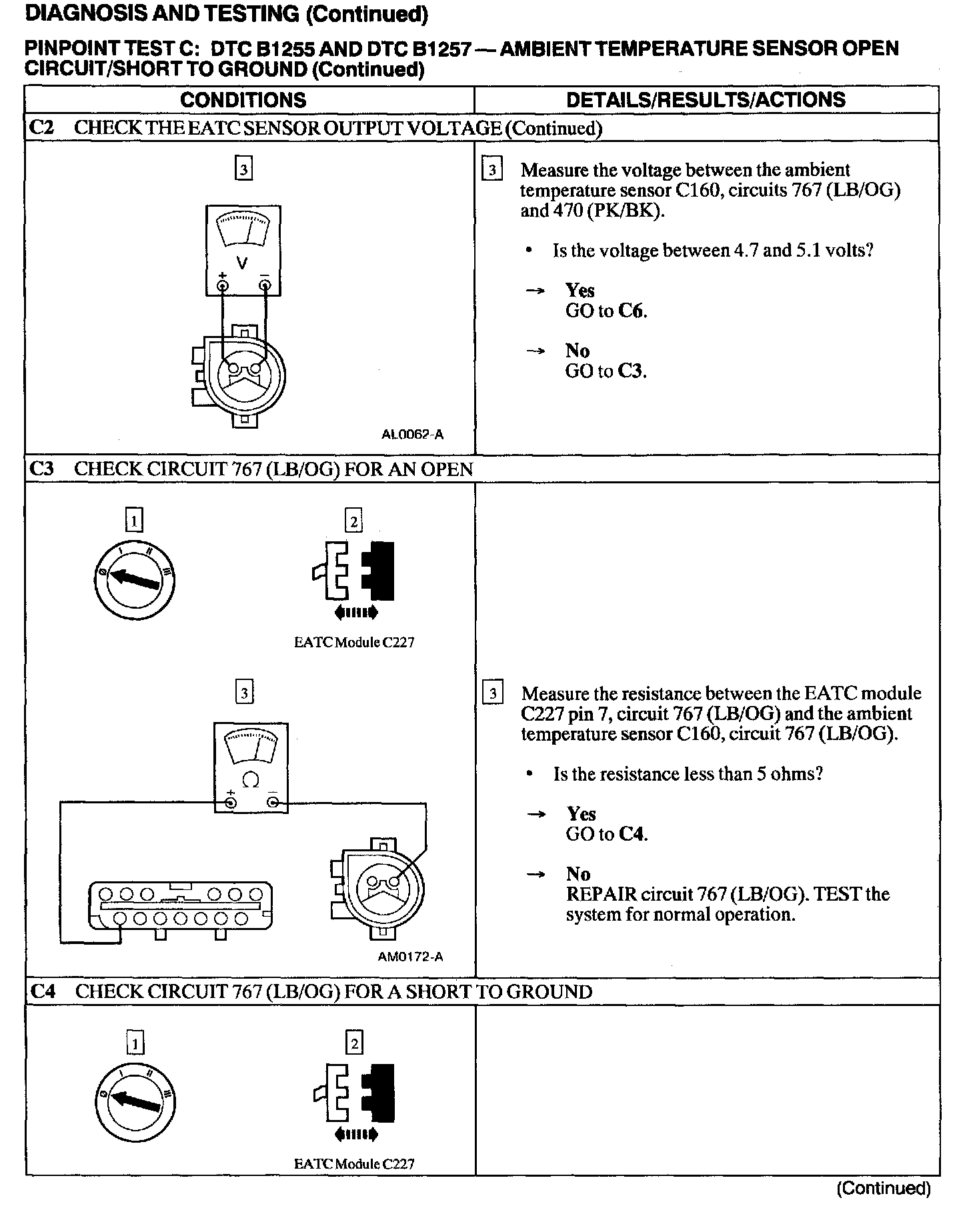

C2 - C4:

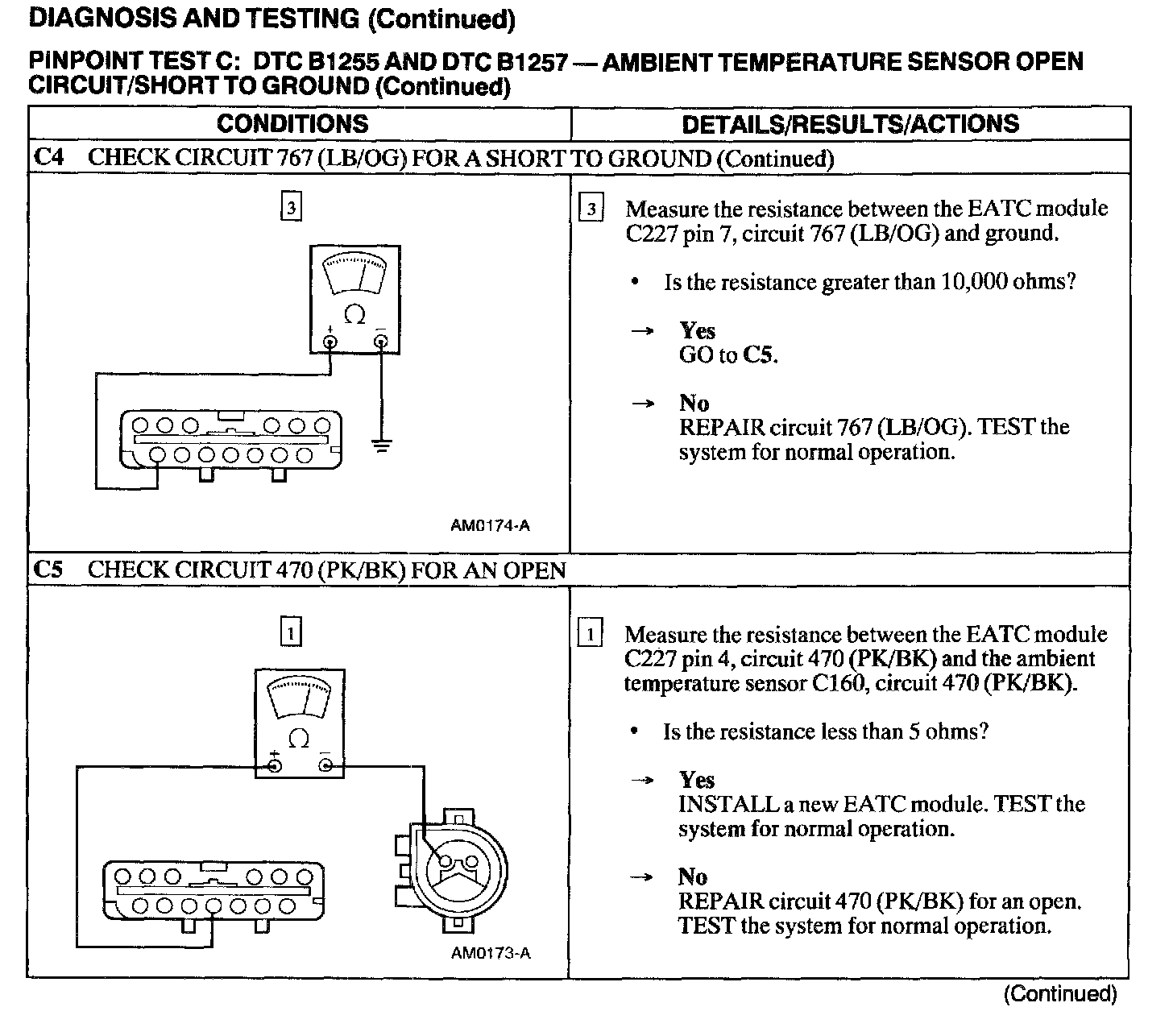

C4 - C5:

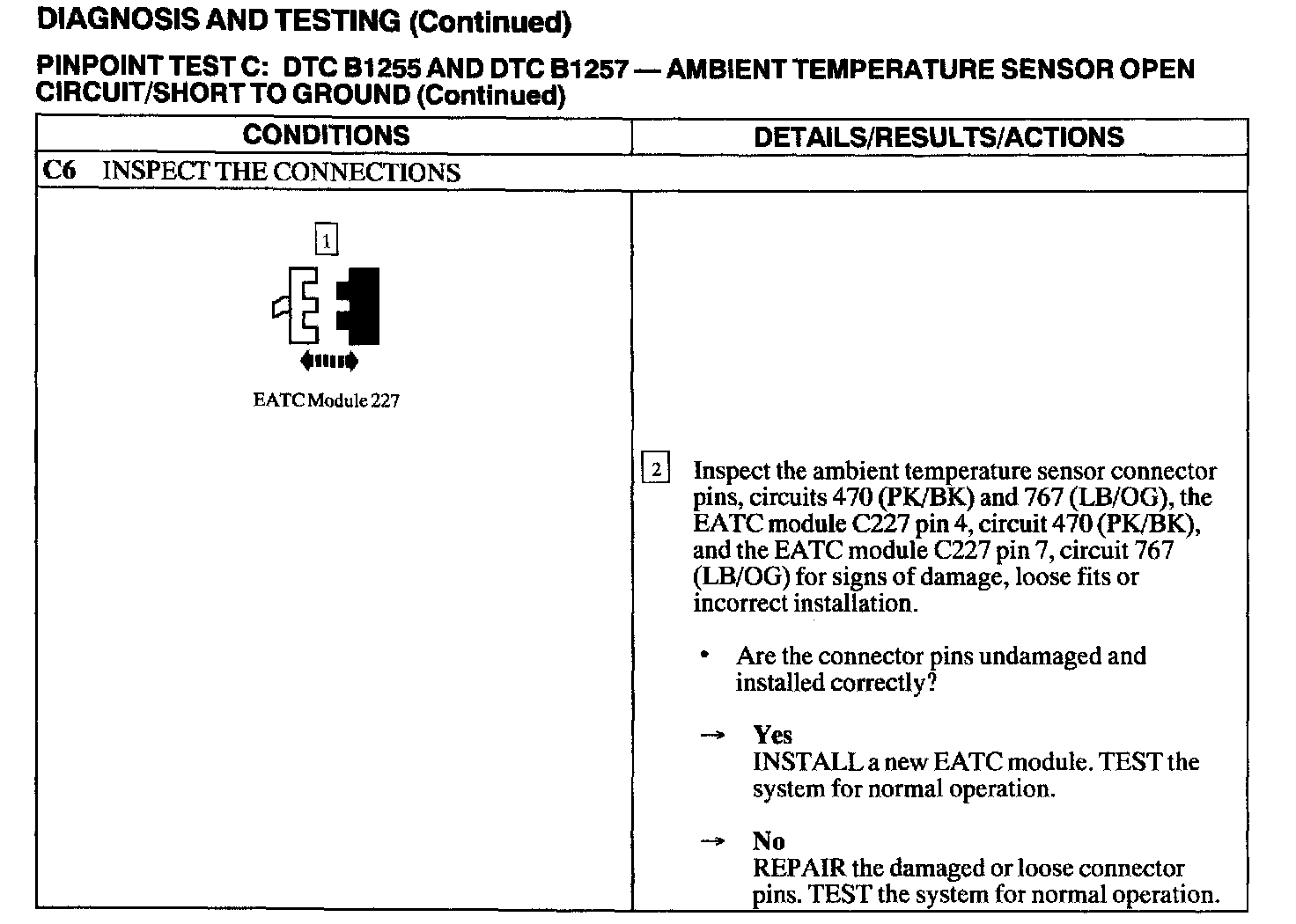

C6:
