FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Grand Marquis V8-281 4.6L VIN 9 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
F: No Communication With The ABS Control Module
F: No Communication With The ABS Control Module
PINPOINT TEST F: NO COMMUNICATION WITH THE MODULE - ANTI-LOCK BRAKE CONTROL MODULE

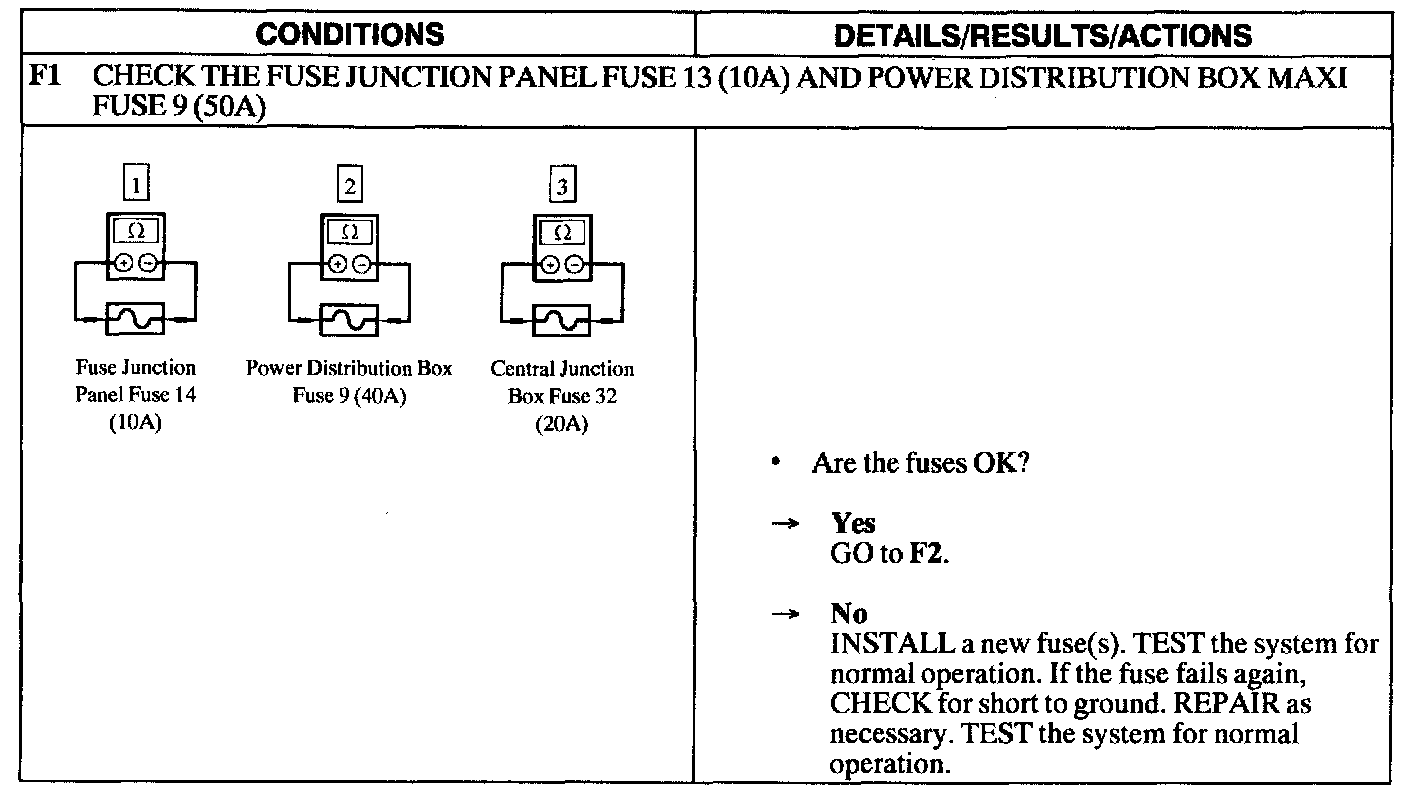

Test F1:

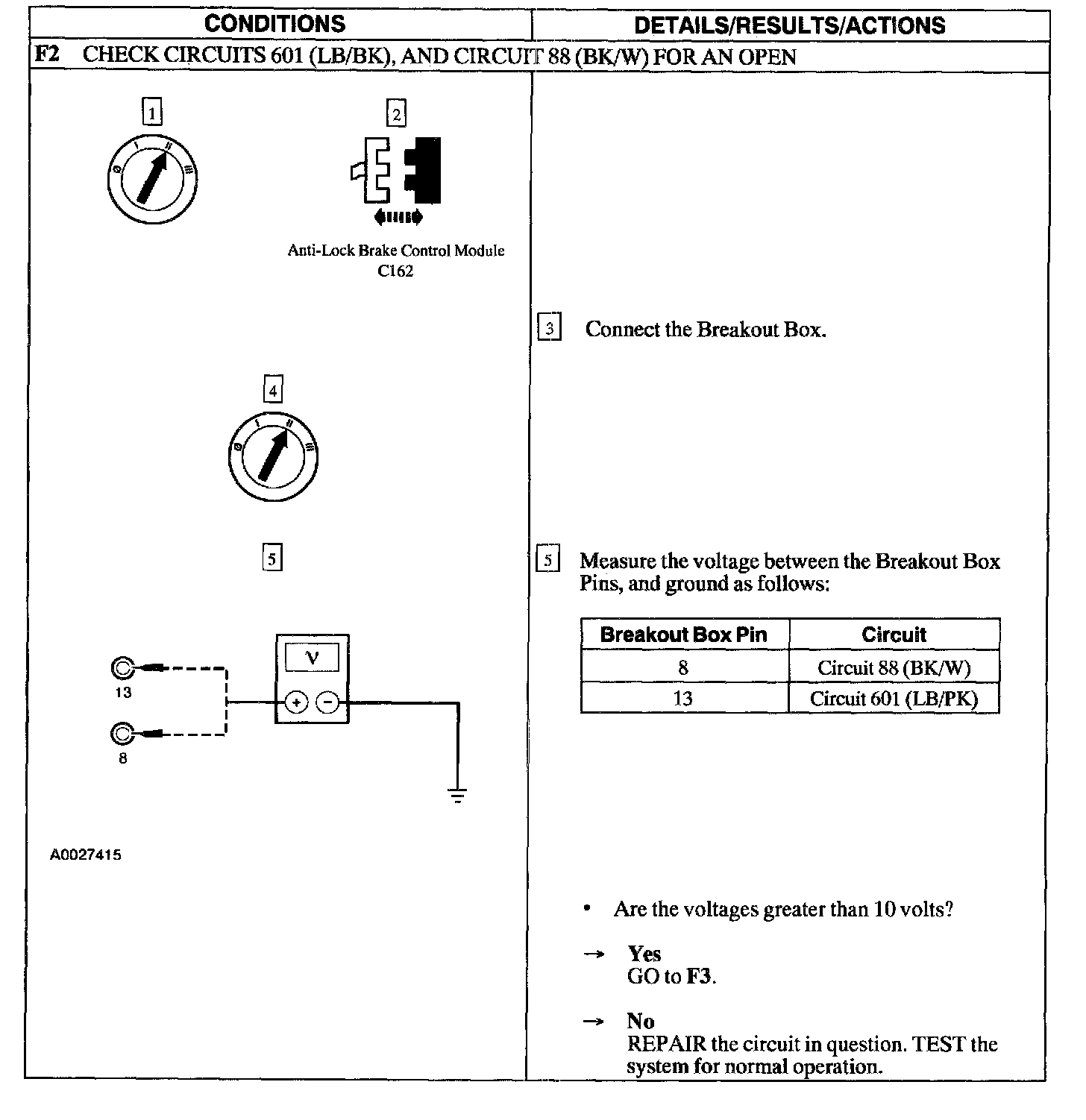

Test F2:

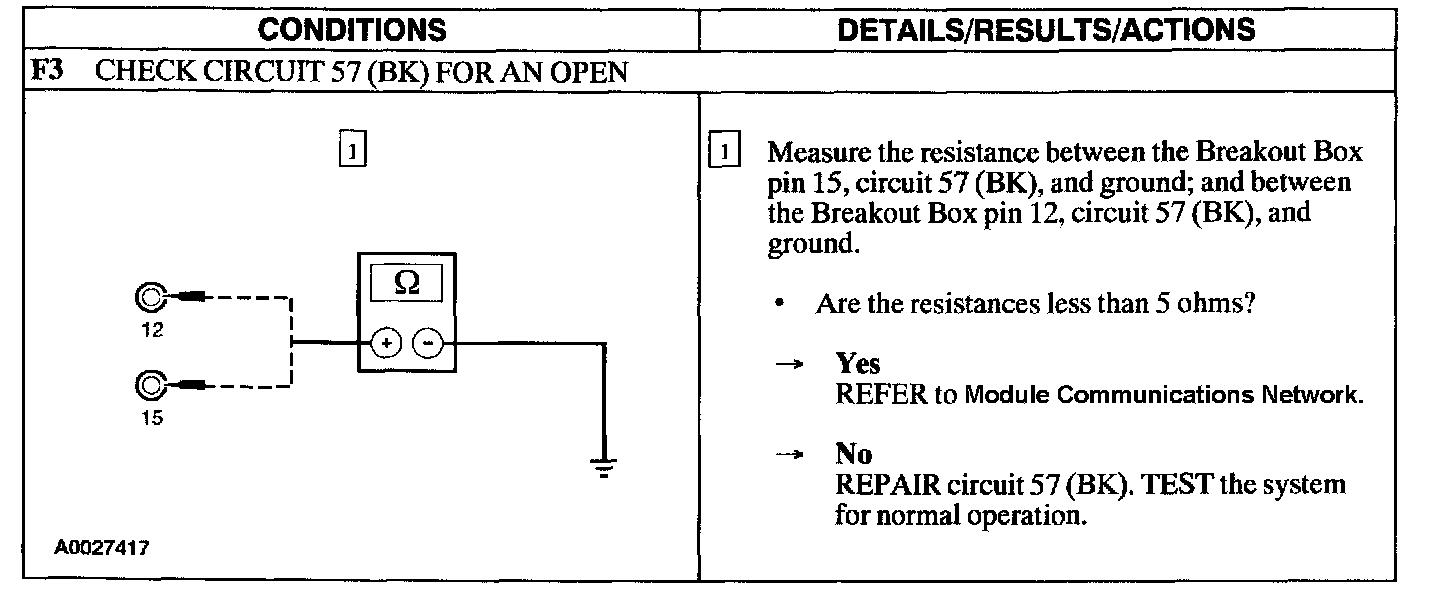

Test F3:
