Front Door Panel: Service and Repair

TRIM PANEL-FRONT DOOR

Removal and Installation

Driver doors

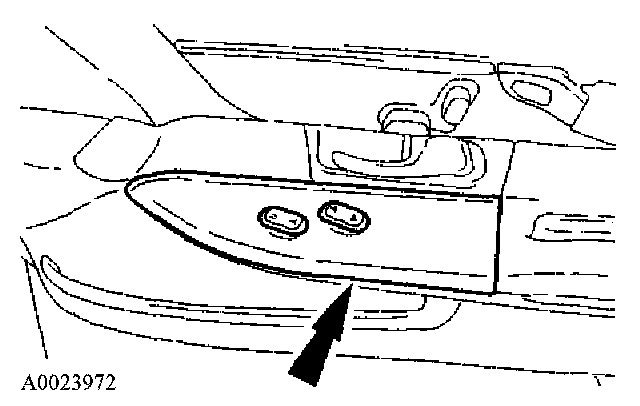

1. Position the window regulator switch plate aside.







2. Disconnect the electrical connectors.

Passenger door







3. Position the window regulator switch plate aside.

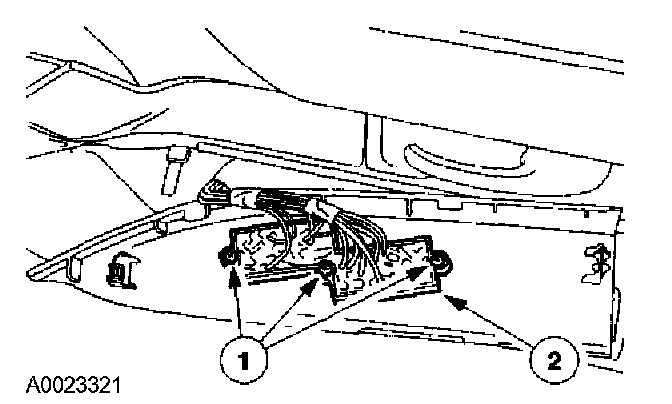

4. Remove the window regulator switch plate.
1. Remove the screws.
2. Disconnect the electrical connectors.

Both doors

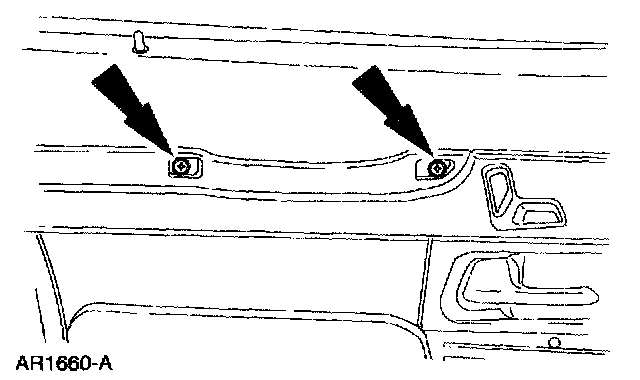

5. Remove the screw covers.







6. NOTE: Use care not to damage the trim panel when removing the screws.

Remove the screws.







7. Remove the interior door handle cup.

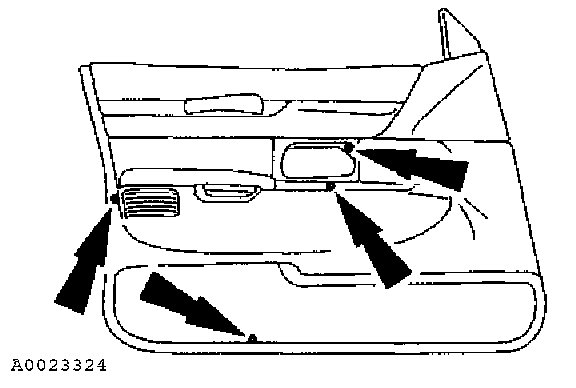

8. Remove the four screws.







9. Remove the front door trim panel (23942).

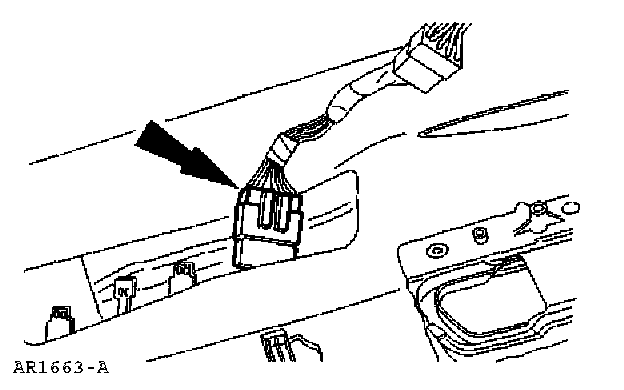

10. Disconnect the electrical connector.
11. To install, reverse the removal procedure.
