Home >> Mercury >> 2001 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Shift Concerns >> 211/311: Shift Timing - Early/Late

211/311: Shift Timing - Early/Late

SHIFT CONCERNS: SHIFT TIMING - EARLY/LATE

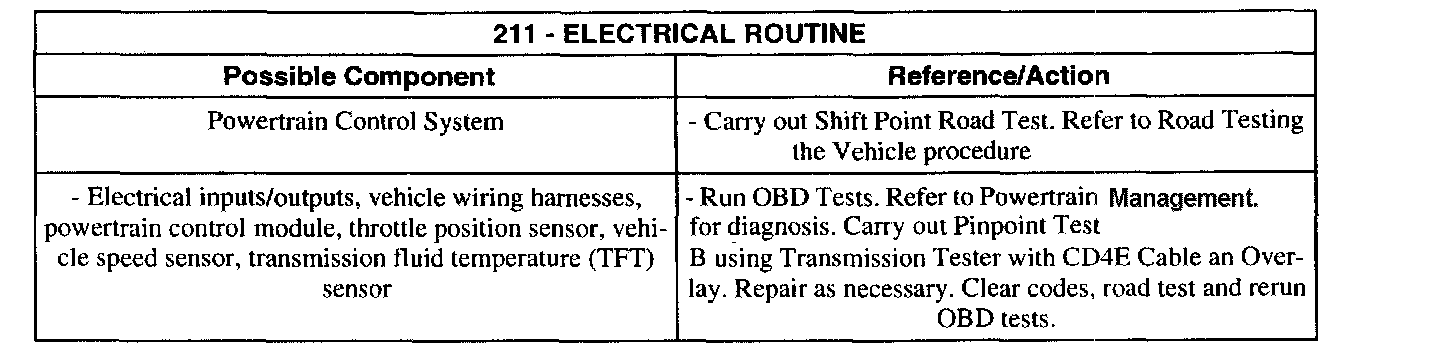

211 - Electrical Routine

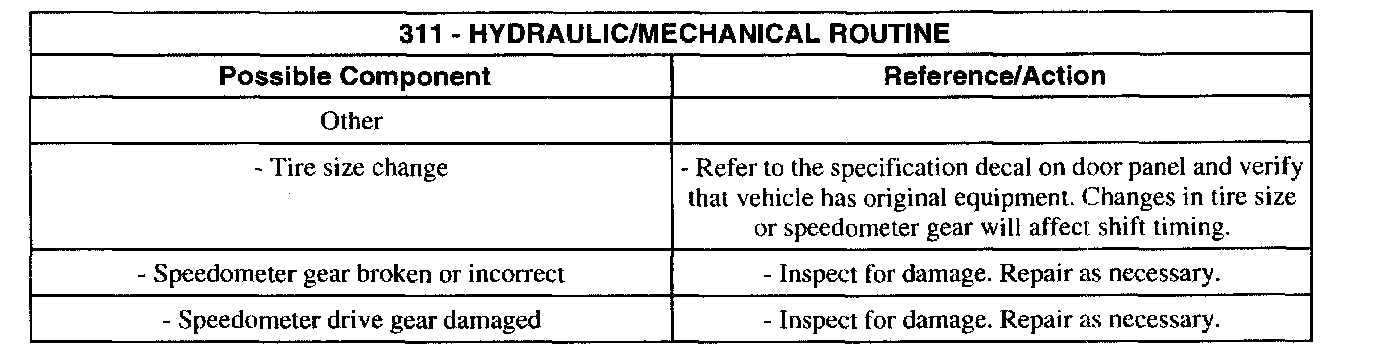

311 - Hydraulic/Mechanical Routine
