Alternator: Service and Repair

Special Tools:

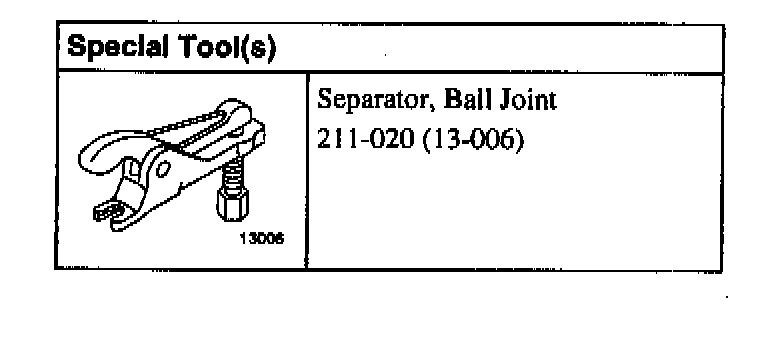

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.

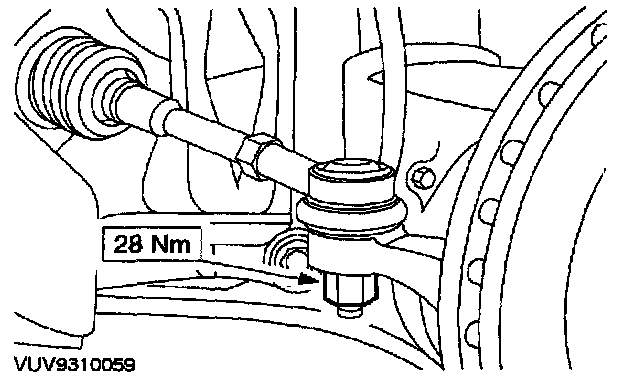

3. Remove the tie-rod end nut.

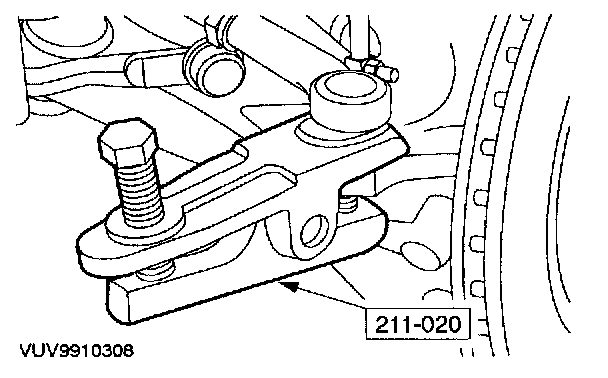

4. Using the special tool, separate the tie-rod end from the wheel knuckle.

CAUTION: Protect the ball joint seal to prevent damage.

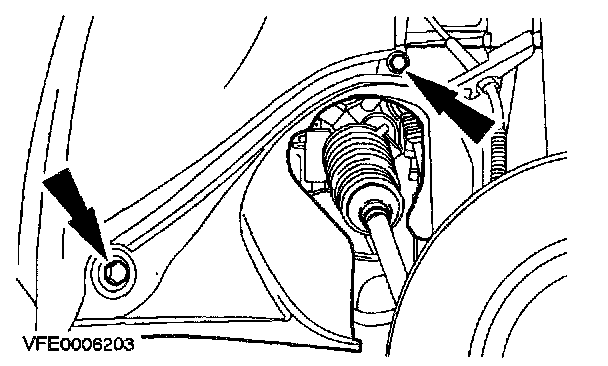

5. Remove the wheelarch liner.







6. Disconnect the generator electrical connectors (generator shown removed for clarity).

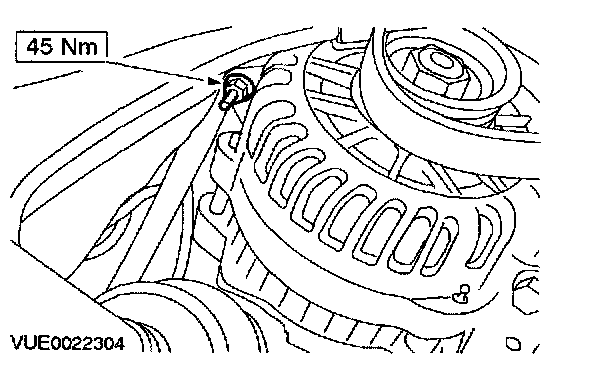

7. Remove the generator upper retaining nut and stud.

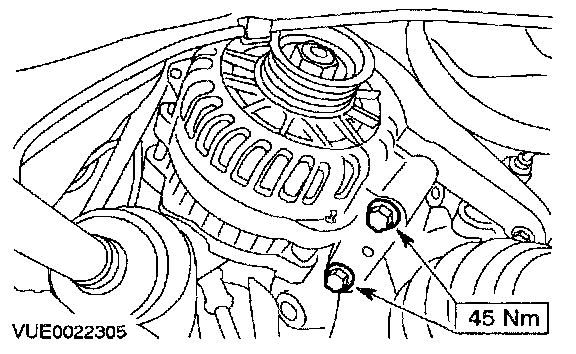

8. Remove the generator lower retaining bolts.

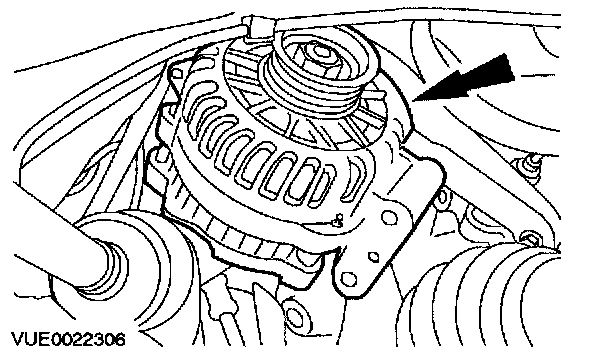

9. Remove the generator through the wheel opening.

INSTALLATION
1. To install, reverse the removal procedure.
