Home >> Mercury >> 2001 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Engine Specifications >> Cylinder Head and Valve Train

Cylinder Head and Valve Train

Cylinder head and Valve Train

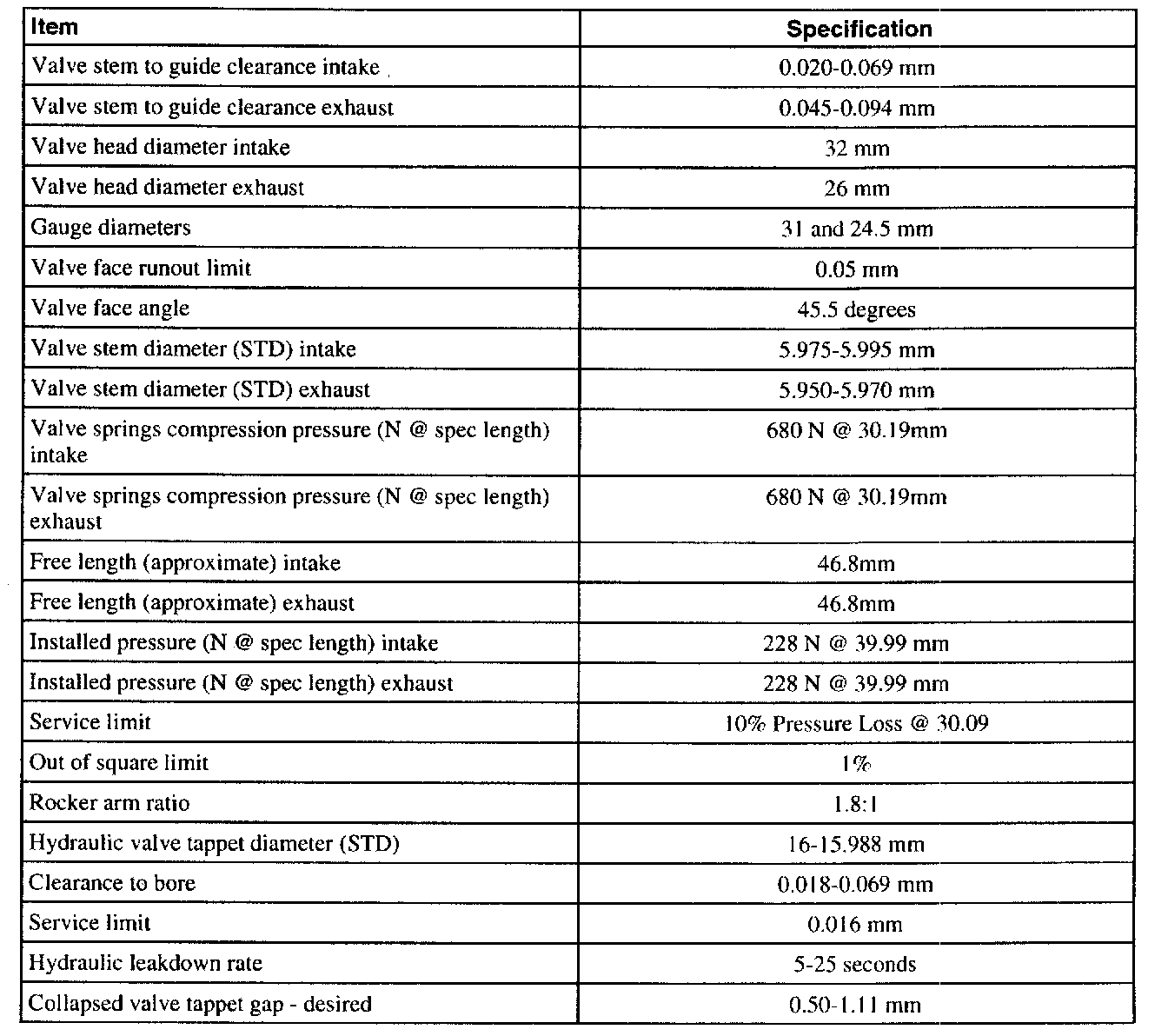

Part 1 of 2

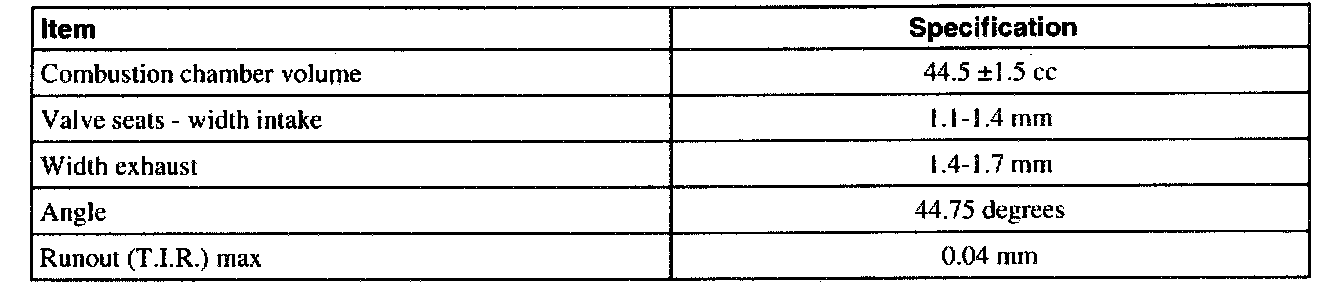

Part 2 of 2
