Ignition Coil: Service and Repair

REMOVAL

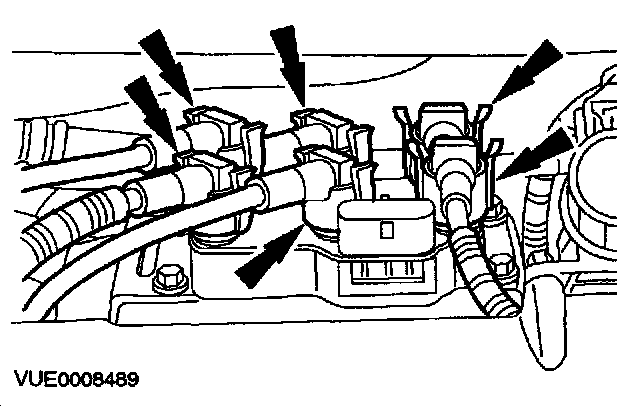

1. Disconnect the ignition coil electrical connector.







2. Disconnect the spark plug wires from the ignition coil.

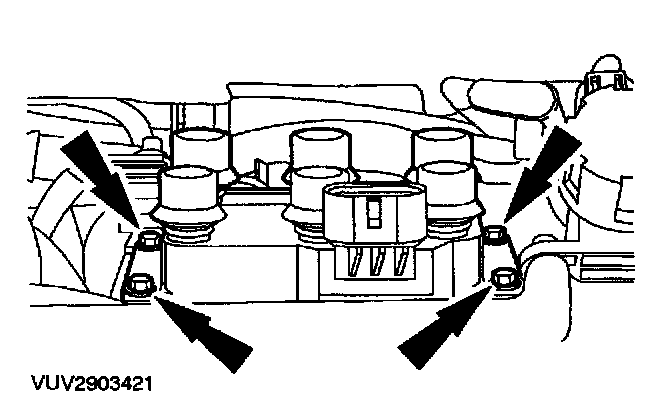

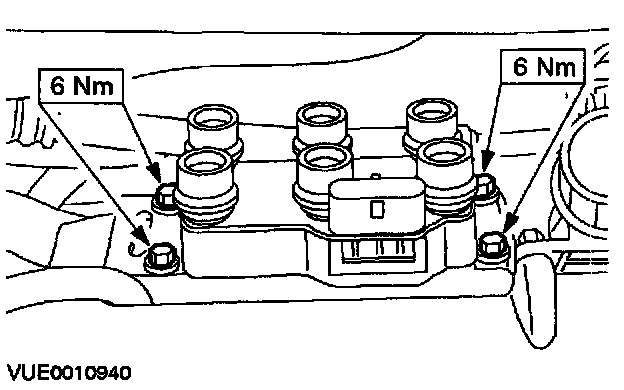

3. Remove the ignition coil.

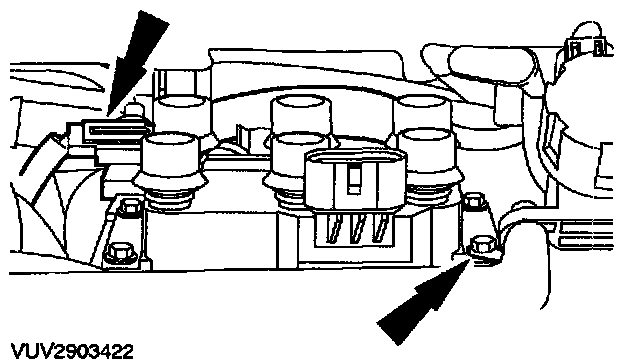

^ Remove the ground wire and suppressor from the bolts.

INSTALLATION












1. To install, reverse the removal procedure.

NOTE: When installing the ignition coil, make sure the ground wire and suppressor are connected.
