Home >> Mercury >> 2001 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> General Description and Operation

General Description and Operation

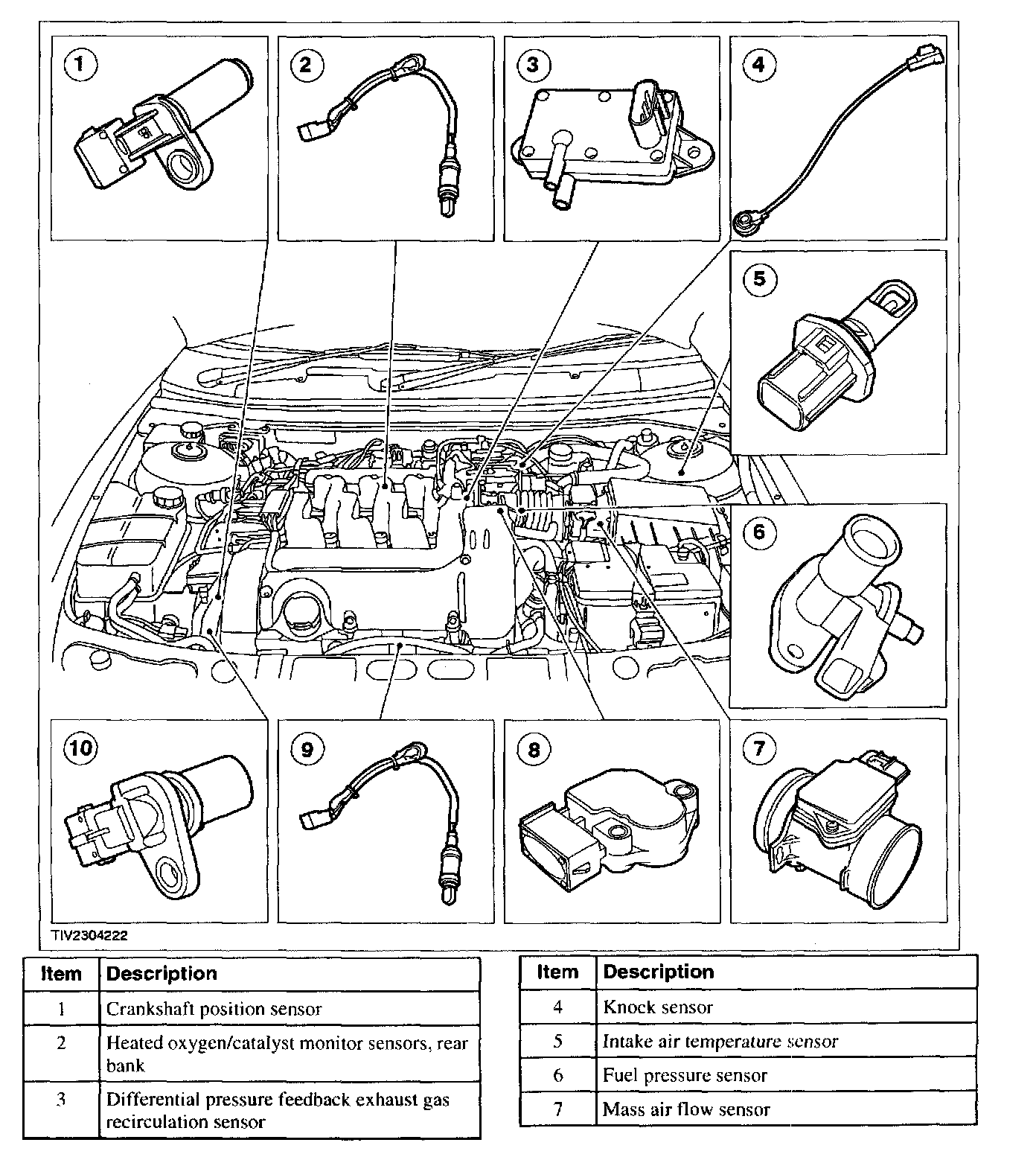

Electronic Engine Controls, Part 1:

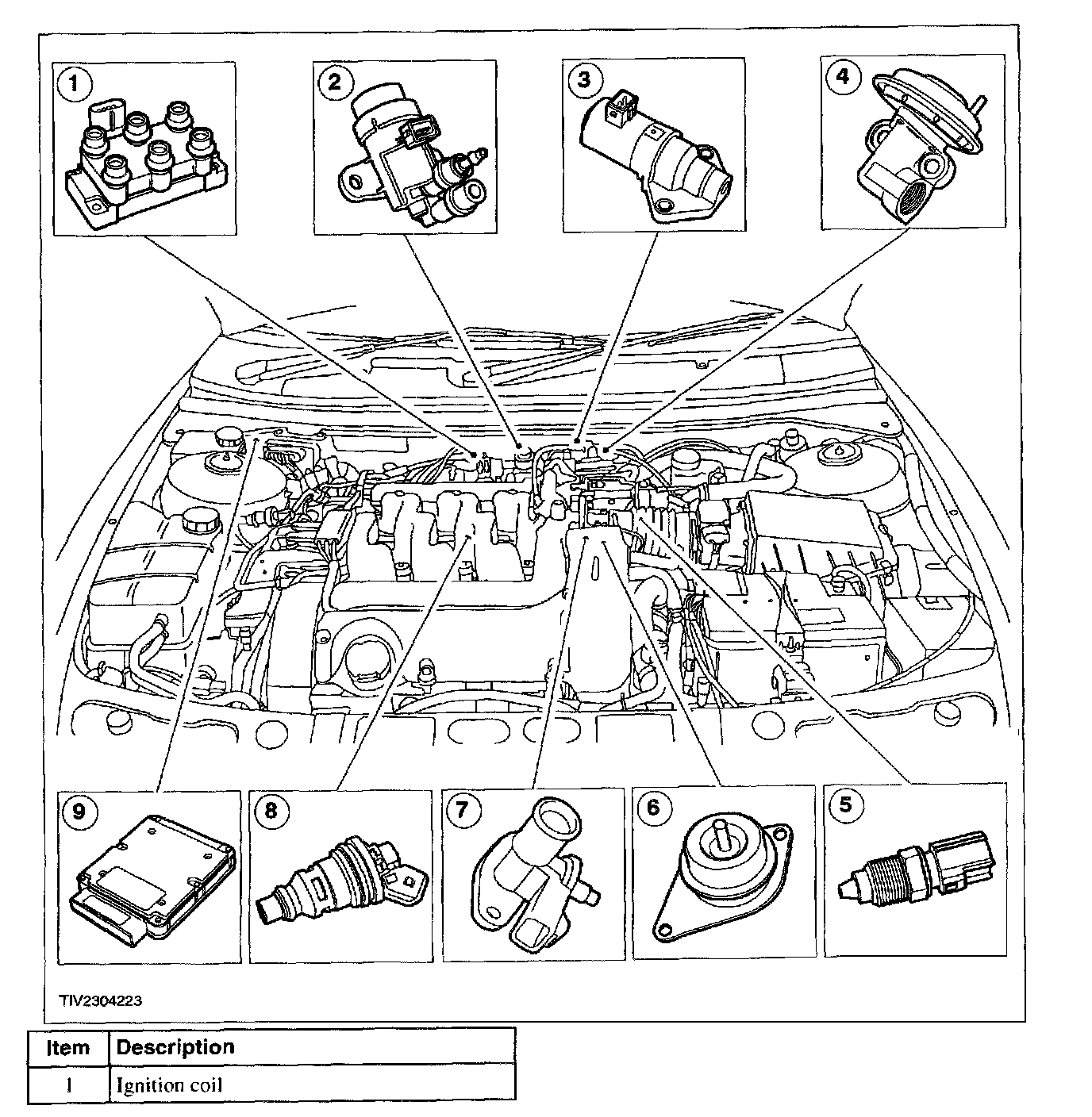

Electronic Engine Controls, Part 2:

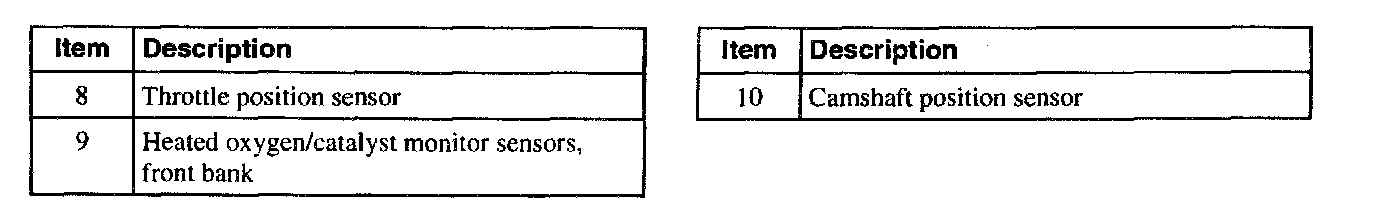

Part 1:

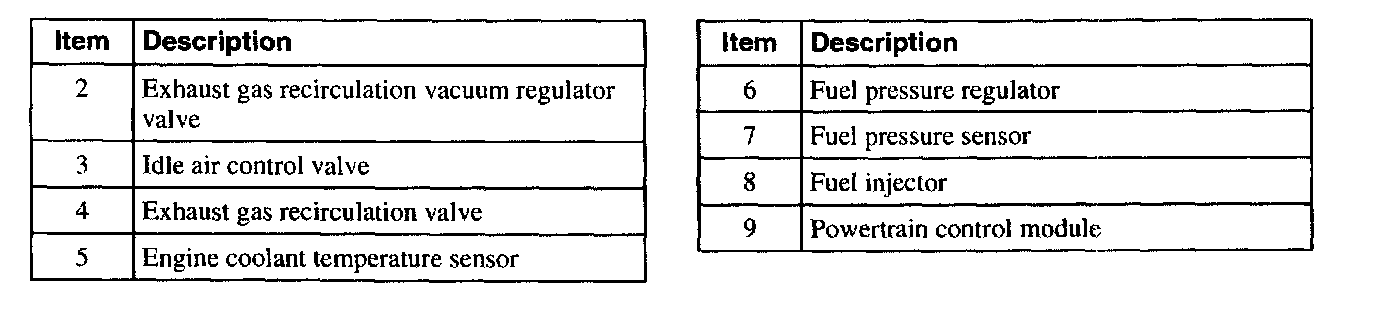

Part 2:
