Computers and Control Systems: Application and ID

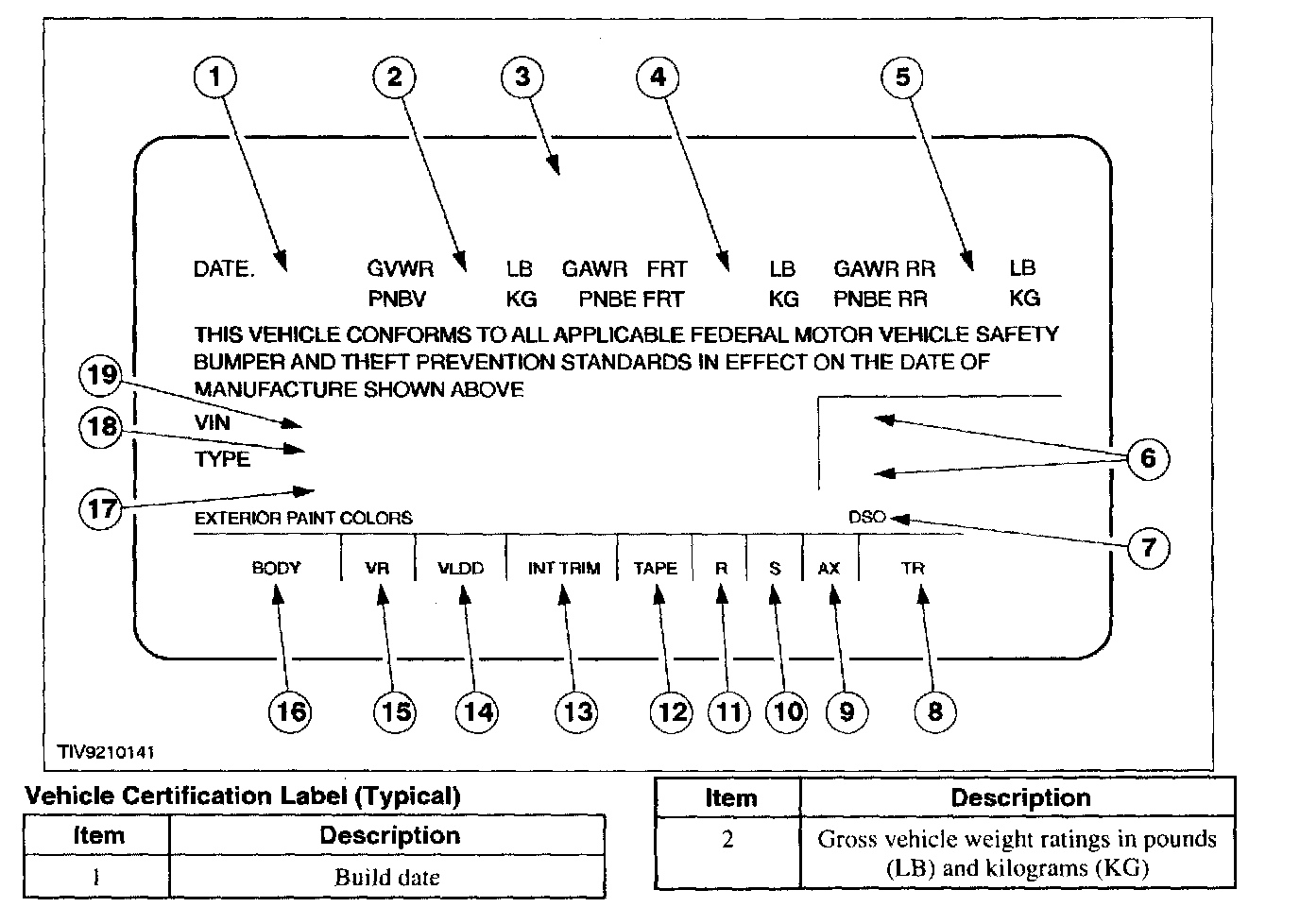

Vehicle Certification Label (Typical) Part 1:

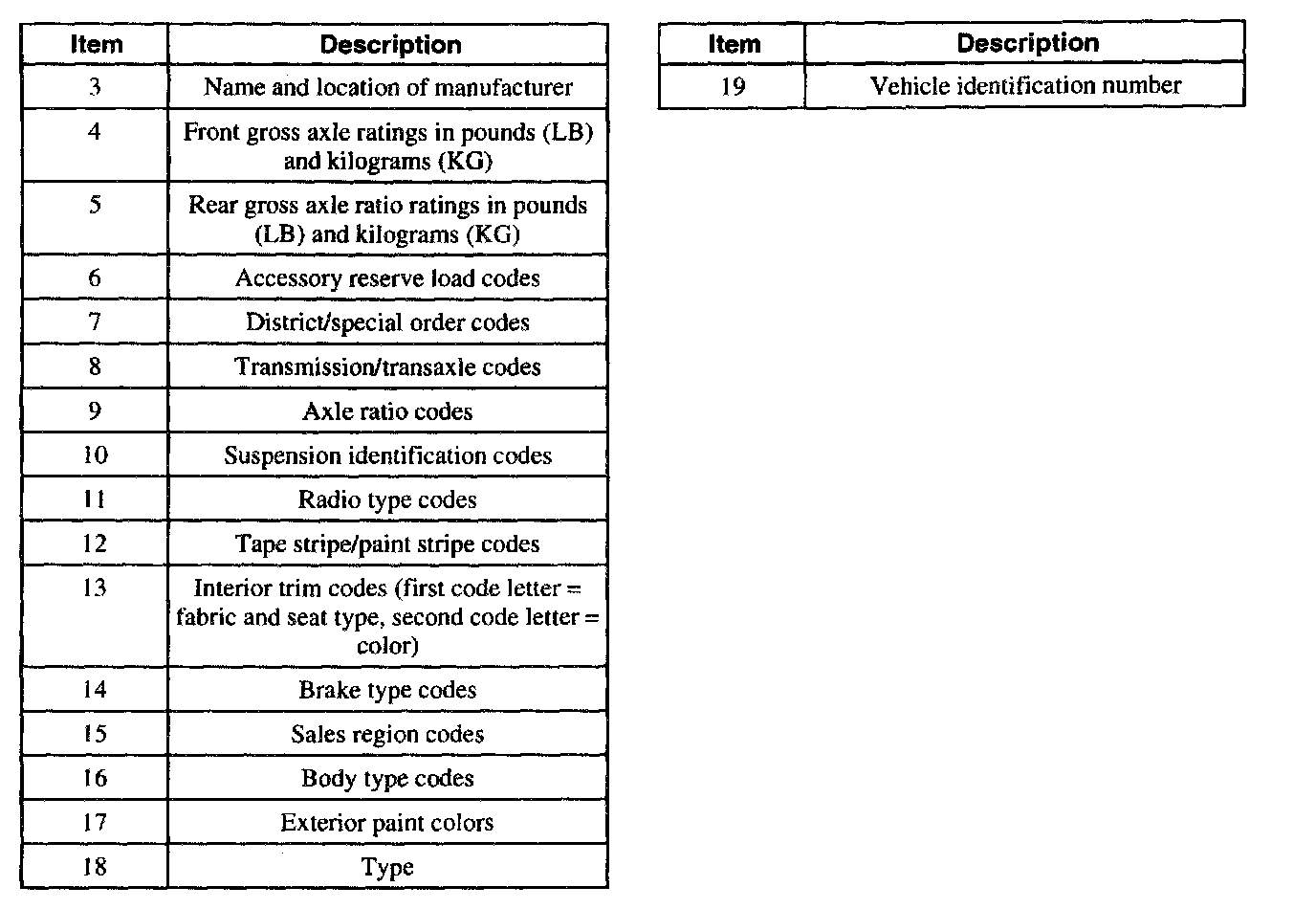

Vehicle Certification Label (Typical) Part 2:






The vehicle certification label also contains a 17 character vehicle identification number. This number is used for warranty identification of the vehicle.
