Windshield Wiper Motor

REMOVAL







1. Remove the wiper arms.
1. Lift up the plastic covers.
2. Remove the nuts.

NOTE: Make sure that the wiper motor is in the park position.

2. Open the hood.

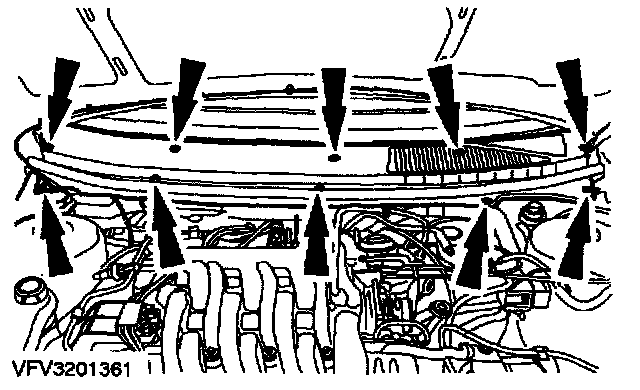

3. Remove the cowl grille.
^ Remove the screw covers.
^ Remove the bolts.
^ Remove the weatherseal.
^ Disconnect the cowl grille at the rear and remove it.

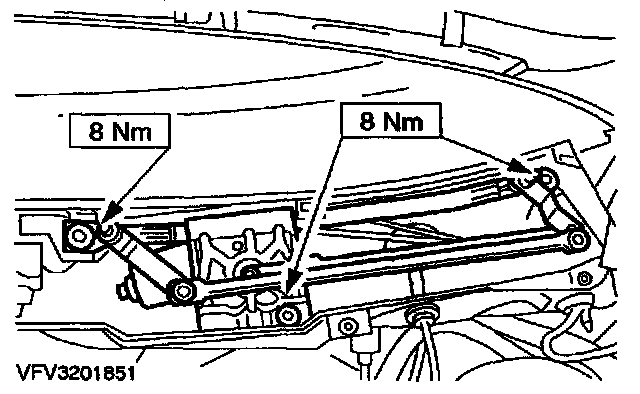

4. Remove the wiper motor with the linkage and disconnect the wiper motor electrical connector.

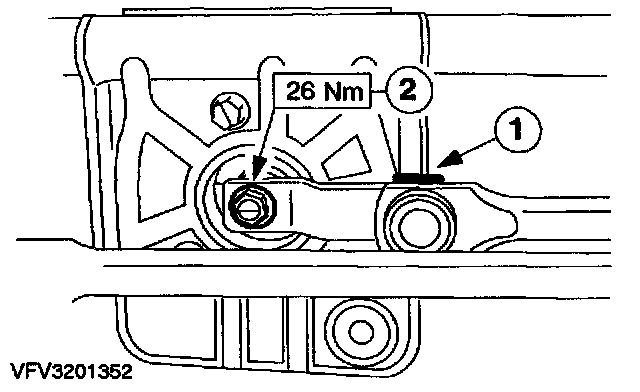

5. Mark the position of the wiper crank (1) and remove the nut (2).
6. Remove the wiper crank by moving up and down.

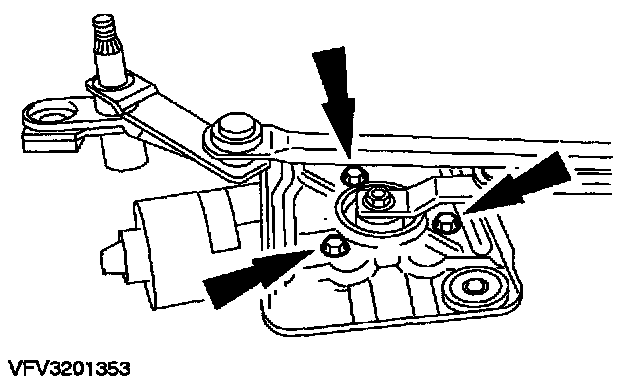

7. Remove the bolts.

INSTALLATION

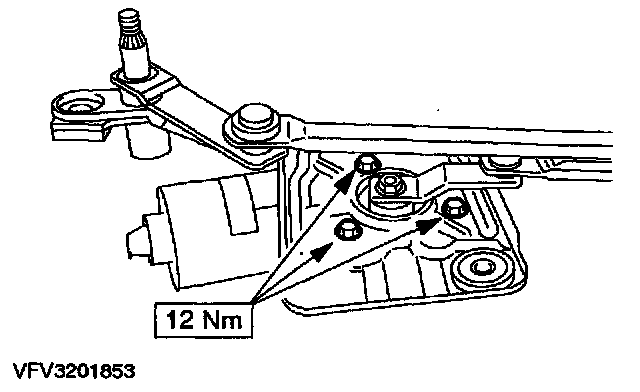

1. To install reverse the removal procedure.
