Test F: Wash/Wipe Function Does Not Operate Correctly - Front
Test F: Wash/Wipe Function Does Not Operate Correctly - Front

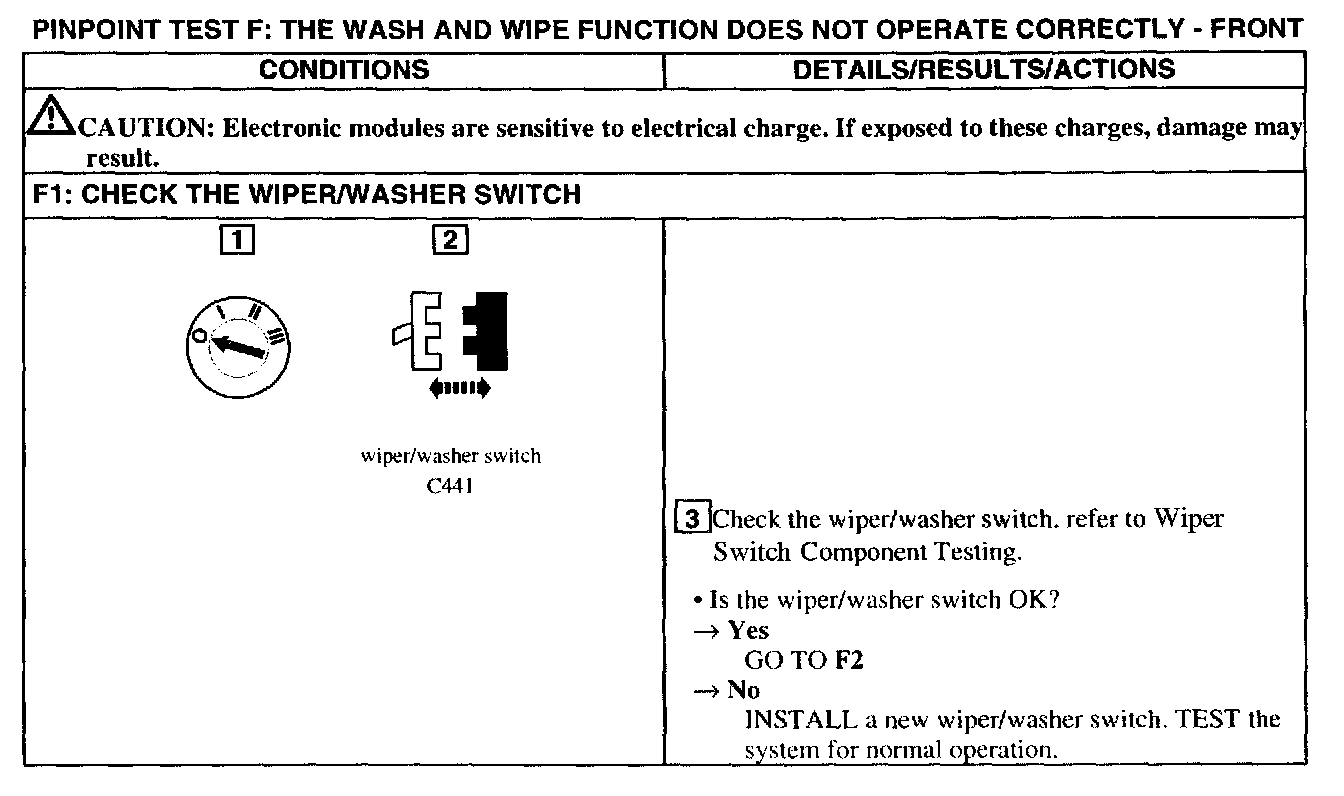

F1:

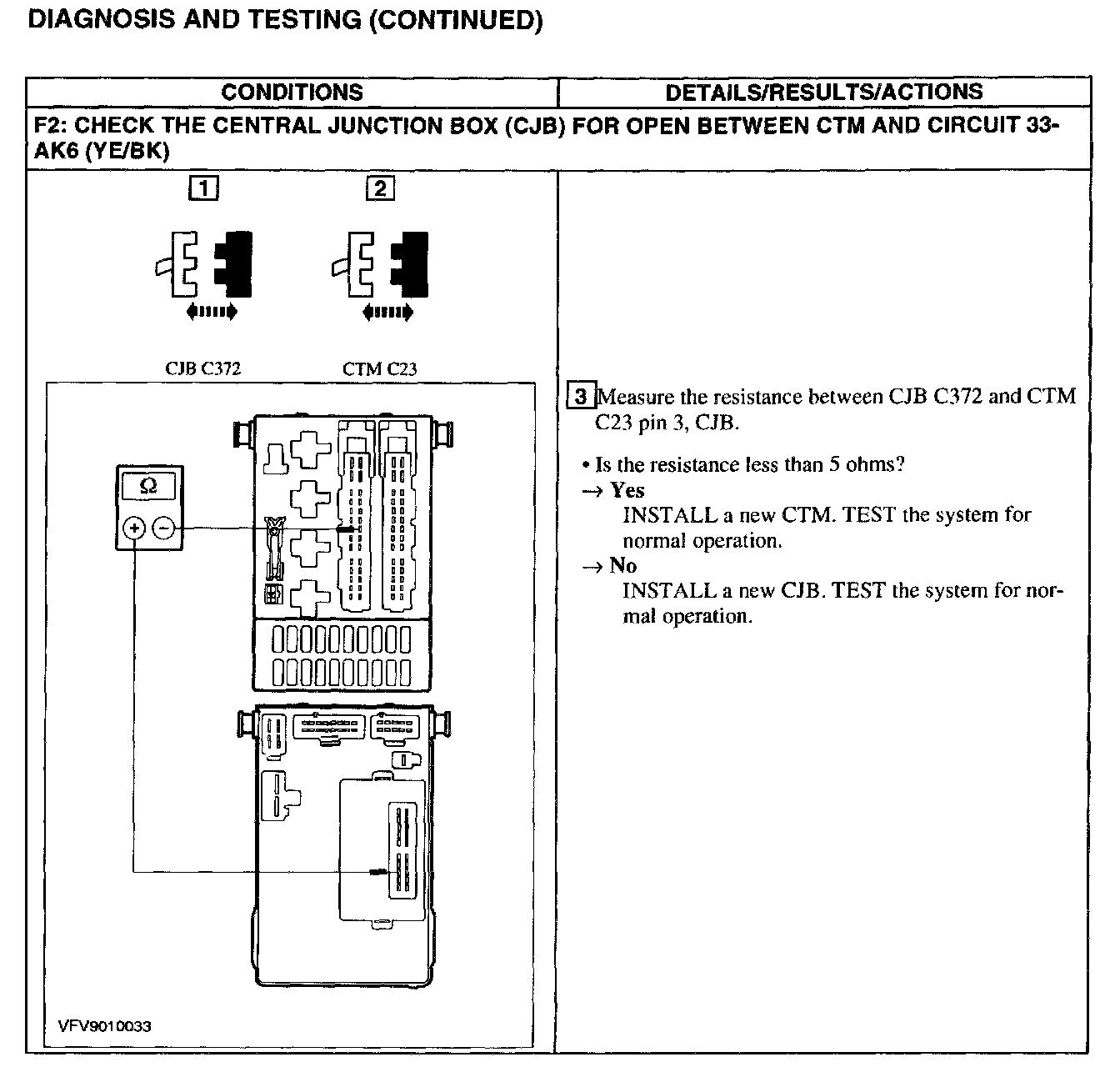

F2:
