Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection >> Manual Transmission and Clutch >> Pinpoint Tests >> Test B: Clutch Chatter or Shudder

Test B: Clutch Chatter or Shudder

PINPOINT TEST B: CLUTCH CHATTER OR SHUDDER

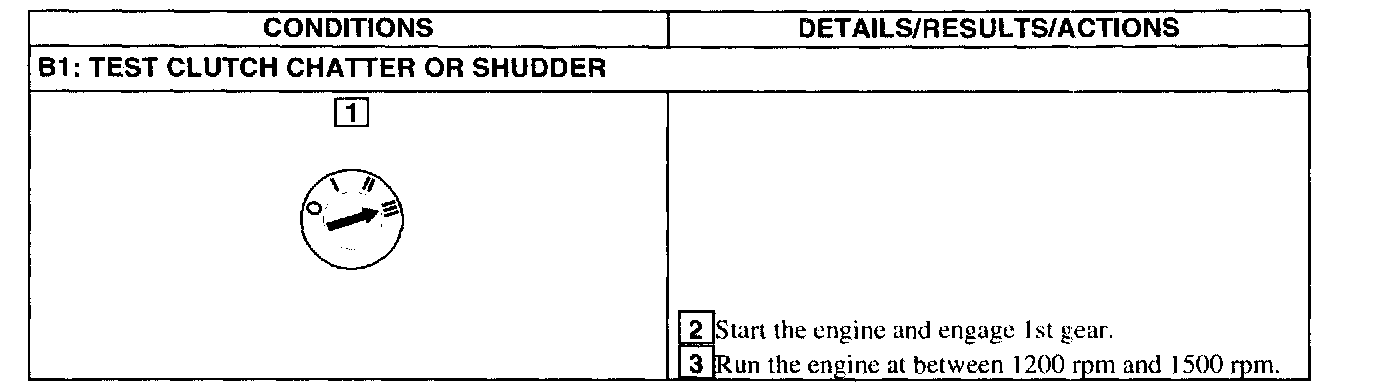

B1

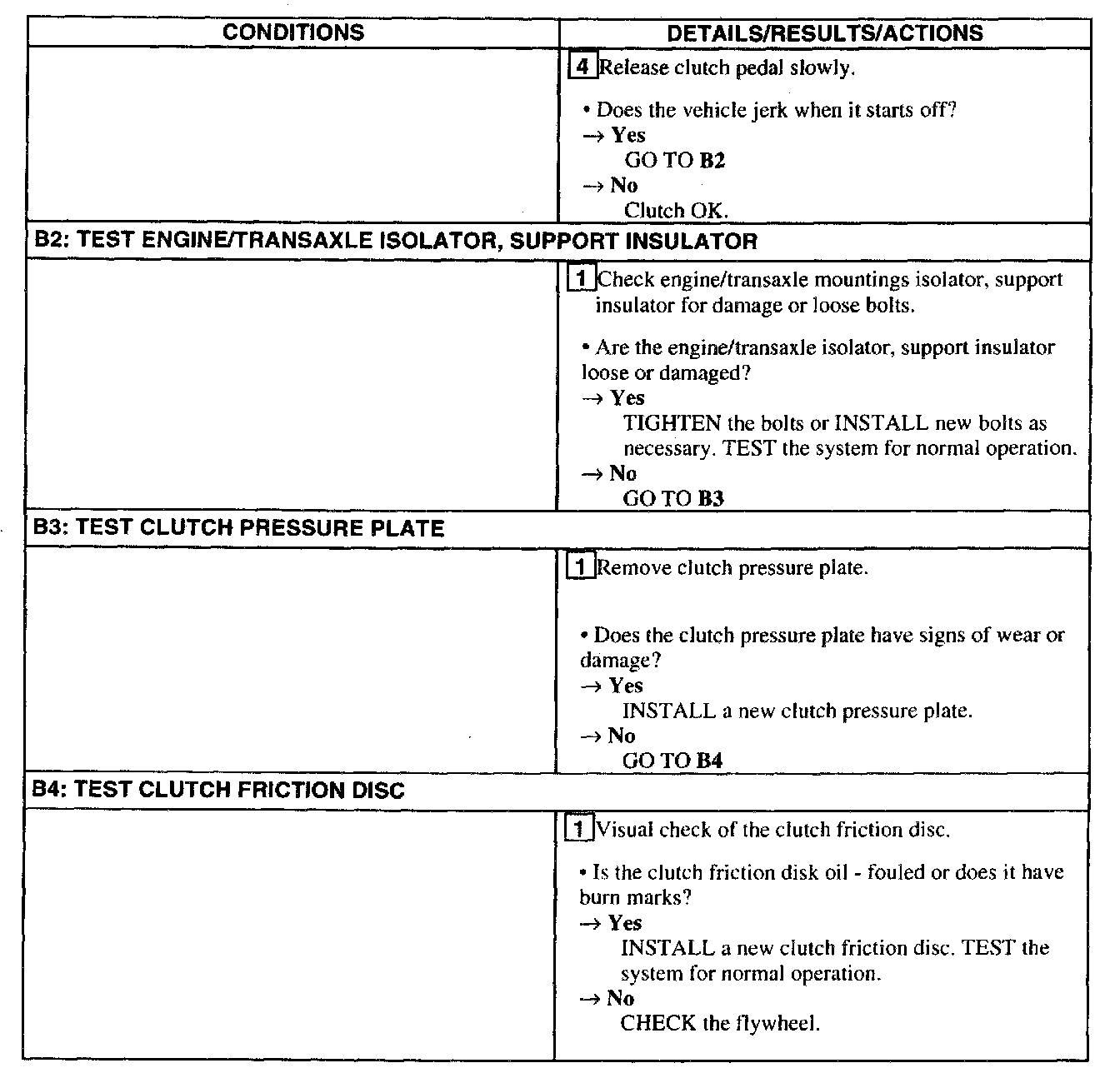

B2 - B4
