Transaxle Rear Support Insulator Vehicles

Transaxle Rear Support Insulator Vehicles with 2.0L Engine








Removal

1. NOTE: The locations of the engine mountings and engine support insulators are described looking from the transaxle to the engine.

Remove the Air Cleaner (ACL).

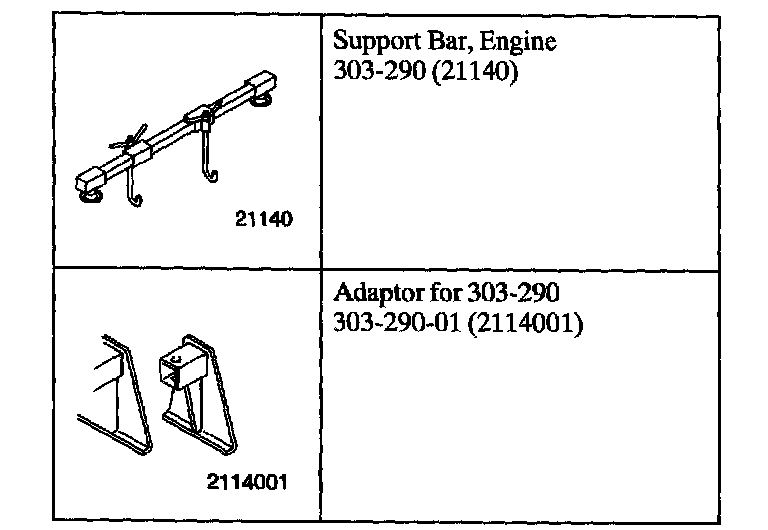

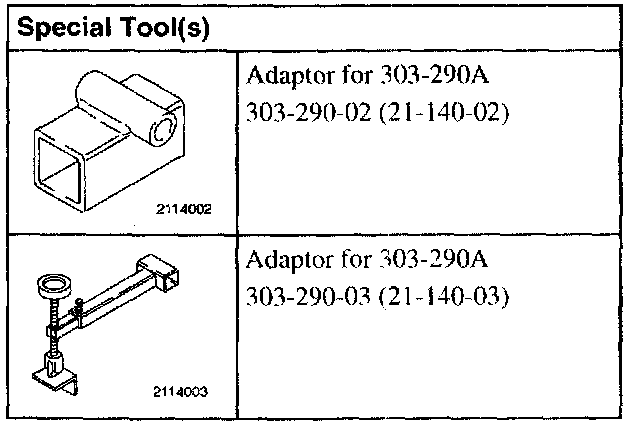

3. Install the special tool.

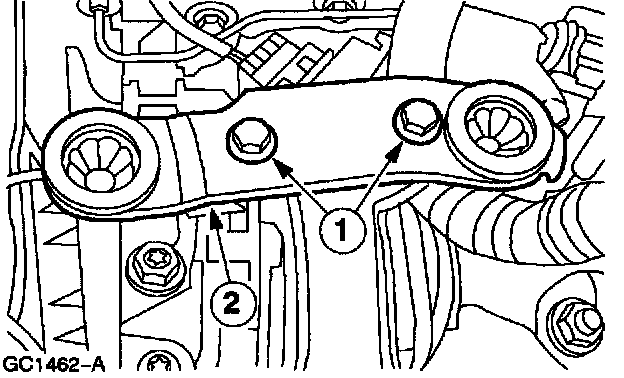

4. Remove the air cleaner bracket.
1. Remove the bolts.
2. Remove the bracket

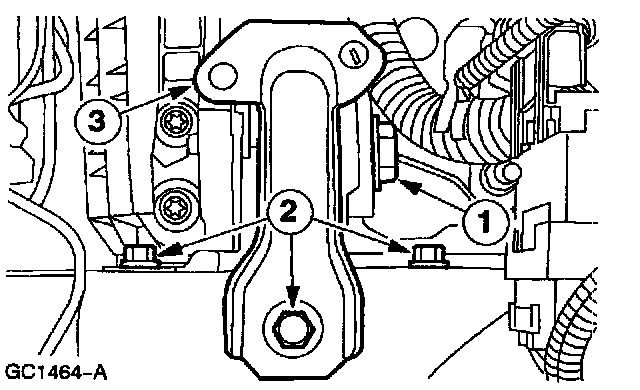

5. Remove the support insulator.
1. Remove the through bolt.
2. Remove the bolts.
3. Remove the insulator.

Installation








1. NOTE: Use new self-locking nuts.

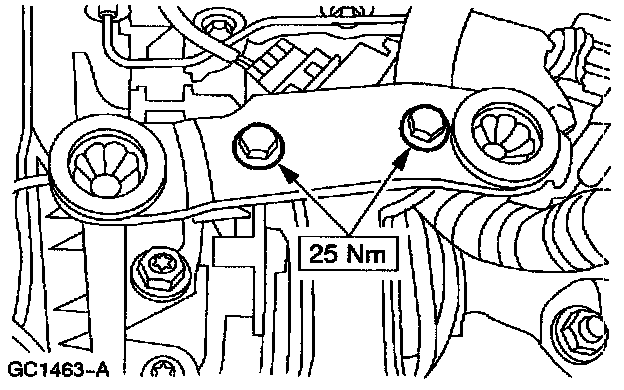

To install, reverse the removal procedure.
