Transaxle RH Support Insulator

Transaxle RH Support Insulator

Removal

1. NOTE: The locations of the engine mountings and engine support insulators are described looking from the engine to the transaxle.

Raise and support the vehicle.

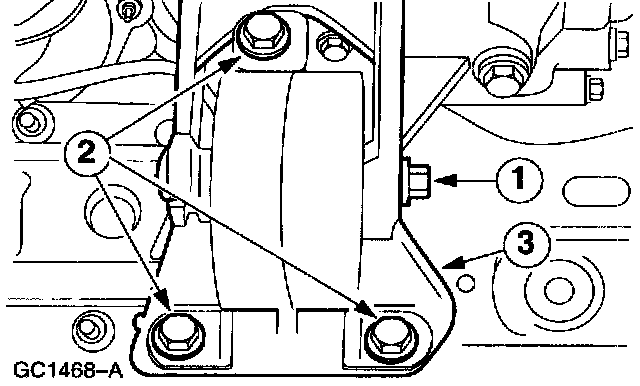

22. Remove the support insulator.
1. Remove the through bolt.
2. Remove the bolts.
3. Remove the insulator.

Installation

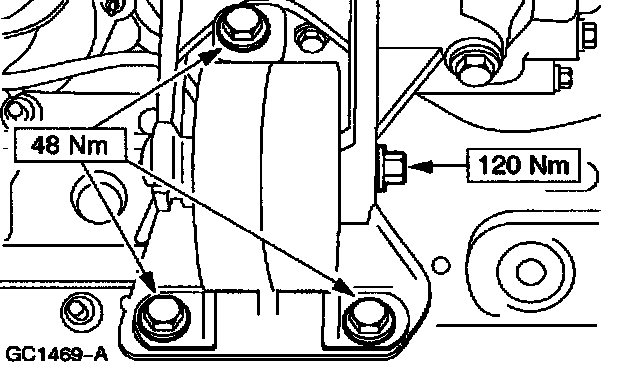

1. To install, reverse the removal procedure.
