Fill Procedure

Fill Procedure





1. Raise and support the vehicle.





2. Remove the fill plug.





3. Fill the transaxle to 0 - 5 mm below the lower edge of the fill plug bore.

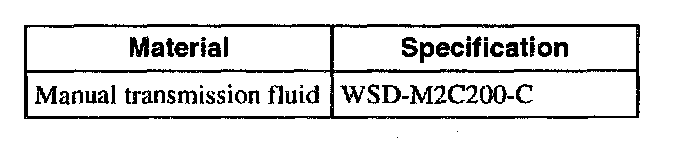

^ Fill manual transmission fluid.

MTX-75 Manual Transmission:

4. Install the fill plug.
5. Lower the vehicle.
