Manual Transaxle External Controls

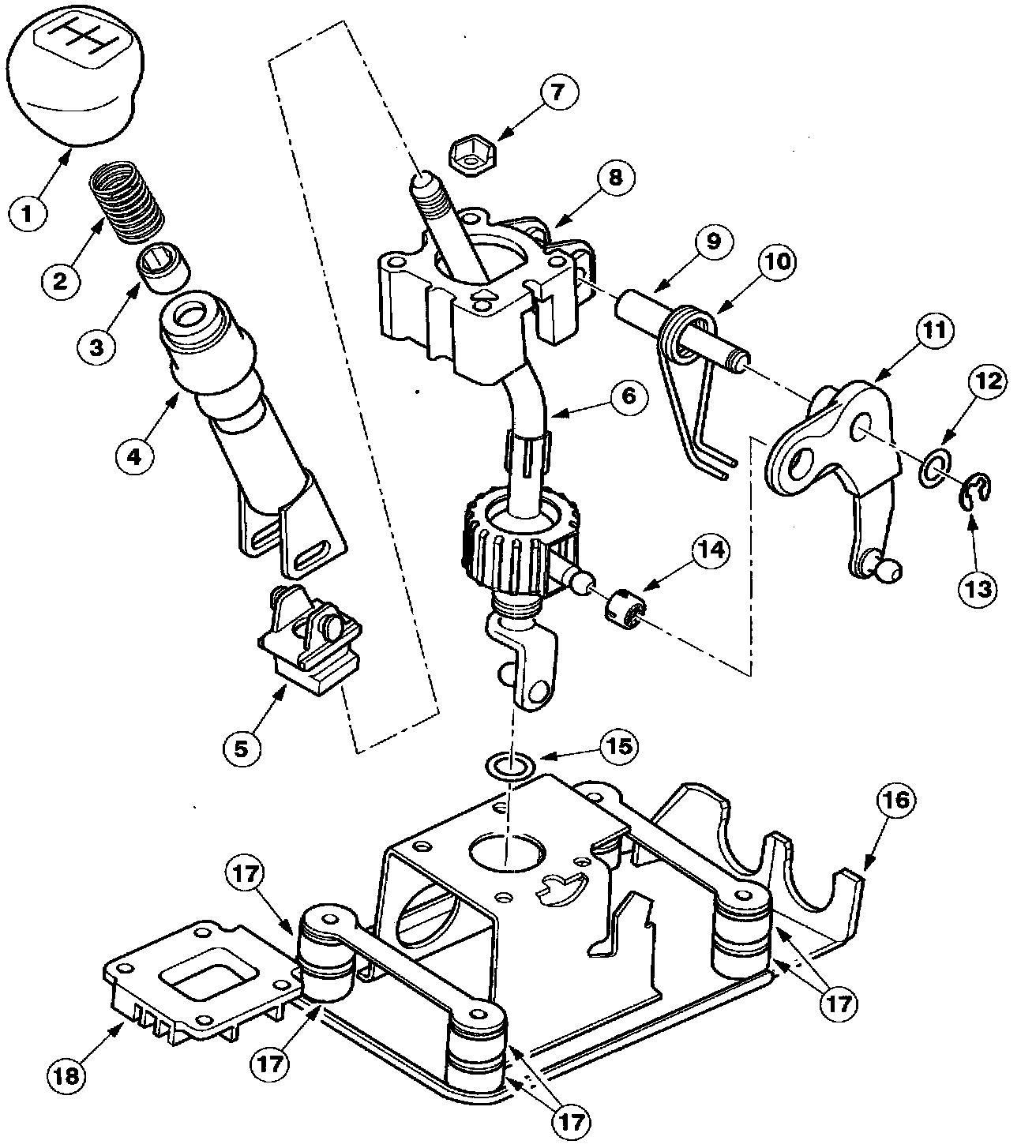

Gearshift Lever

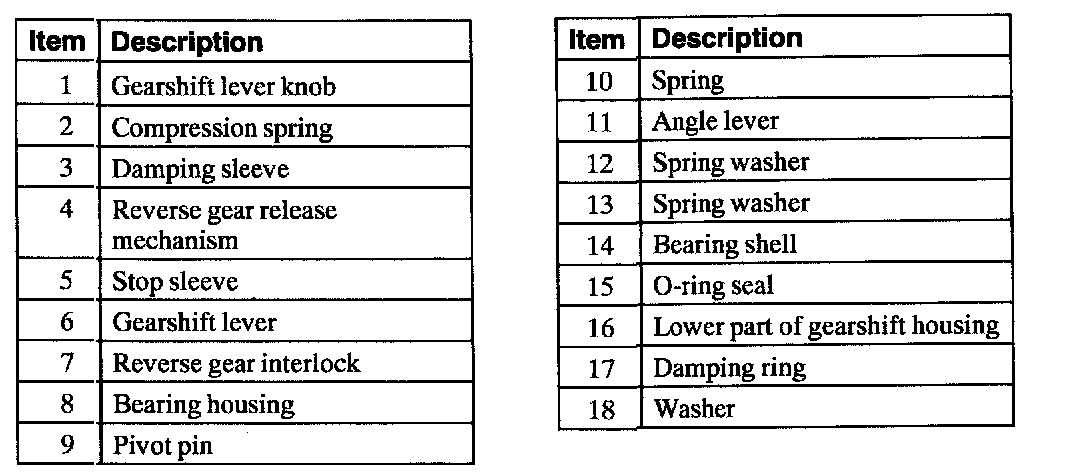

Part 1 of 2





Part 2 of 2

Disassembly

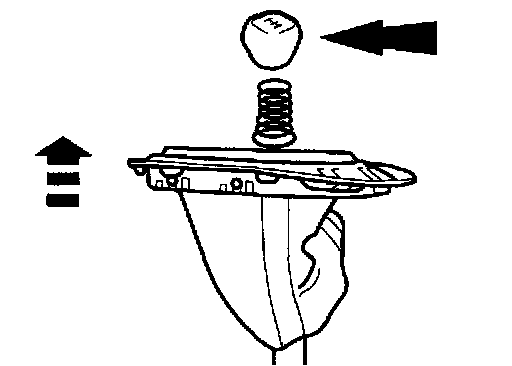

1. Unscrew the gearshift lever knob and remove the compression spring.
^ Remove the outer boot with the reverse gear release mechanism.





2. NOTE: Installation position of the spring.

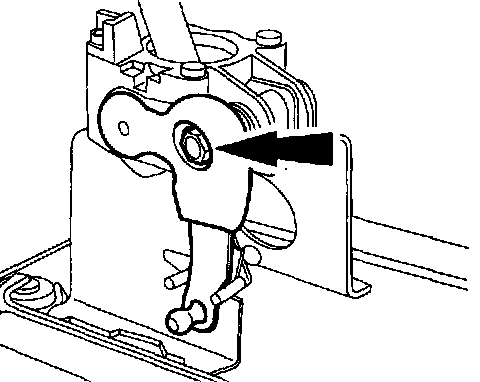

Disconnect the angle lever.
^ Remove the snap ring.

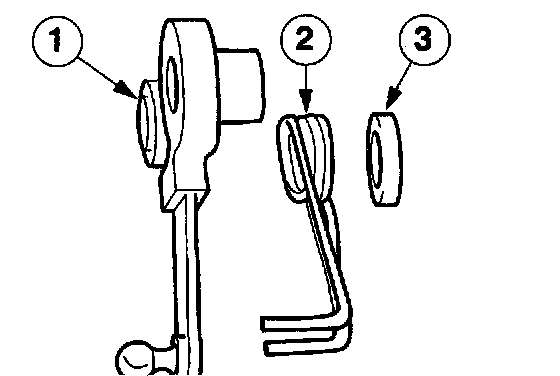

3. Disassemble the angle lever.
1. Angle lever
2. Spring
3. Shim

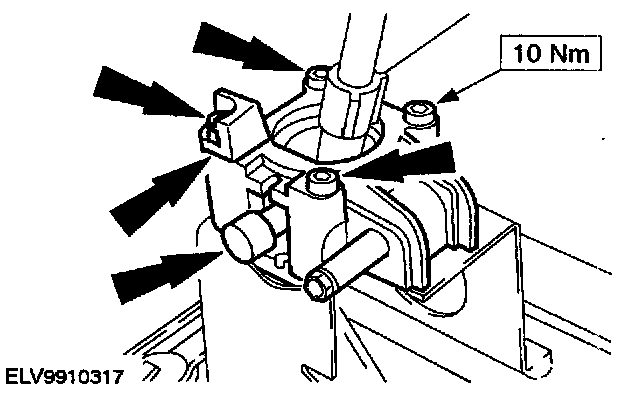

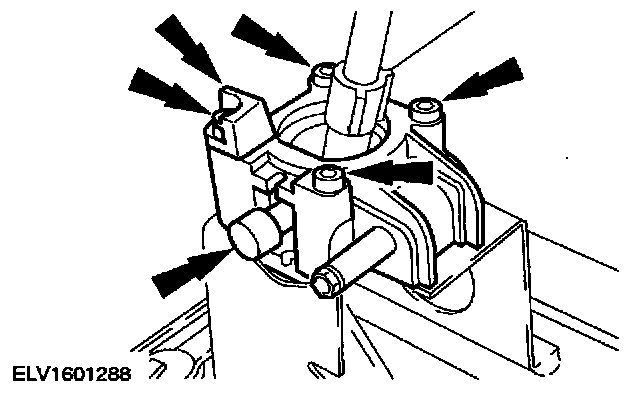

4. Remove the bearing housing with the washer, reverse gear interlock mechanism and bearing shell.





5. NOTE: Only if the threaded pins are damaged.

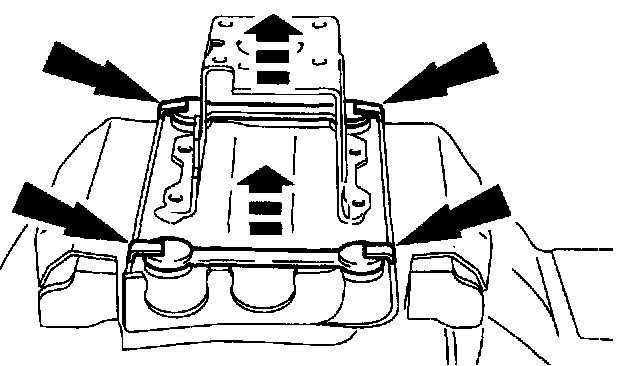

Bend the retaining tabs back and remove the retainers with the threaded pins.

Assembly





1. To install, reverse the removal procedure.
