227/327 - 228/328: Soft/Slip 2-3 Shift Only (Automatic)

SHIFT CONCERNS: SOFT/SLIP 2-3 SHIFT ONLY (AUTOMATIC)

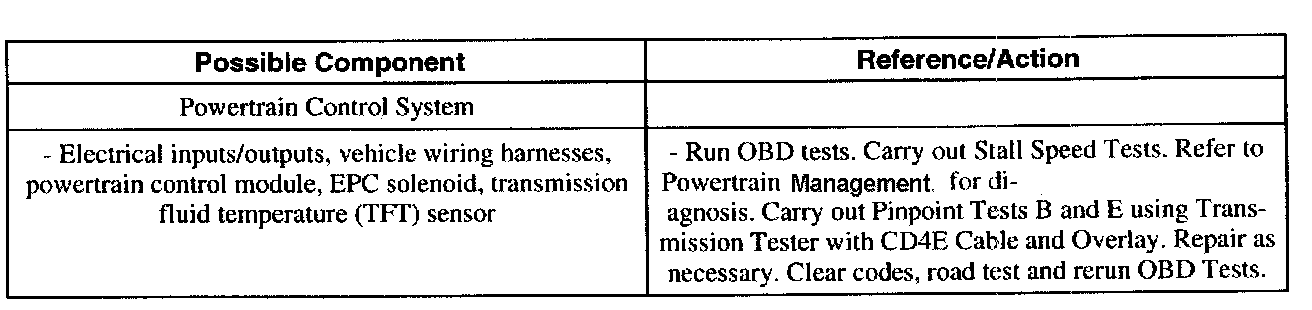

227 - Electrical Routine

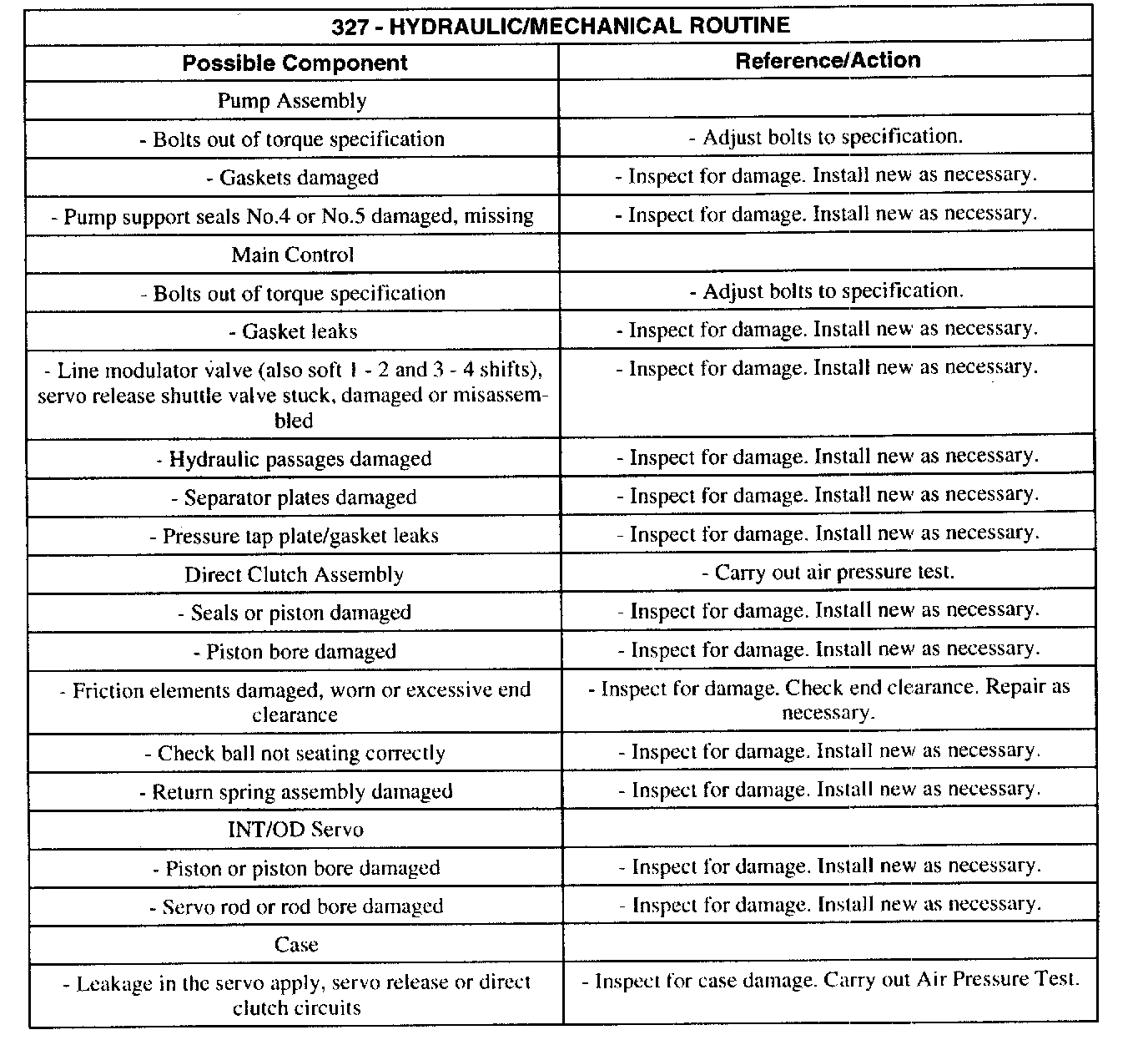

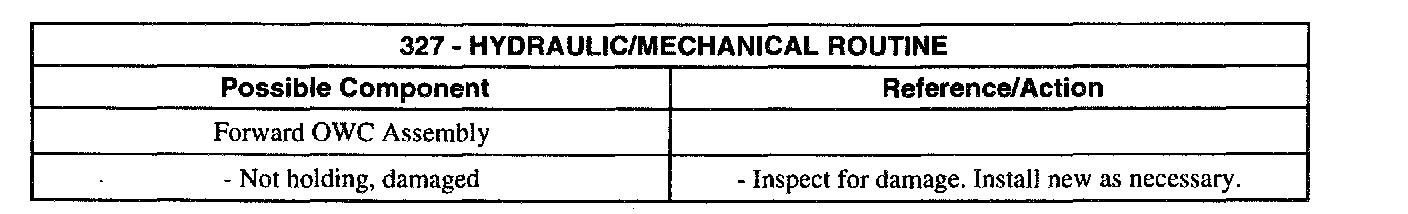

327 - Hydraulic/Mechanical Routine

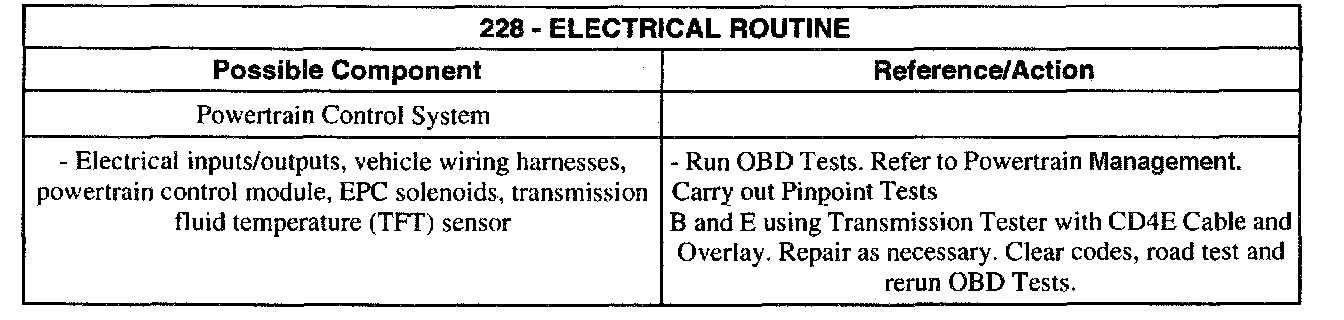

228 - Electrical Routine

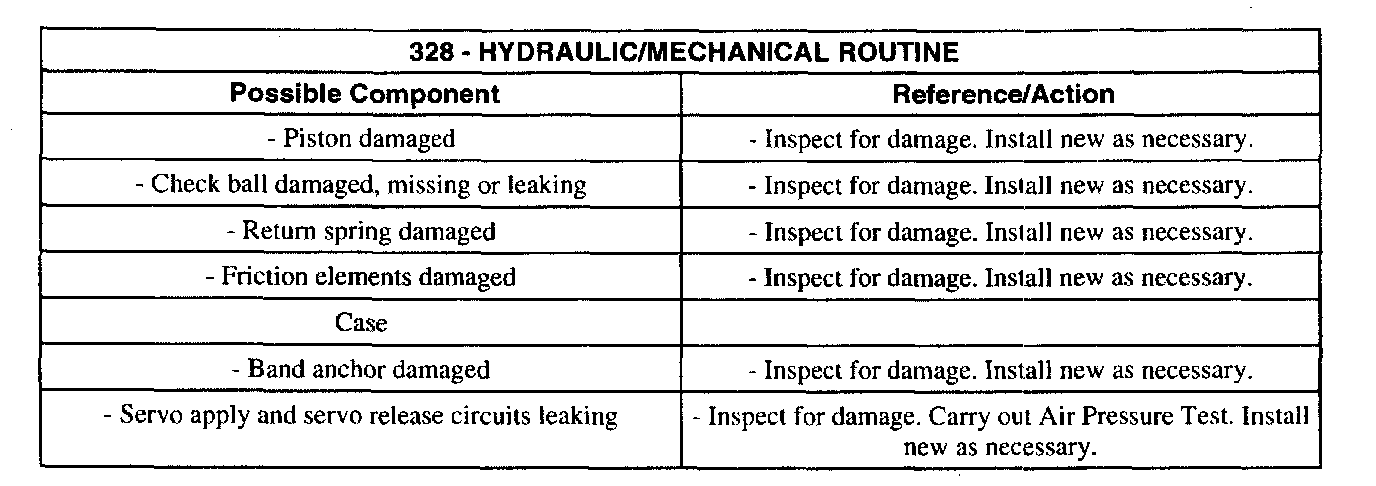

328 - Hydraulic/Mechanical Routine
