226/326: Soft/Slip 1-2 Shift Only (Automatic)

SHIFT CONCERNS: SOFT/SLIP 1-2 SHIFT ONLY (AUTOMATIC)

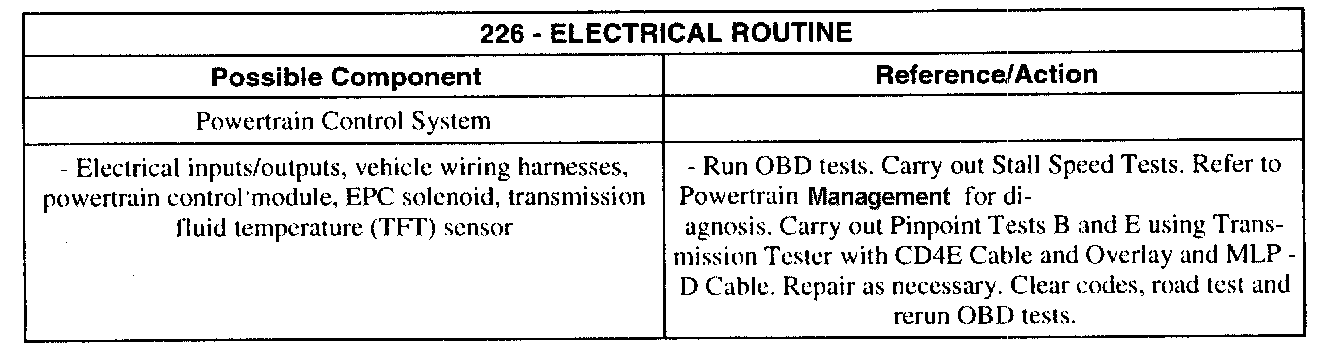

226 - Electrical Routine

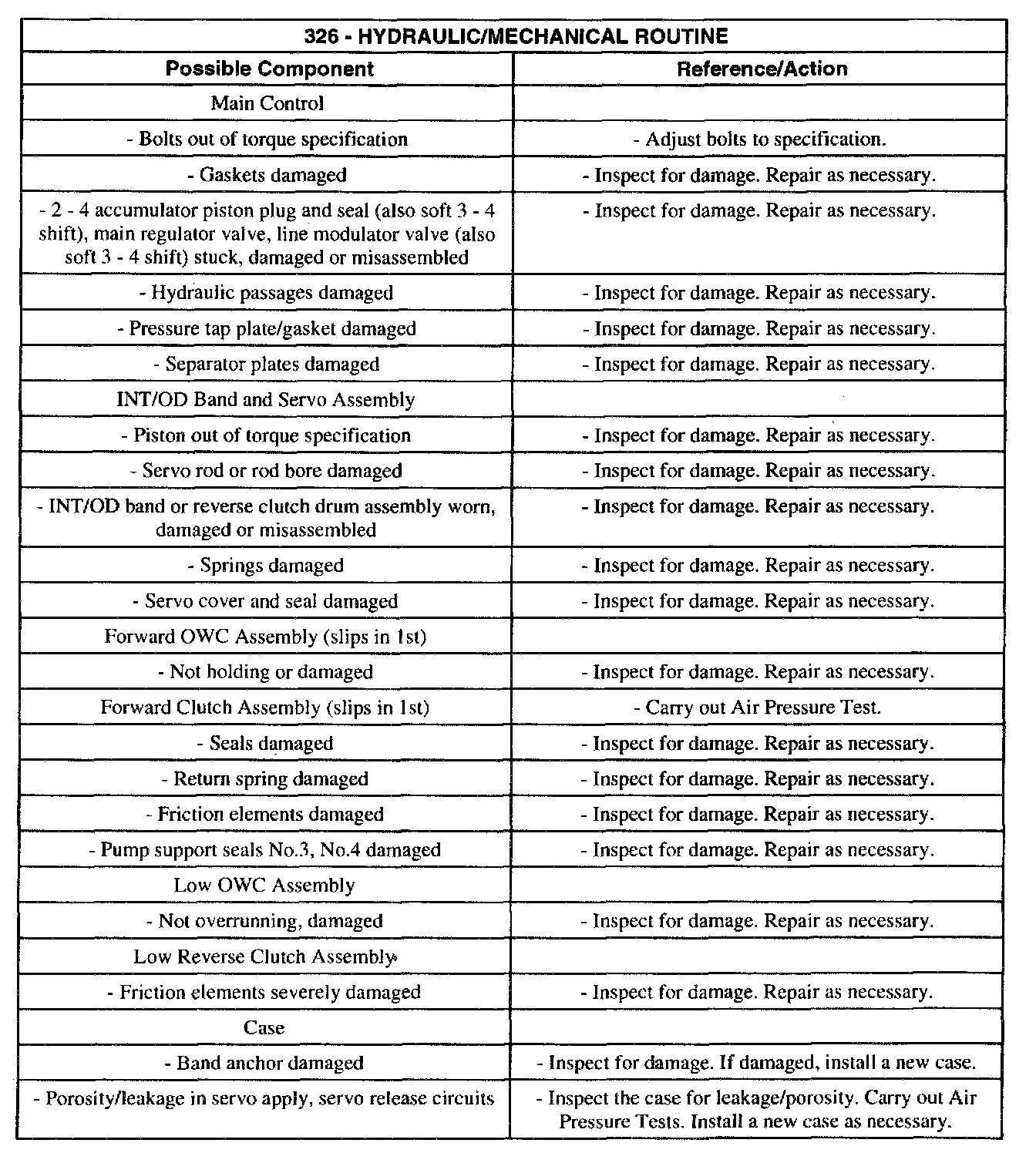

326 - Hydraulic/Mechanical Routine
