222/322: No 3-4 Shift

SHIFT CONCERNS: NO 3-4 SHIFT (AUTOMATIC)

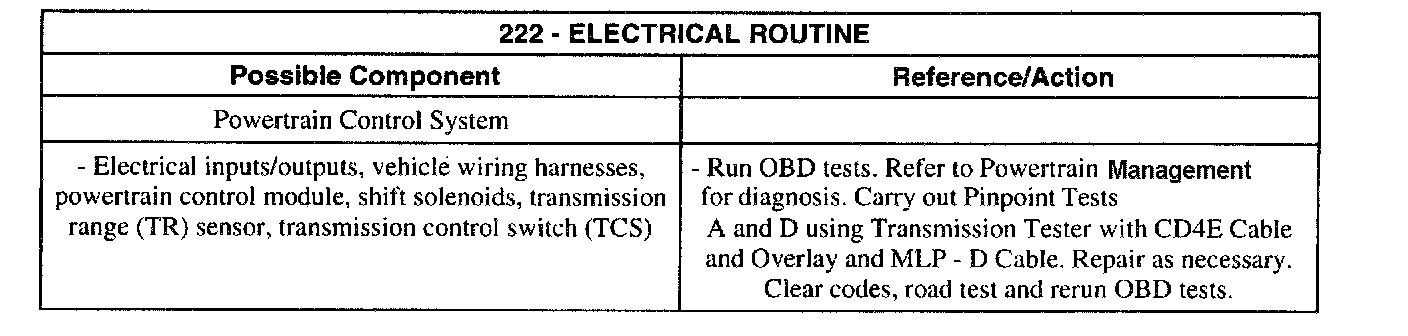

222 - Electrical Routine

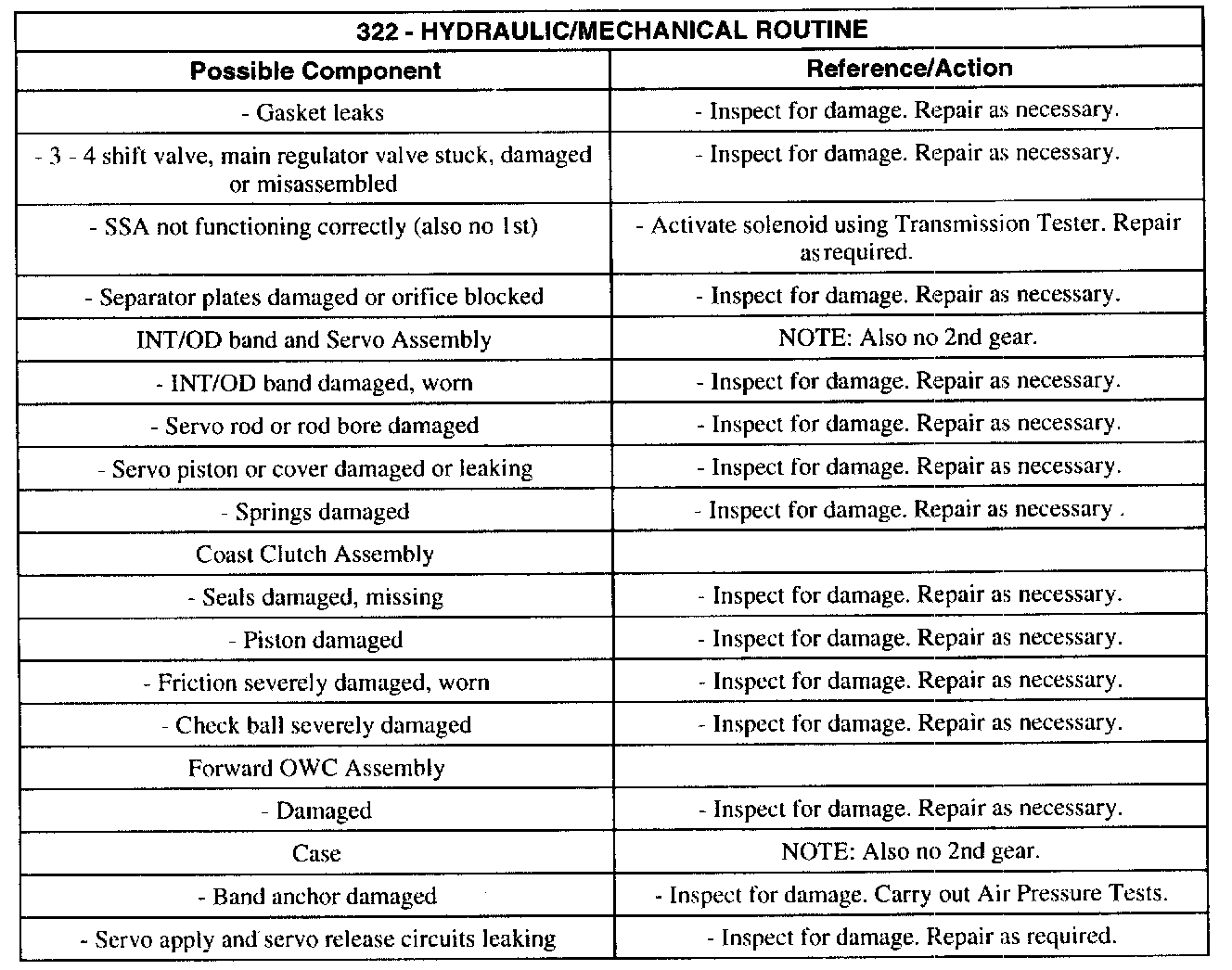

322 - Hydraulic/Mechanical Routine
