221/321: No 2-3 Shift

SHIFT CONCERNS: NO 2-3 SHIFT (AUTOMATIC)

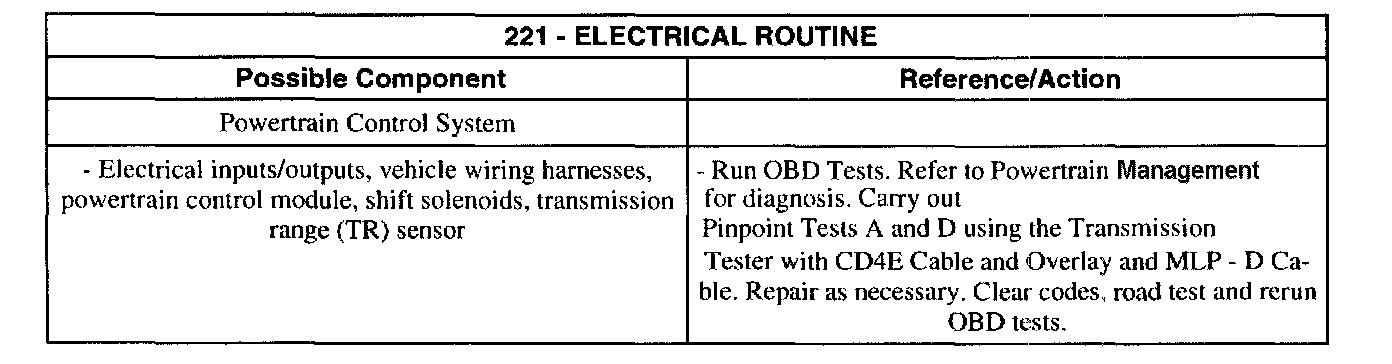

221 - Electrical Routine

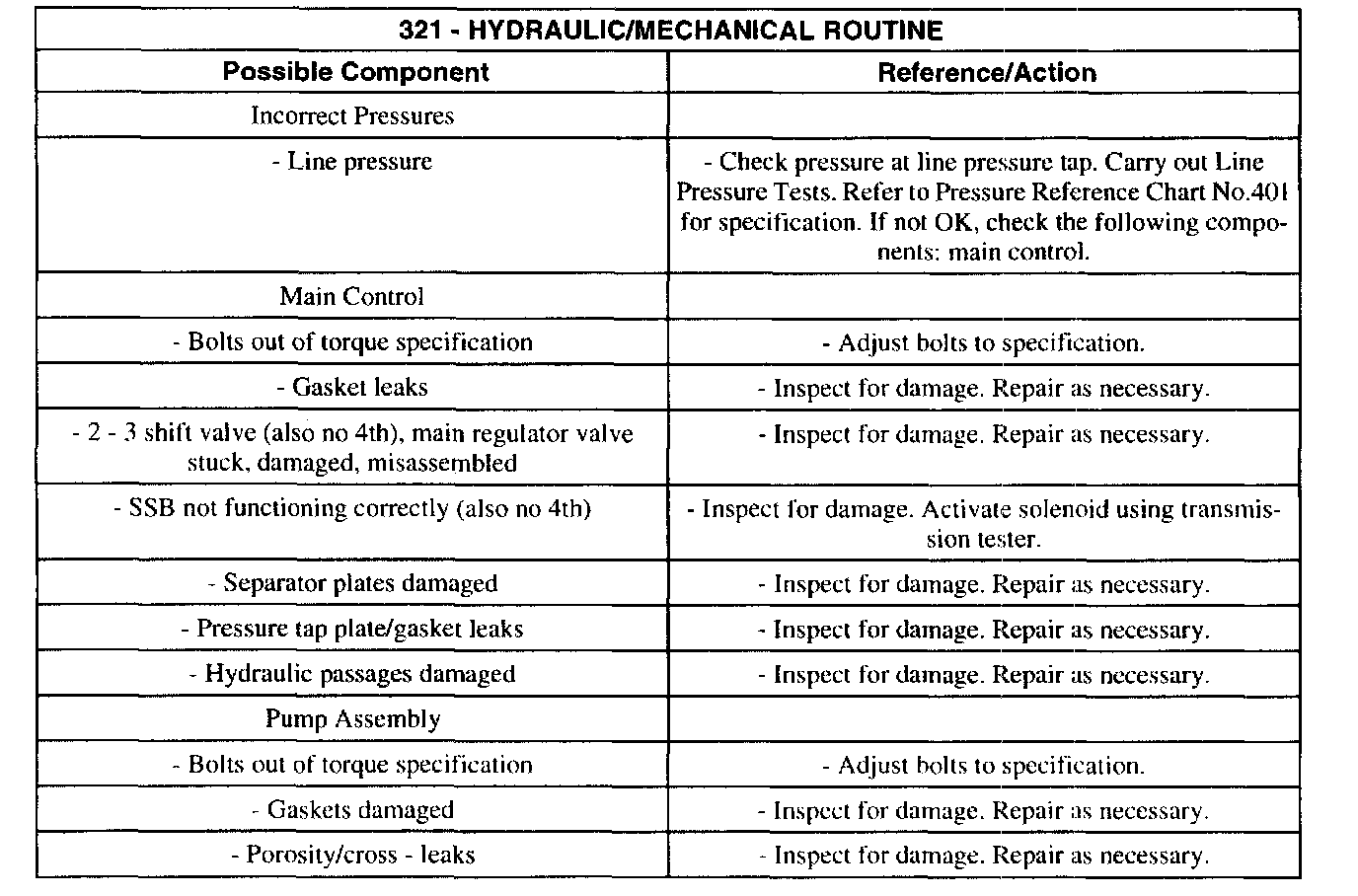

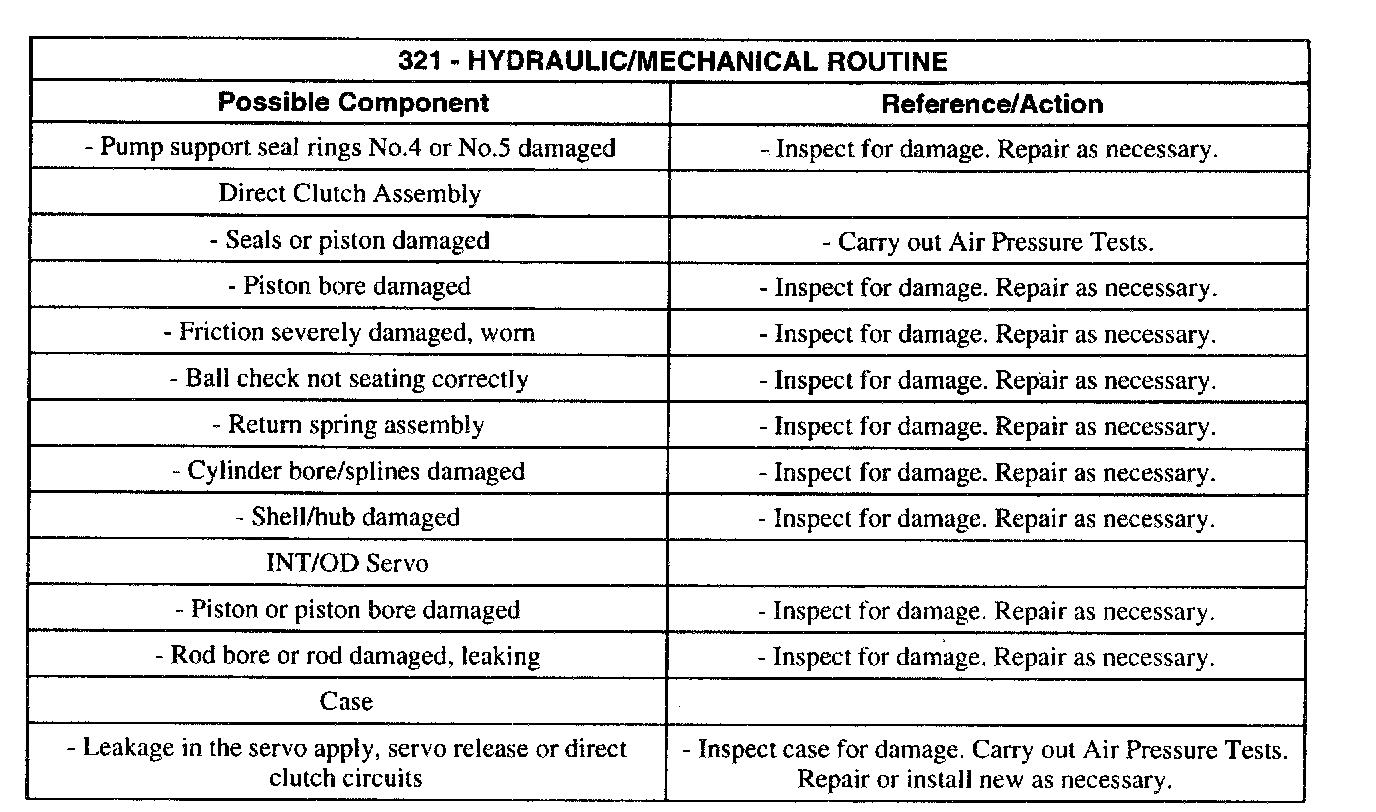

321 - Hydraulic/Mechanical Routine
