Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Shift Concerns >> 220/320: No 1-2 Shift

220/320: No 1-2 Shift

SHIFT CONCERNS: NO 1-2 SHIFT(AUTOMATIC)

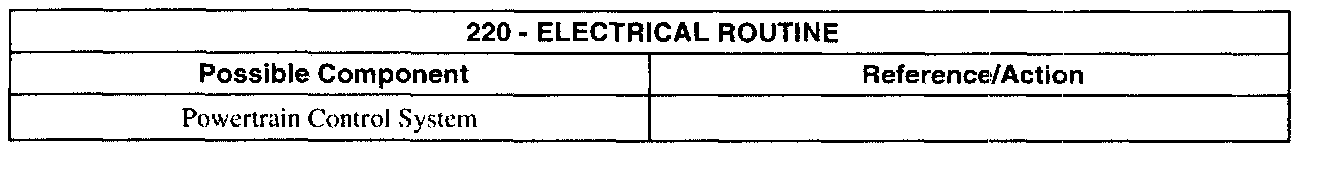

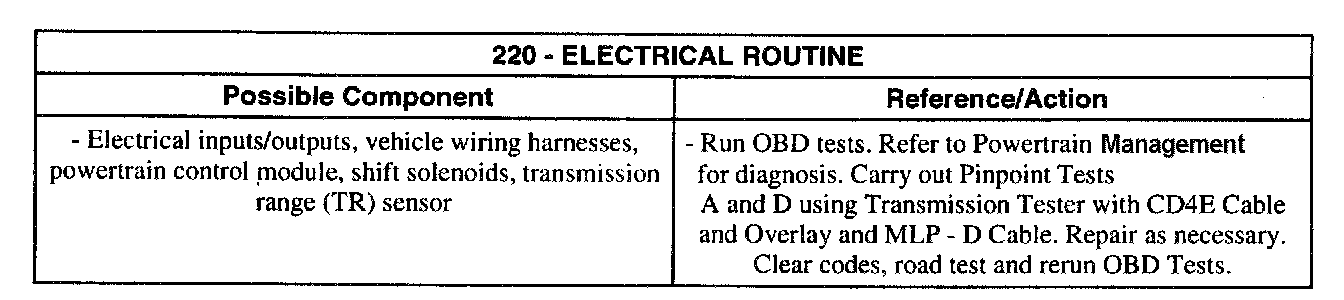

220 - Electrical Routine

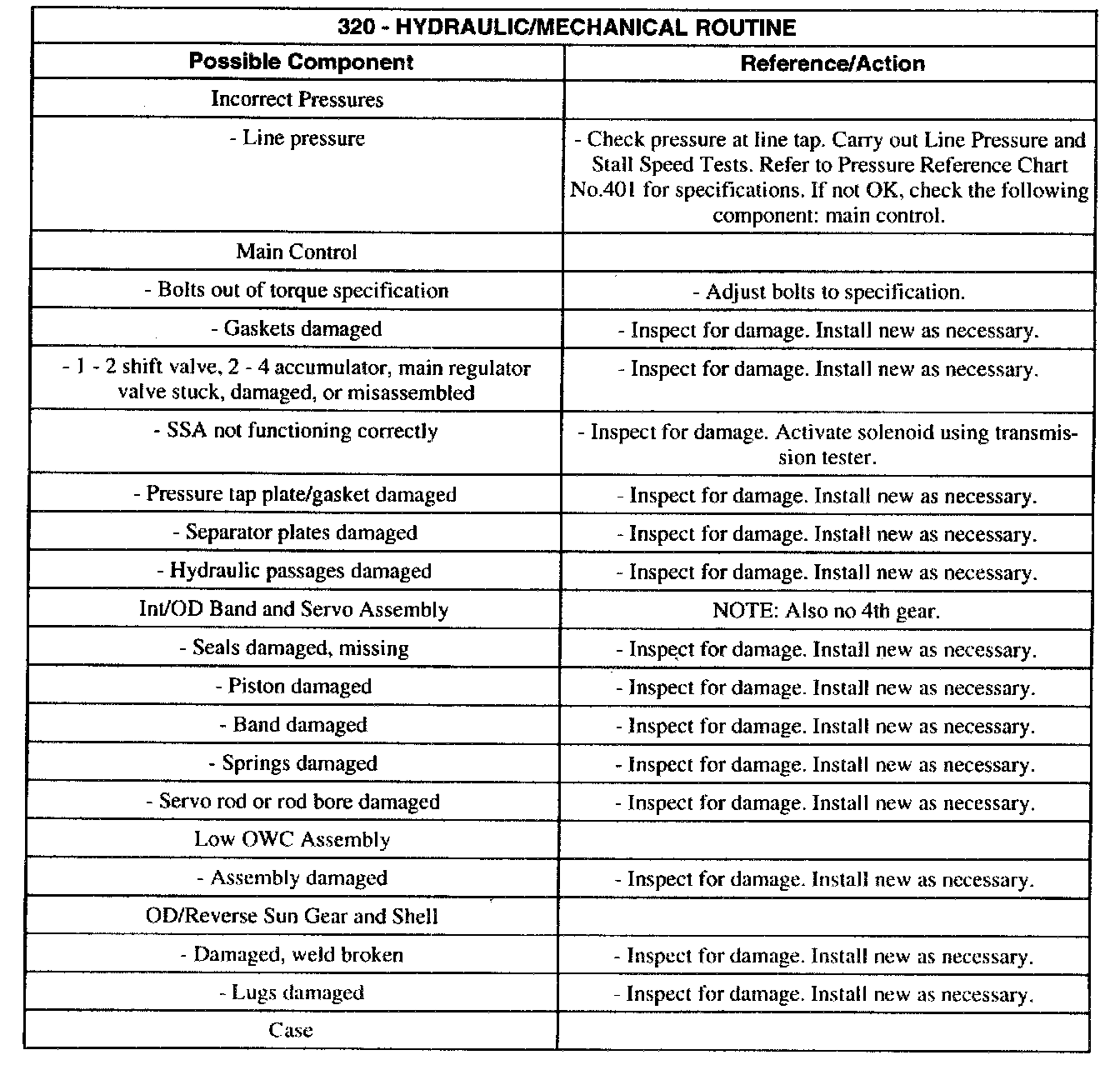

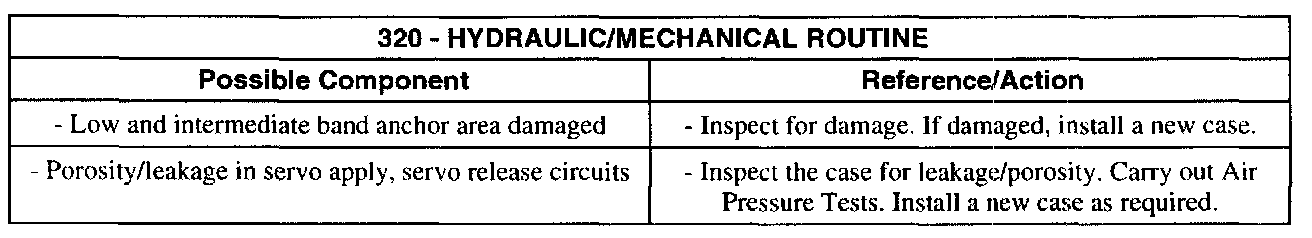

320 - Hydraulic/Mechanical Routine
