CD4E
>>
Shift Concerns
>>
215/315: No 1ST Gear, Engages In Higher Gear ("D" Position)
215/315: No 1ST Gear, Engages In Higher Gear ("D" Position)
SHIFT CONCERNS: NO 1ST GEAR ENGAGES IN HIGHER GEAR ("D" POSITION)

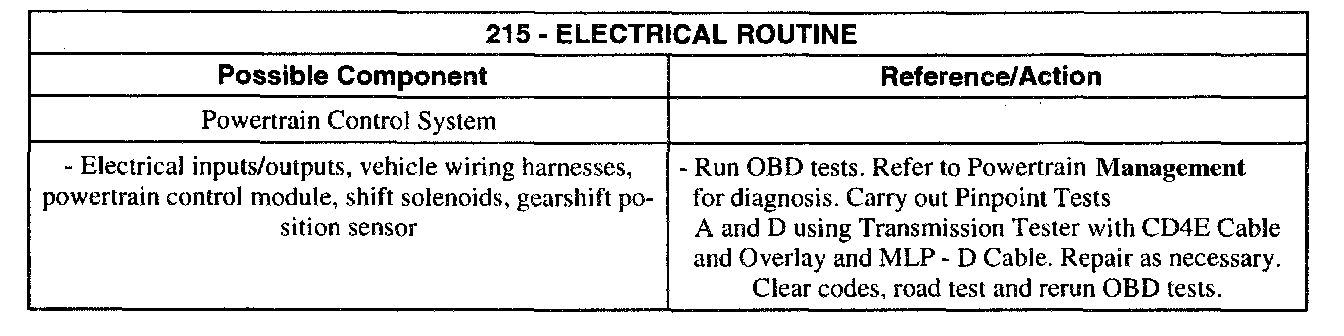

215 - Electrical Routine

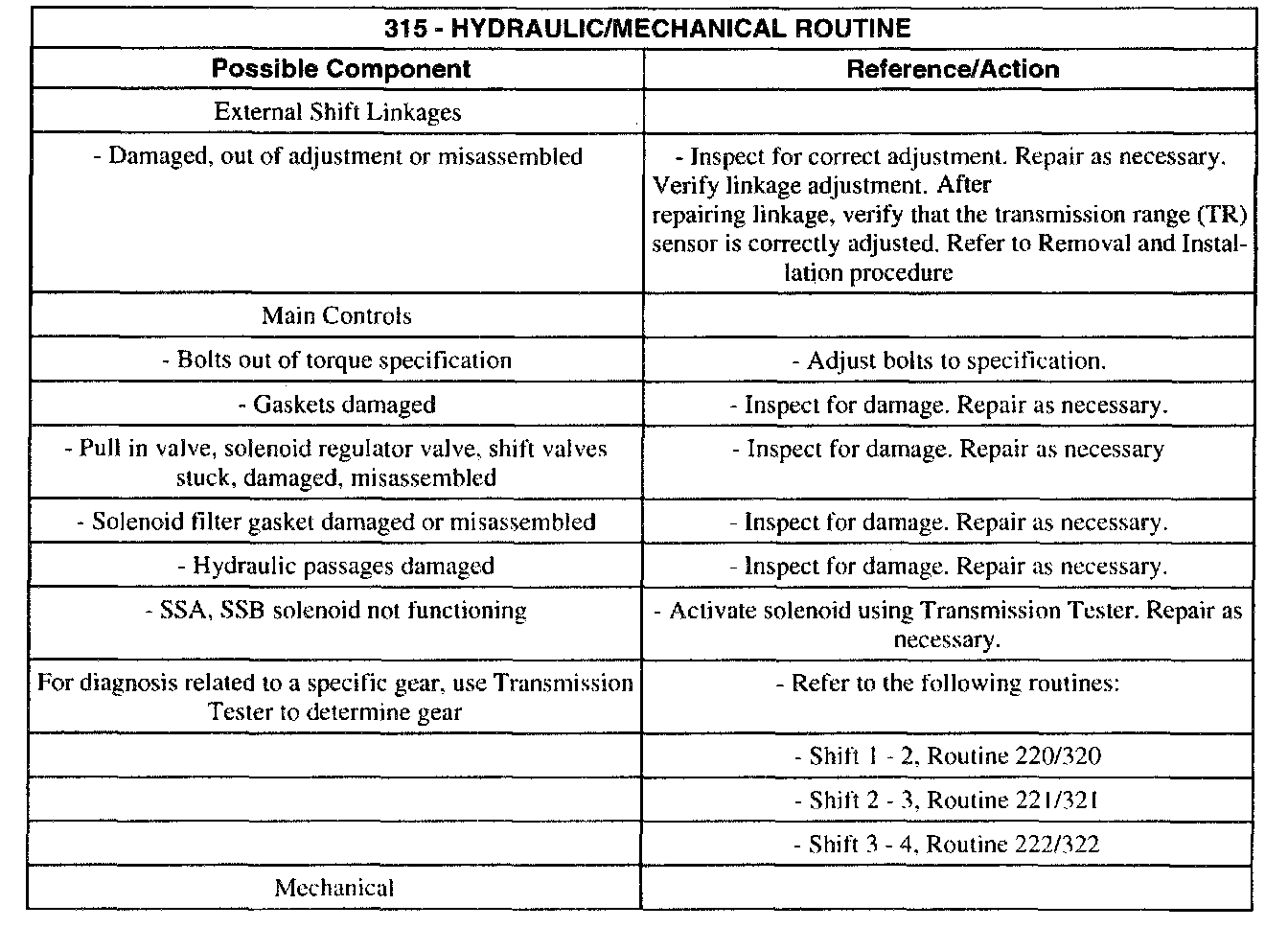

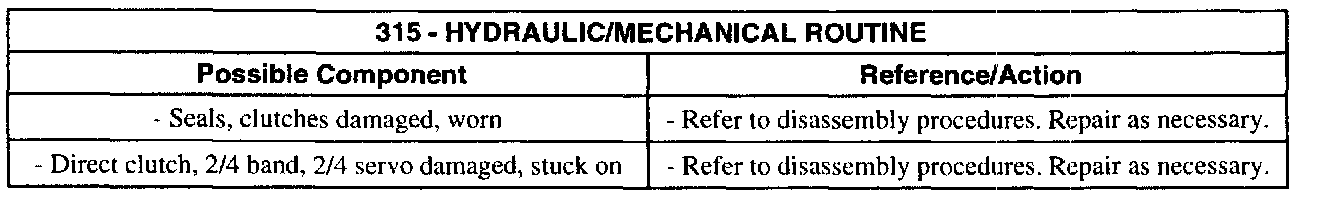

315 - Hydraulic/Mechanical Routine
