Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CD4E >> Engagement Concerns >> 207/307: No Forward and No Reverse

207/307: No Forward and No Reverse

ENGAGEMENT CONCERN: NO FORWARD AND NO REVERSE

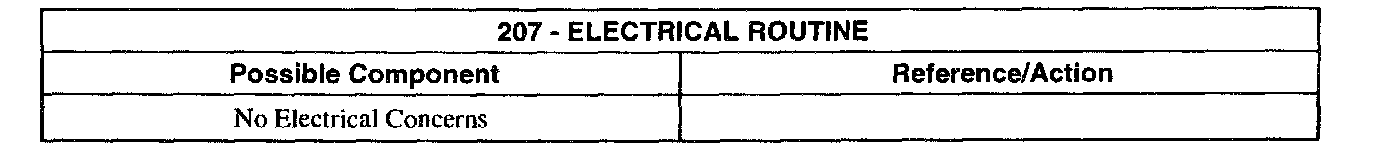

207 - Electrical Routine






Part 1 of 3





Part 2 of 3





Part 3 of 3

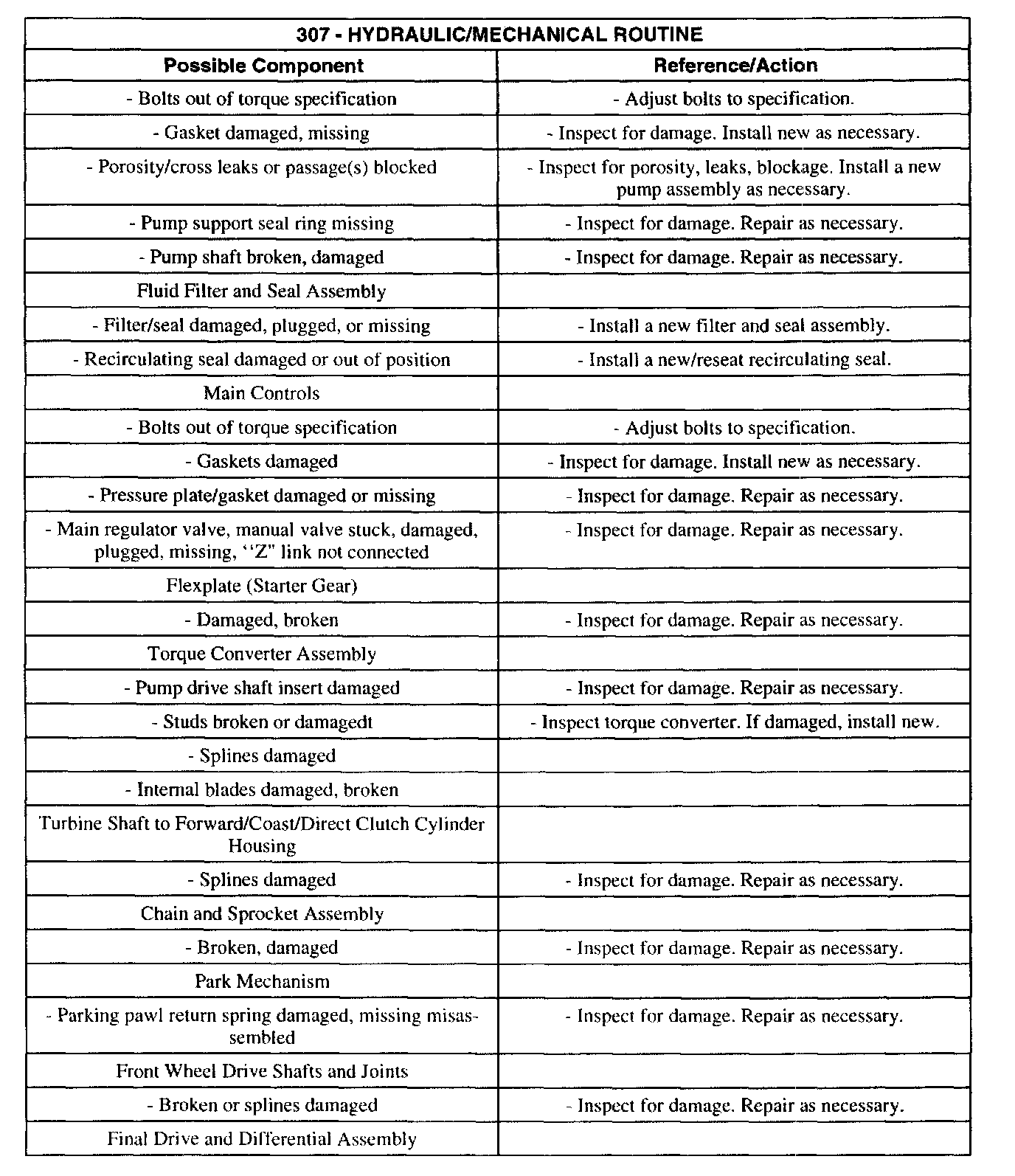

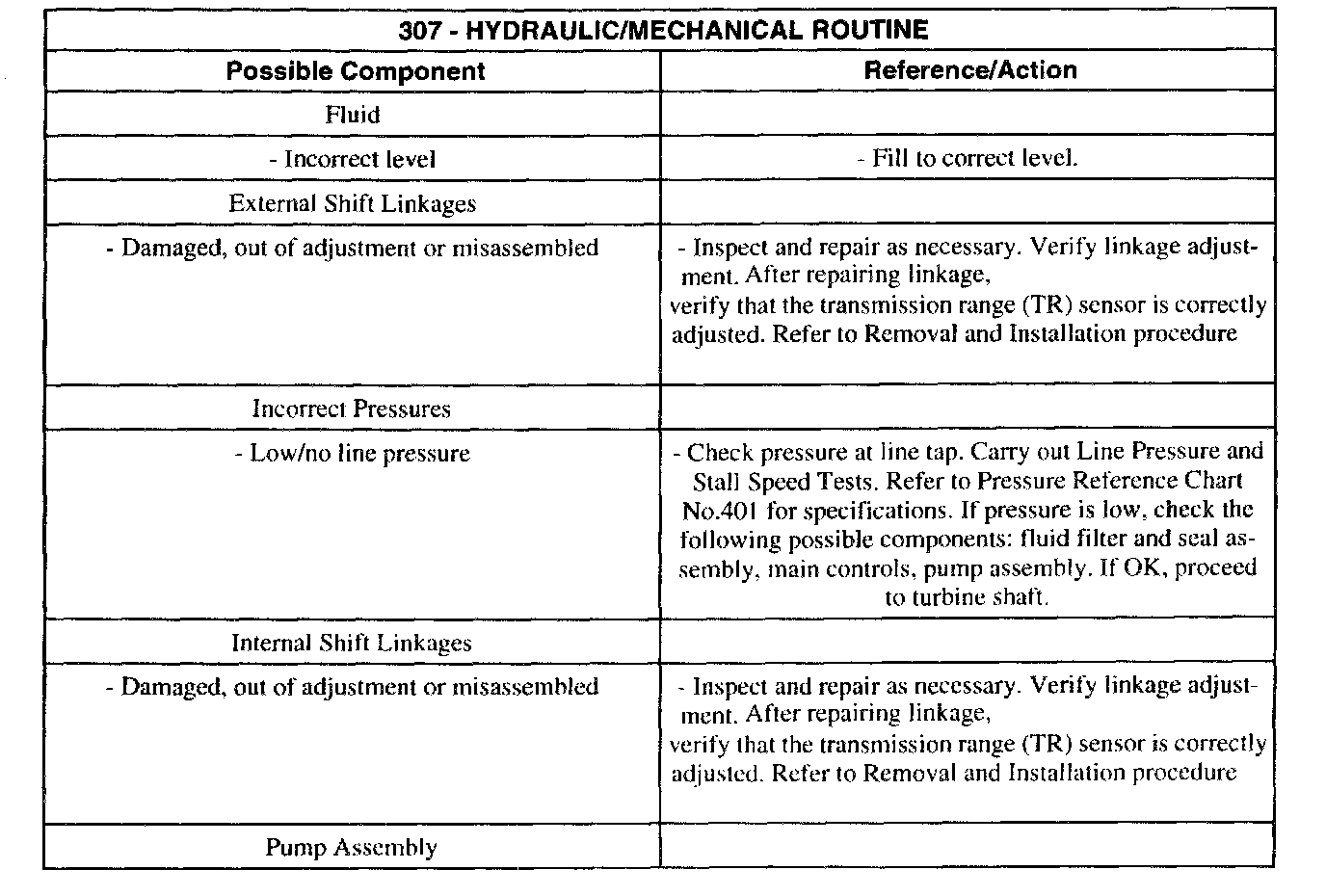

307 - Hydraulic/Mechanical Routine
