205/305: Delayed/Soft Reverse or Forward

ENGAGEMENT CONCERN: DELAYED/SOFT REVERSE OR FORWARD

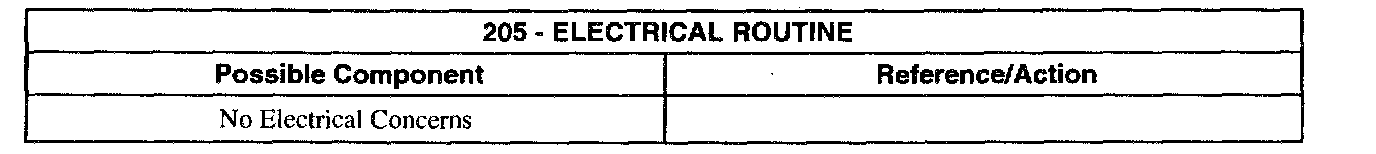

205 - Electrical Routine






Part 1 of 3





Part 2 of 3





Part 3 of 3

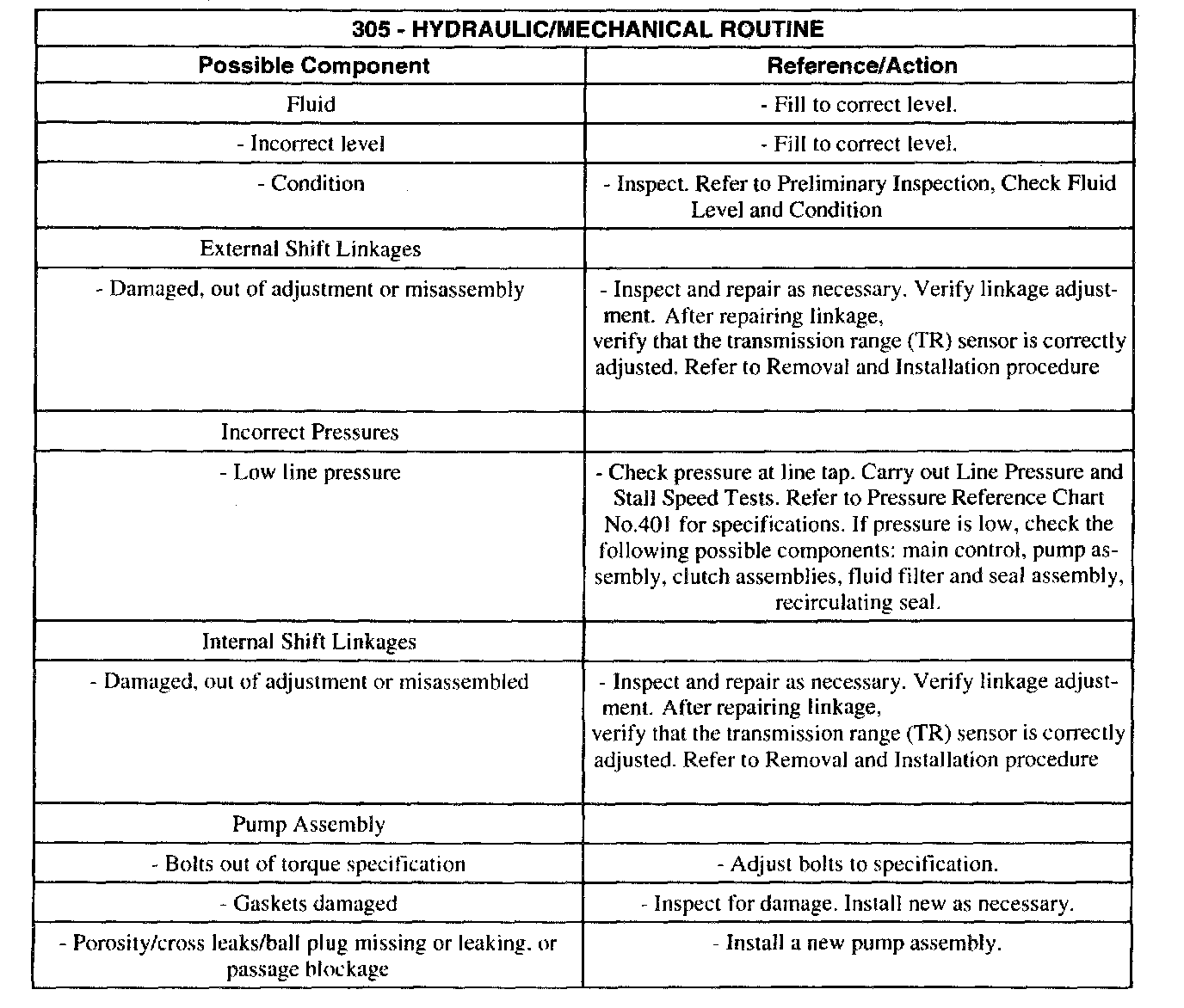

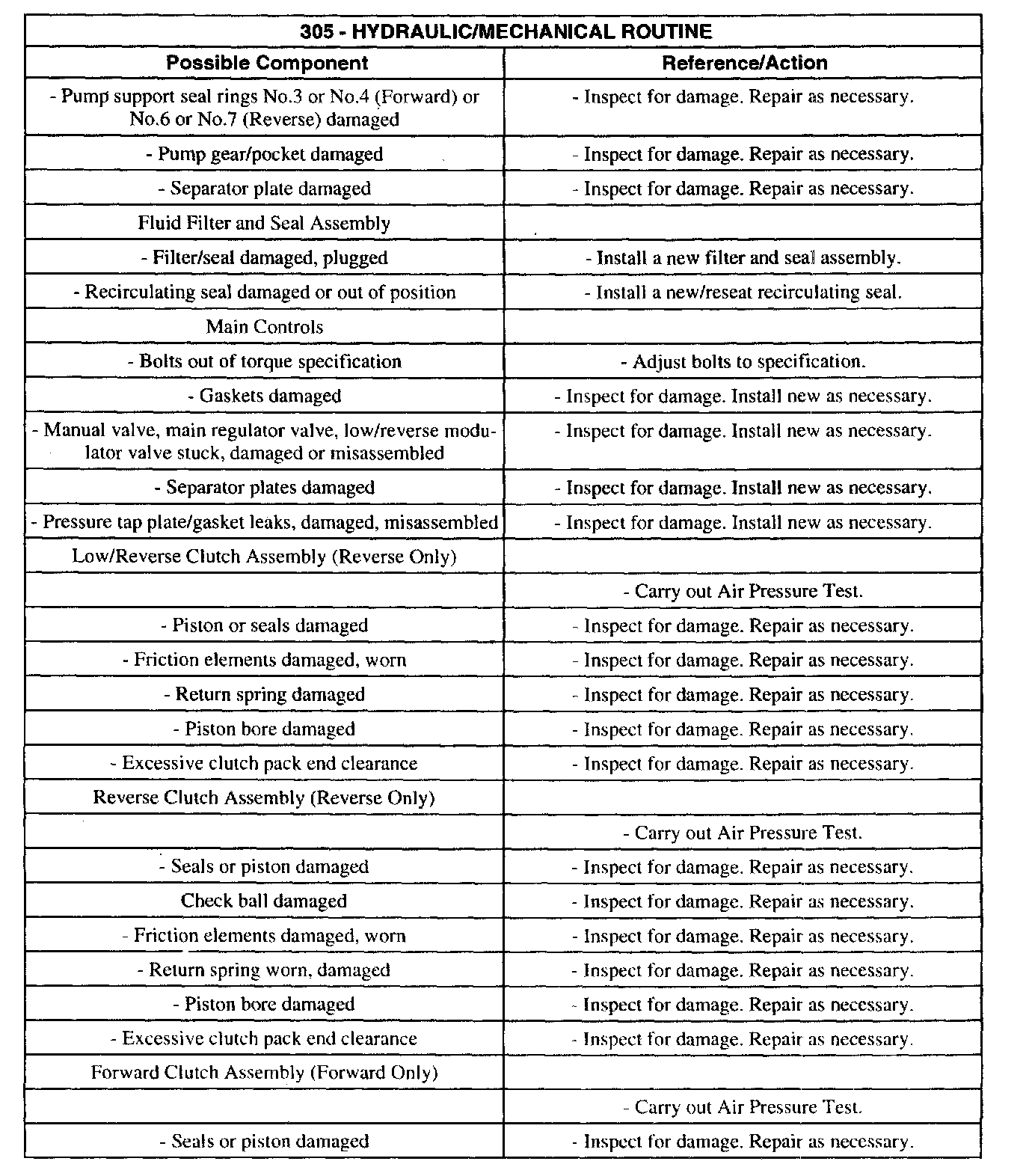

305 - Hydraulic/Mechanical Routine
