Test J: The Indicator Lamp Is Not Operating Properly

PINPOINT TEST J: THE INDICATOR LAMP IS NOT OPERATING PROPERLY

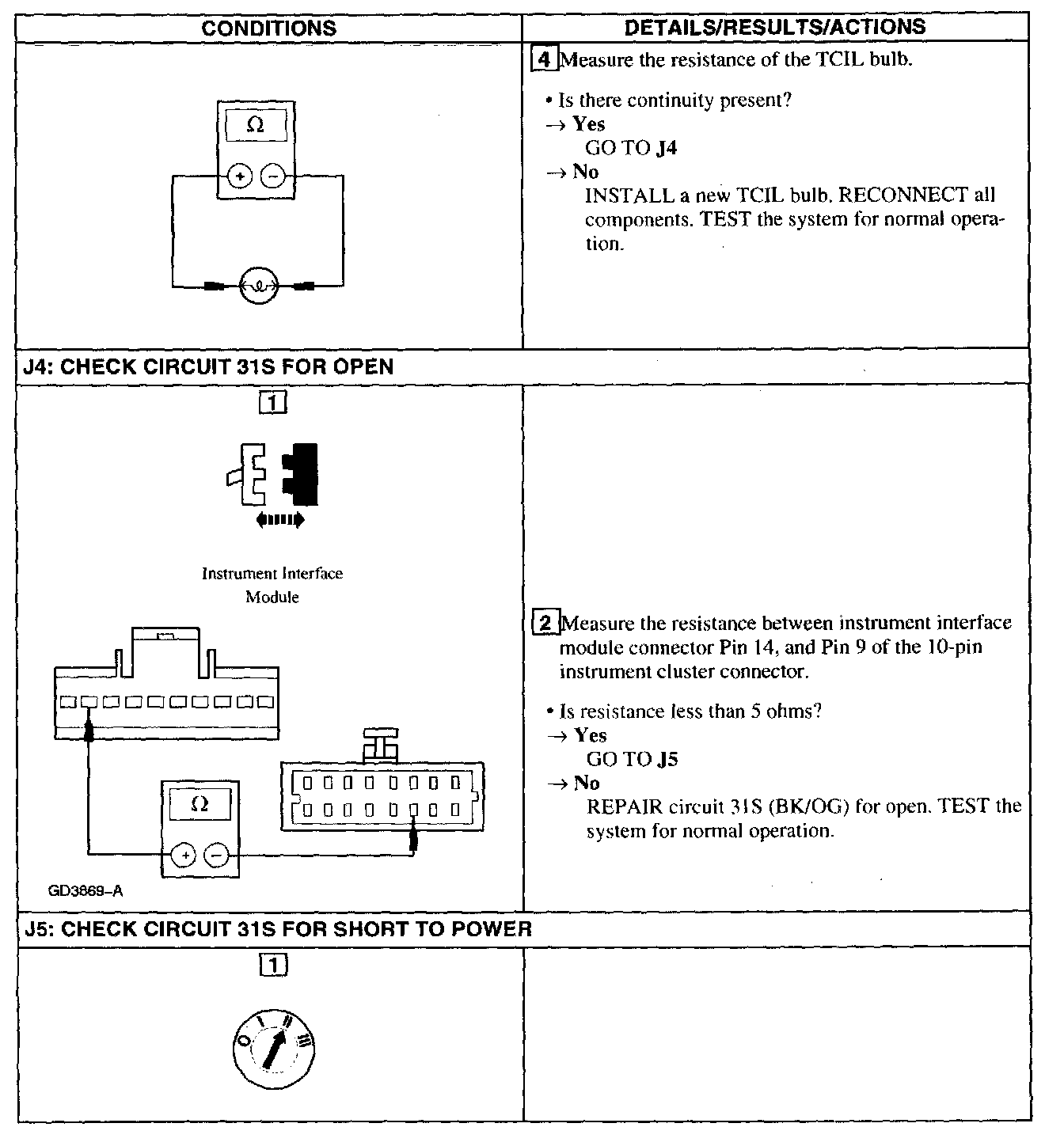

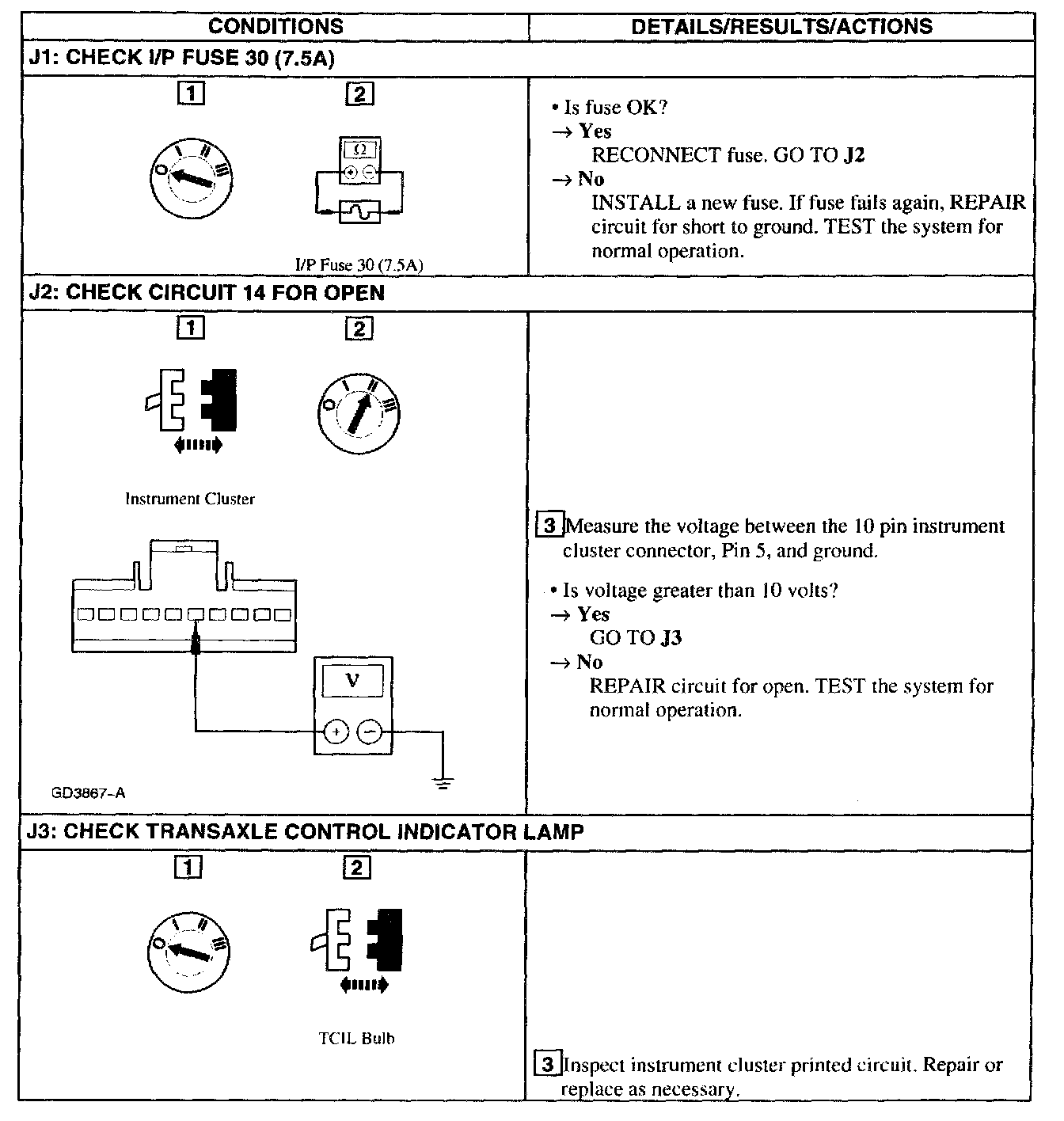

J1 - J3

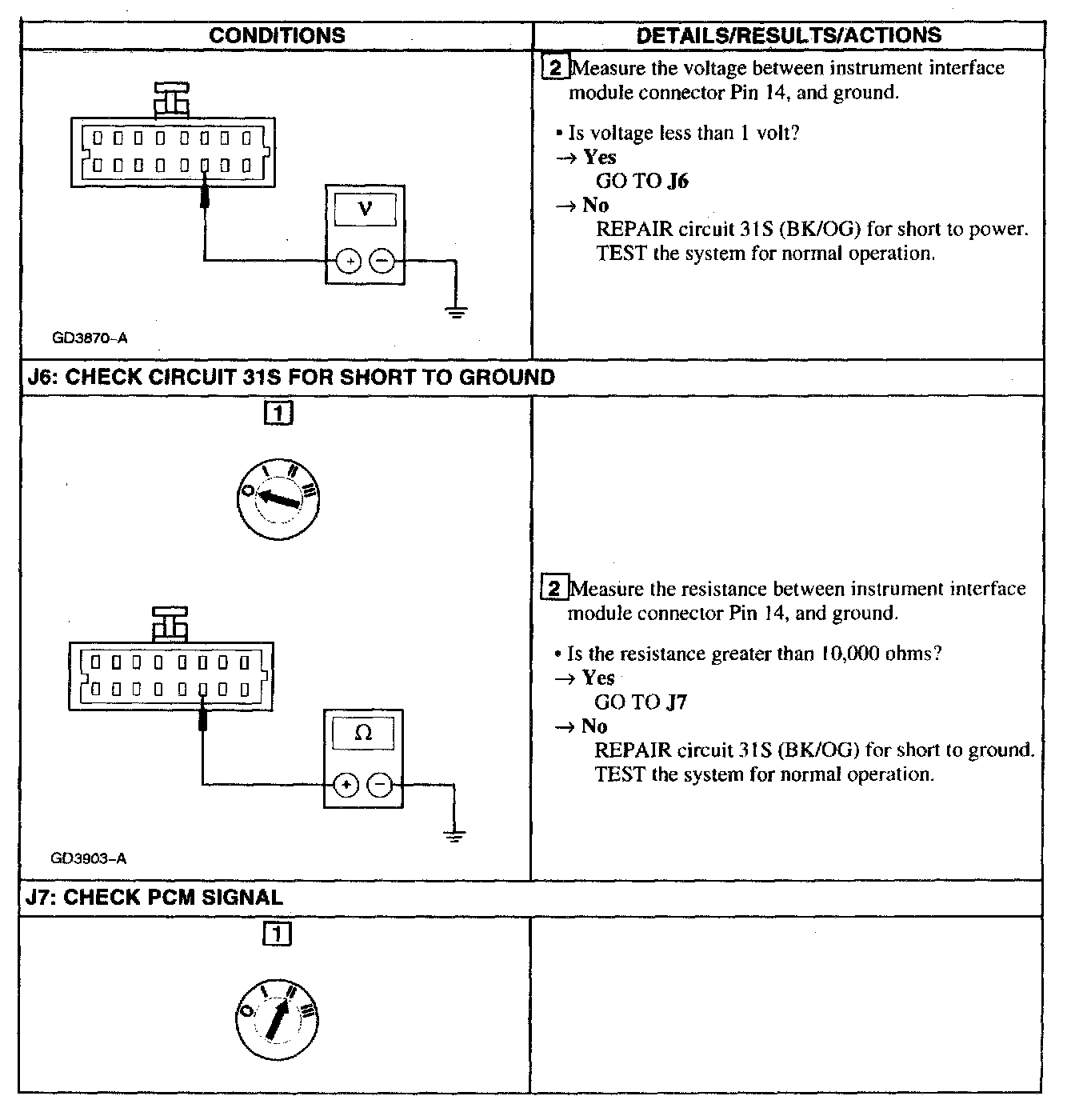

J4 - J5

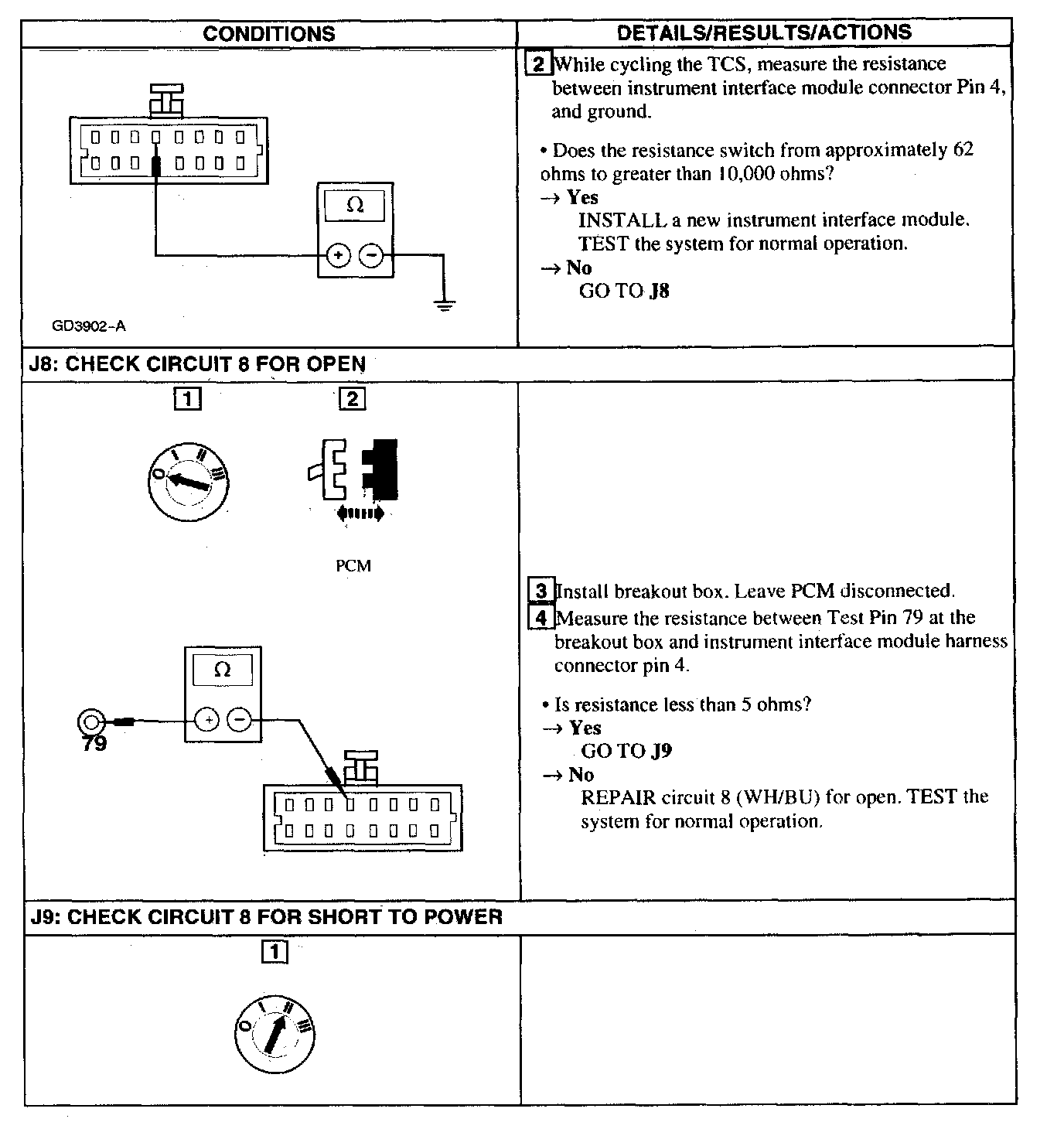

J6 - J7

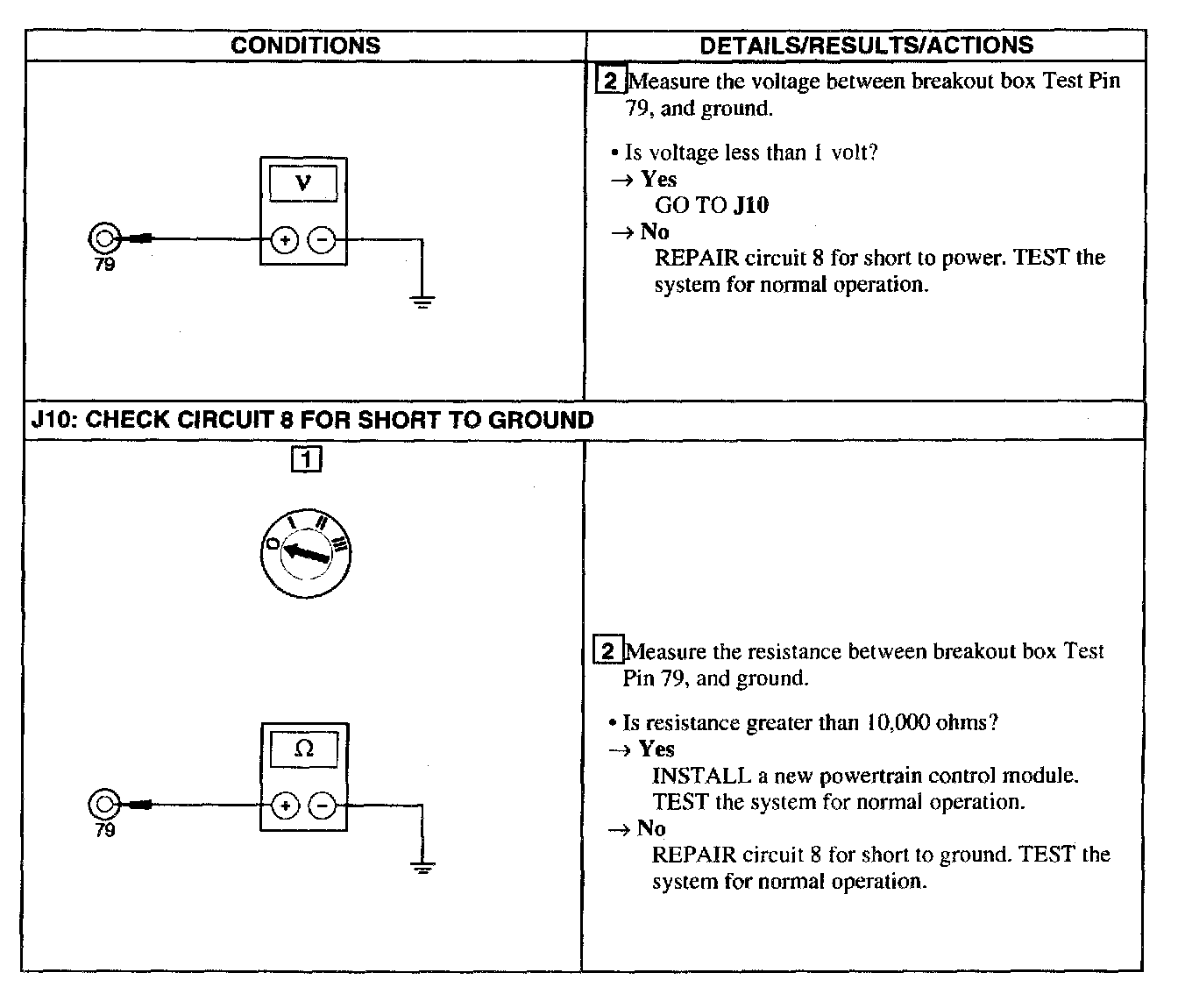

J8 - J9





J10
