Transmission Connector Layouts

Connectors

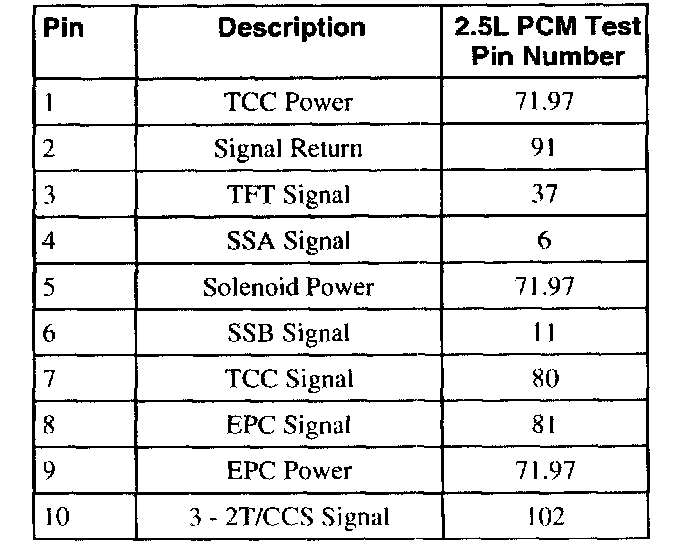

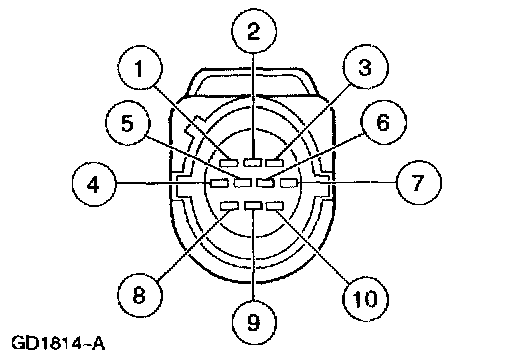

Transaxle Vehicle Harness Connector

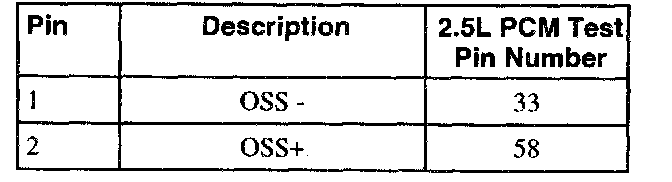

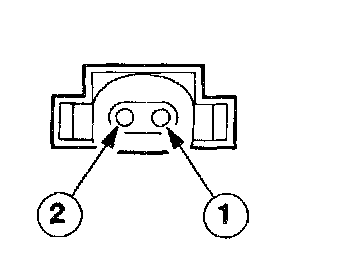

Output Shaft Speed (OSS) Sensor Connector

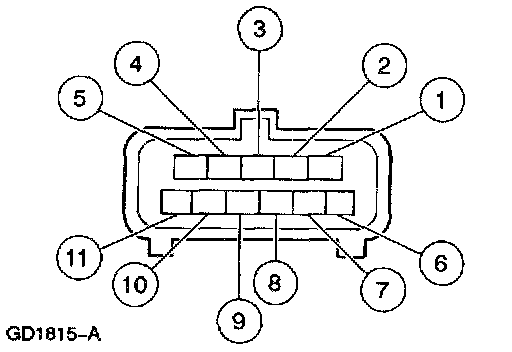

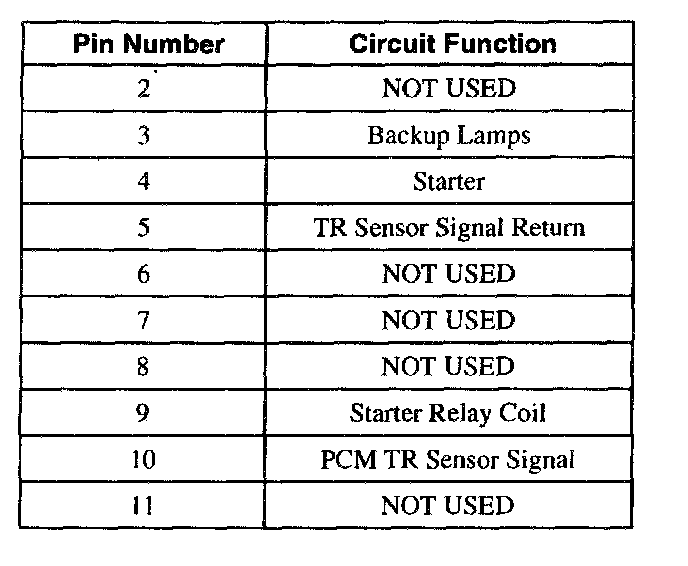

Transmission Range (TR) Sensor Connector

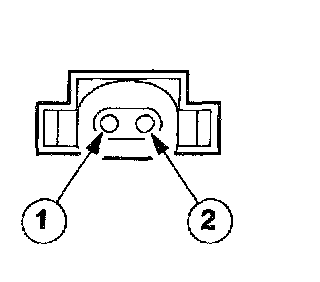

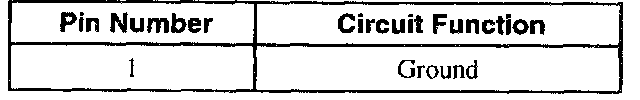

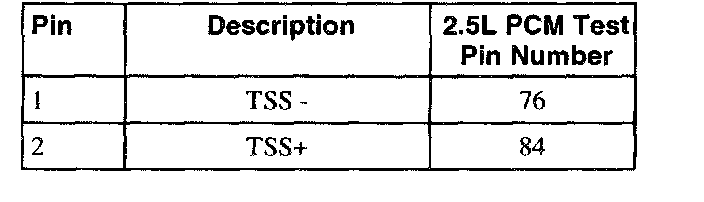

Turbine Shaft Speed (TSS) Sensor Connector
