Test B: Transmission Fluid Temperature (TFT) Sensor

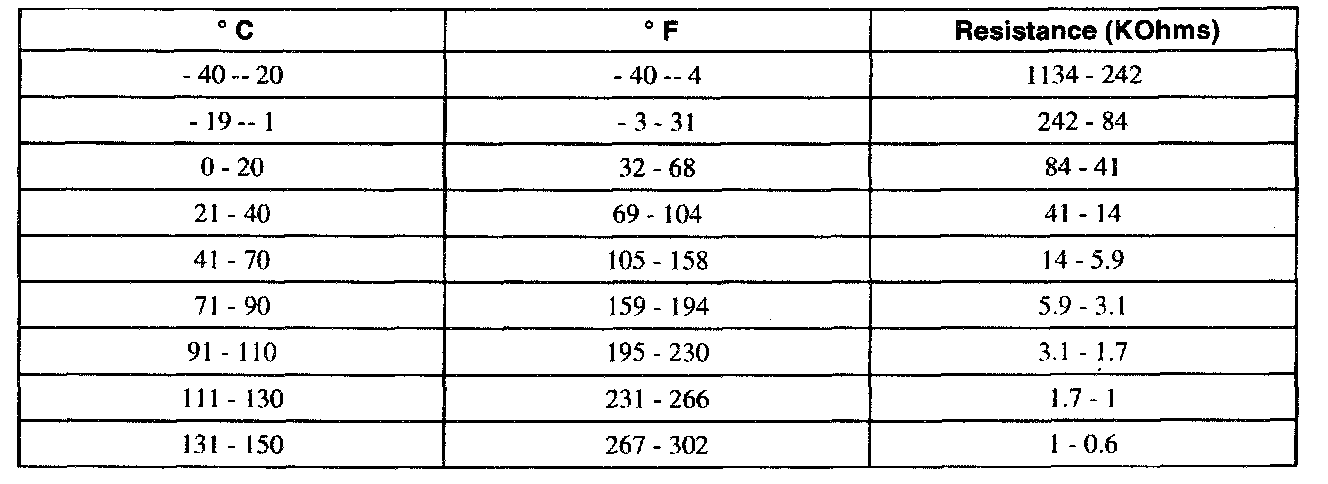

Transmission Fluid Temperature Chart

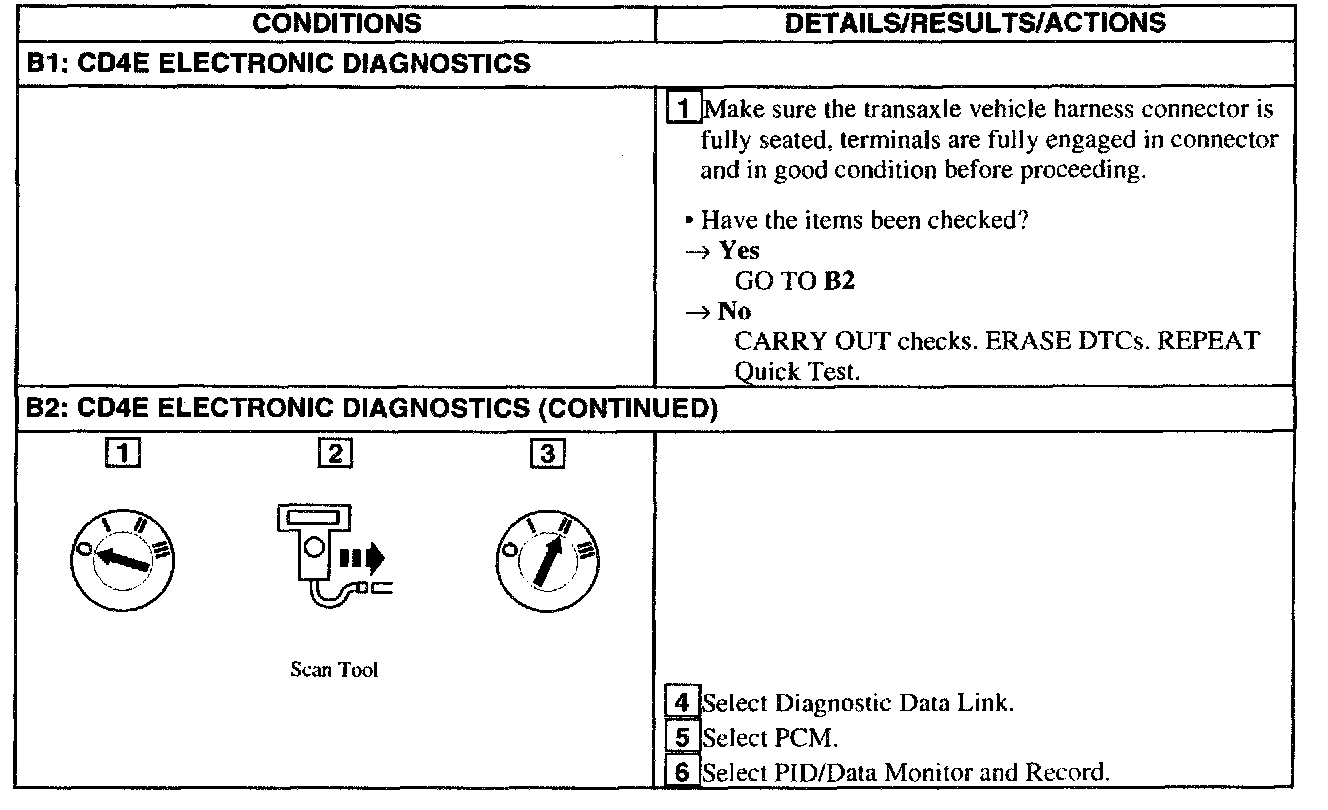

B1 - B2

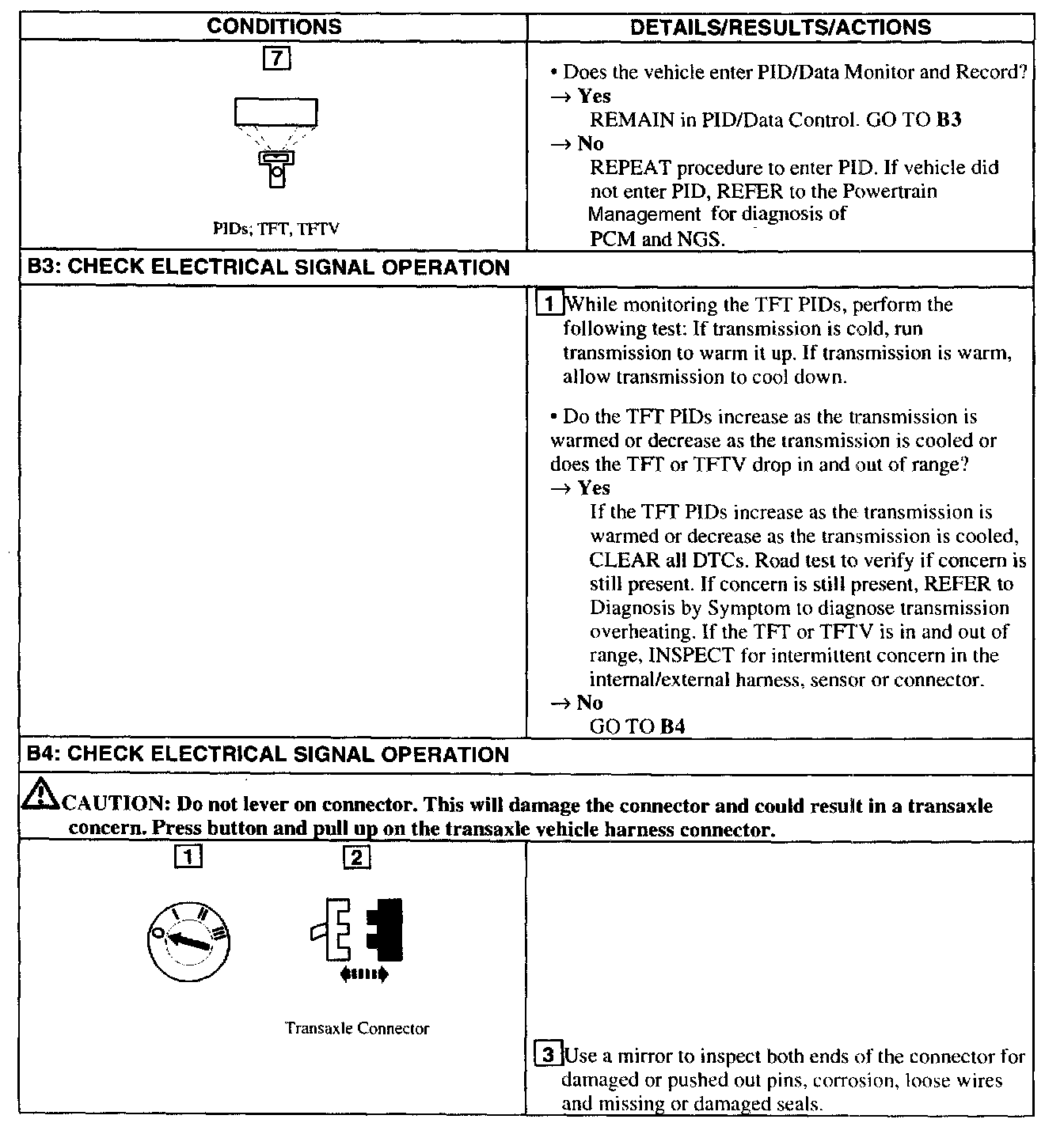

B3 - B4

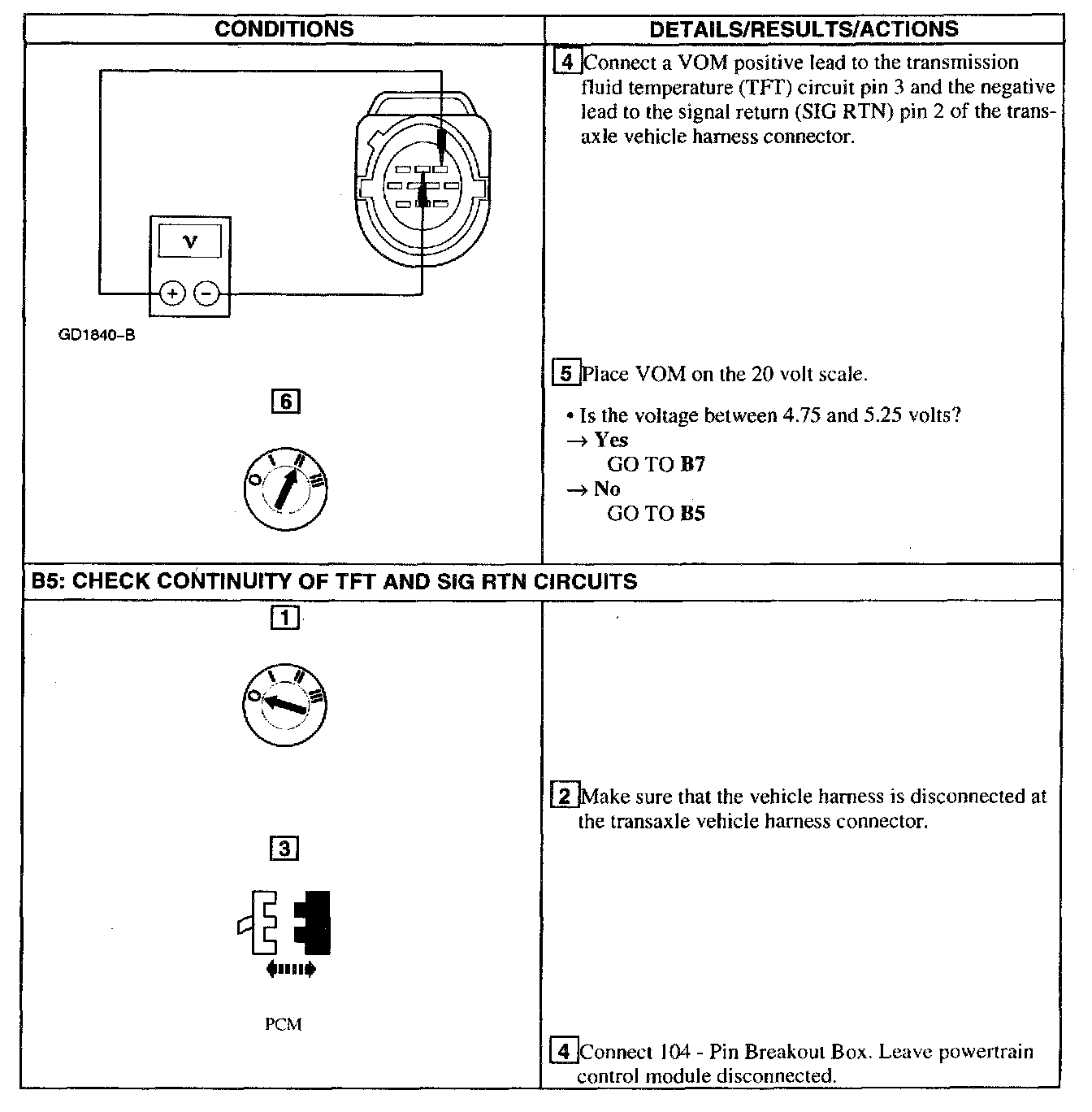

B5

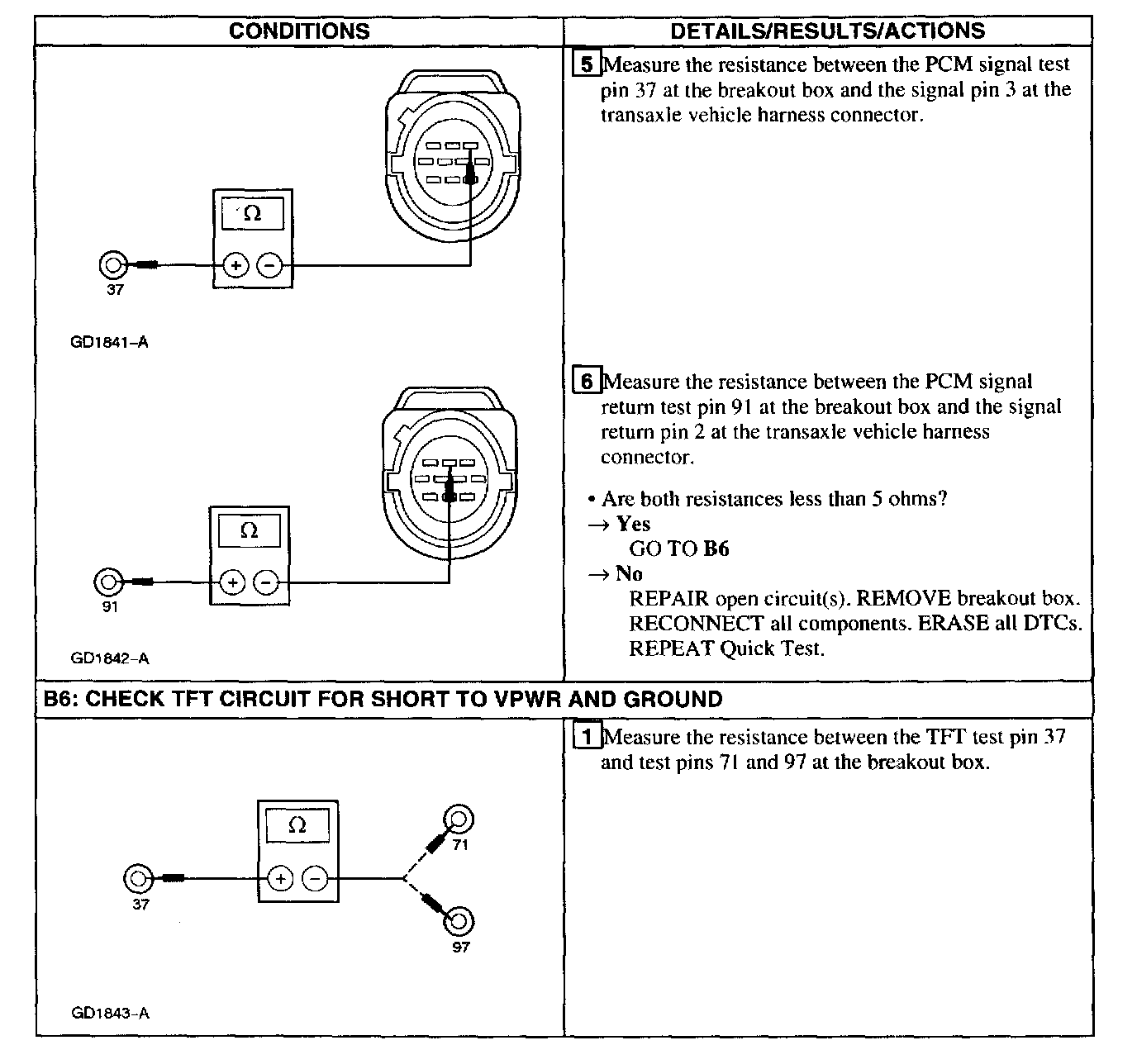

B6

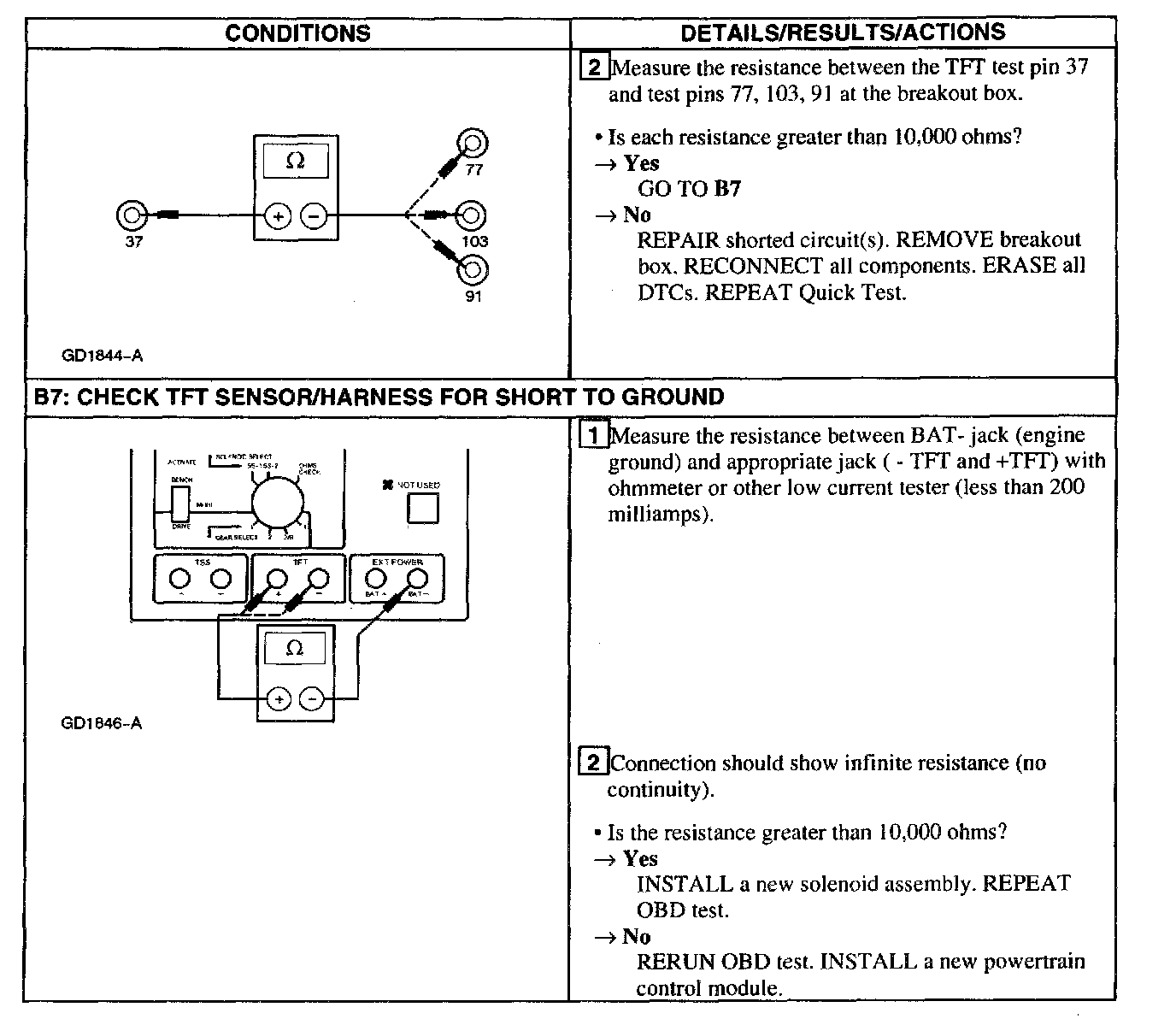

B7
