Diagnostic Trouble Code Chart

DIAGNOSTIC TROUBLE CODE CHART

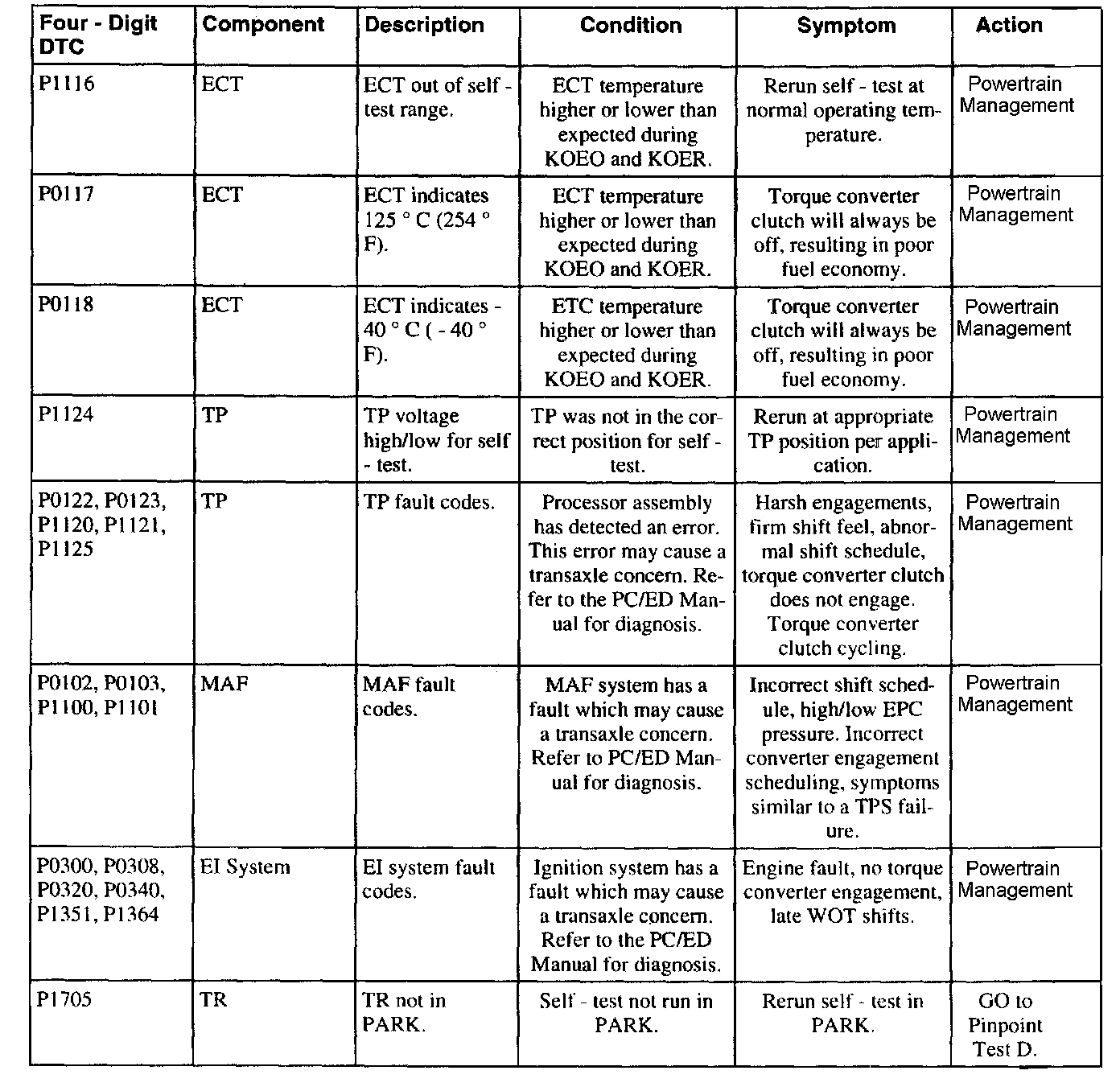

P0117-P1705:

Part 1 of 7

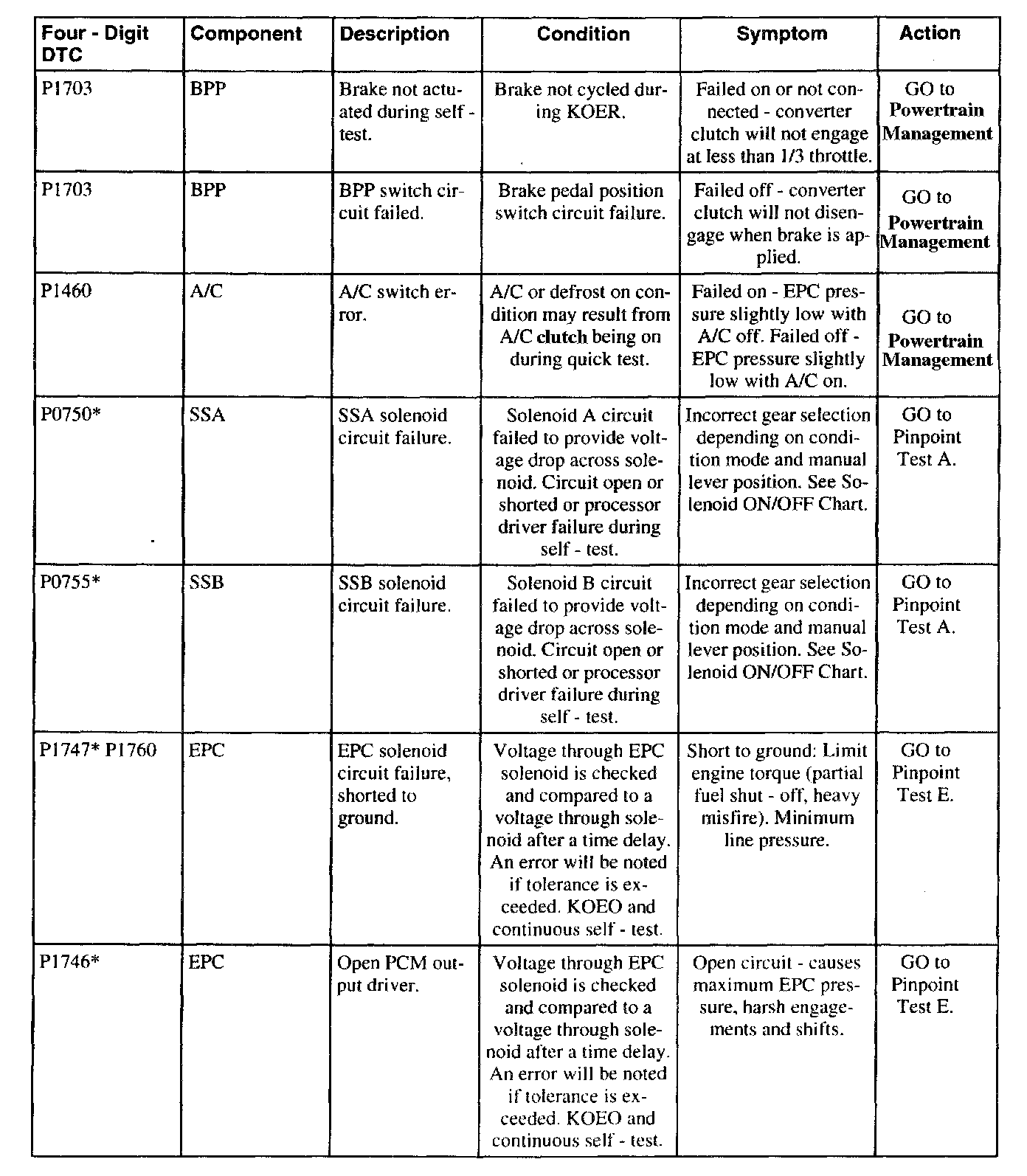

P0750-P1760:

Part 2 of 7

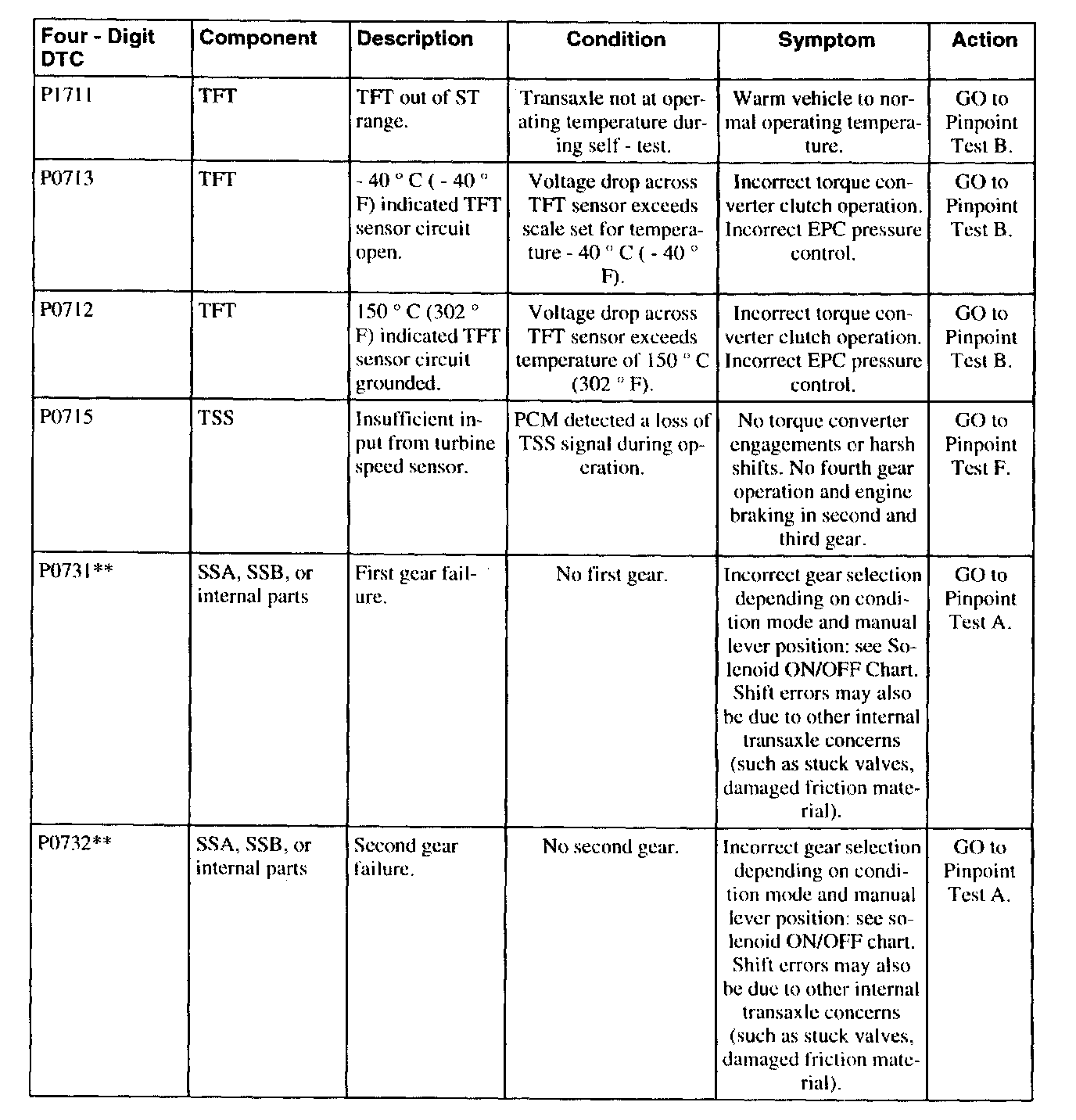

P0712-P1711:

Part 3 of 7

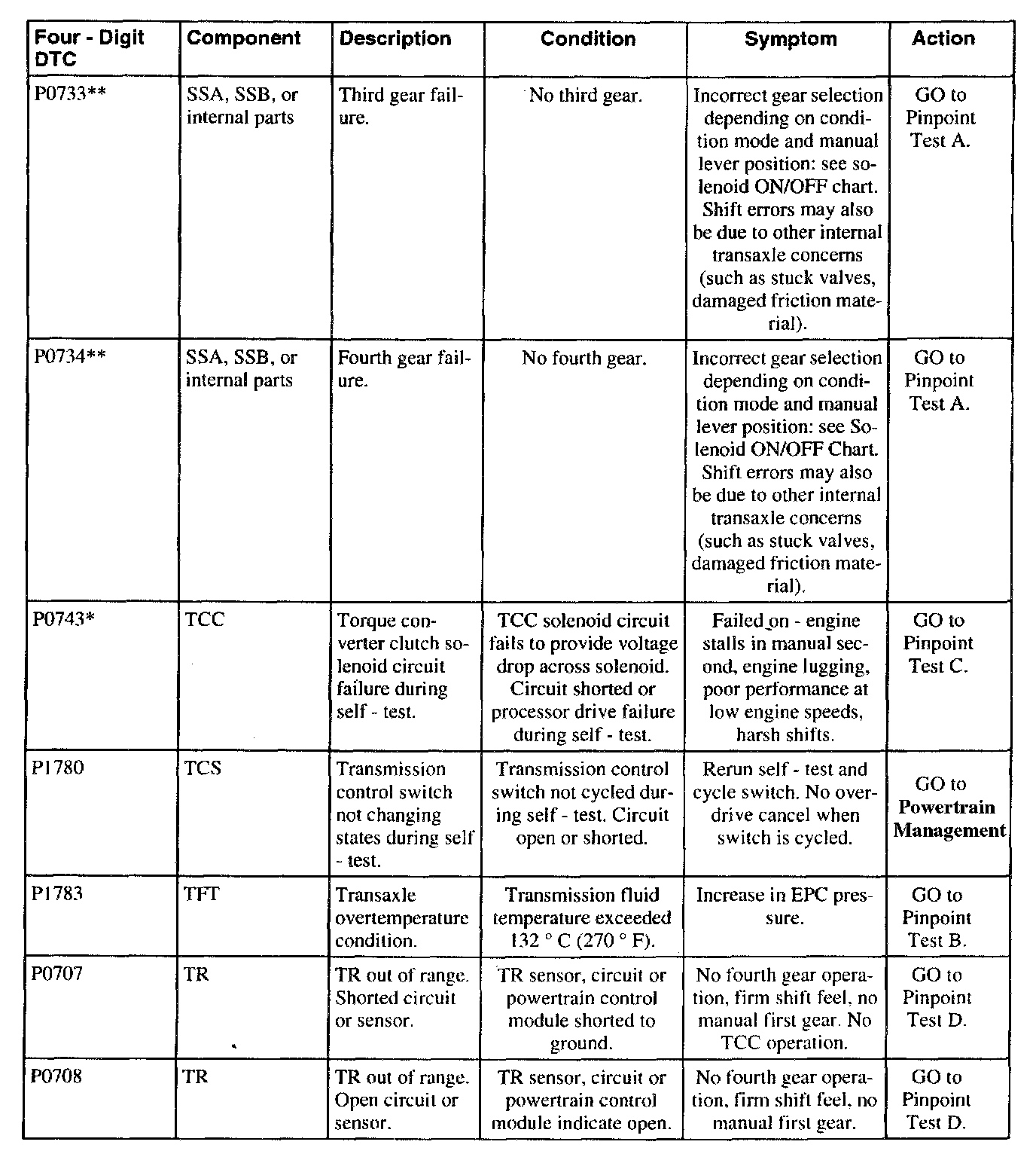

P0733-P1780:

Part 4 of 7

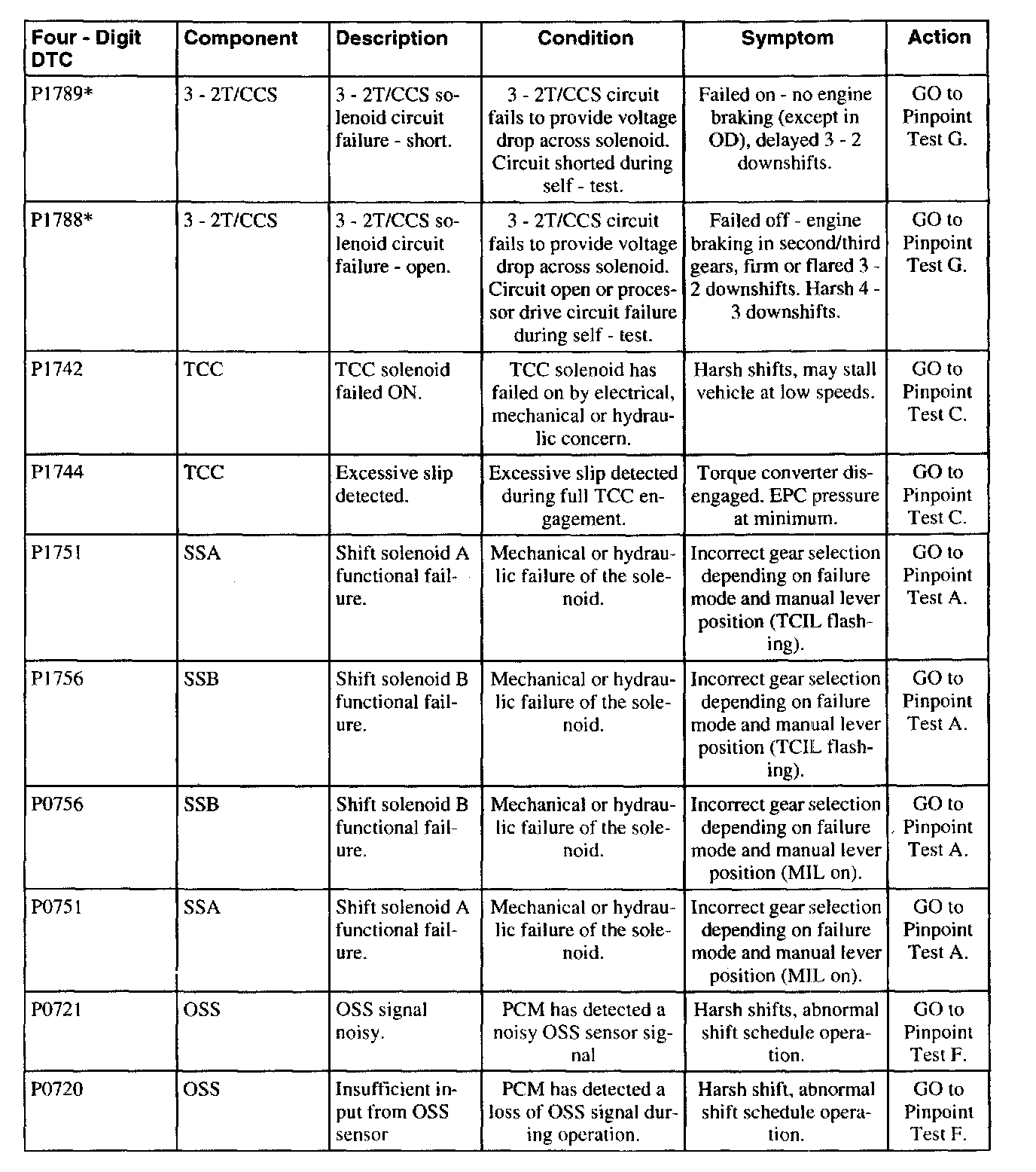

P0720-P1756:

Part 5 of 7

P0717-P1718:

Part 6 of 7

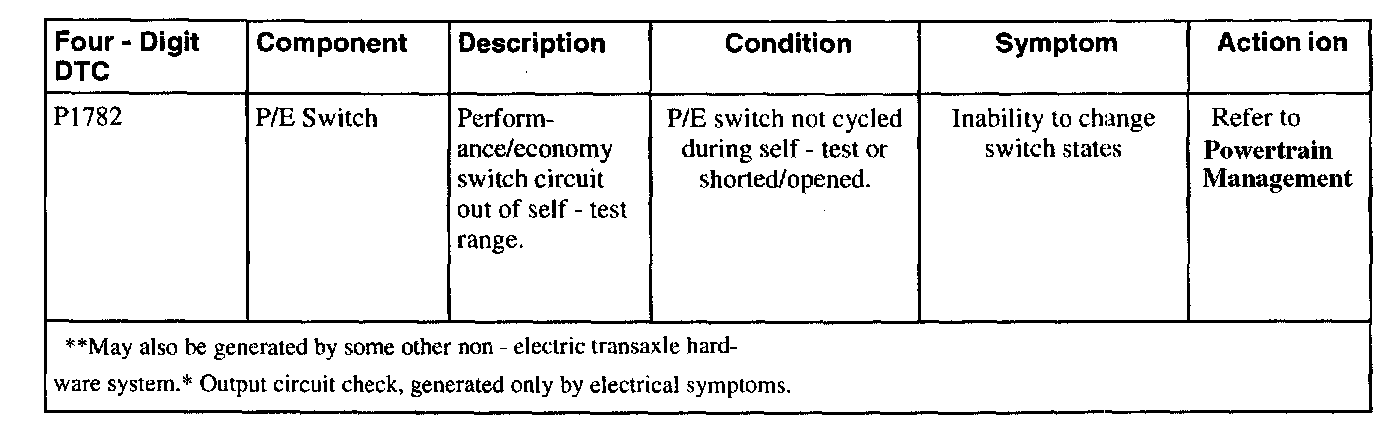

P1782:

Part 7 of 7
