Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Noise, Vibration, and Harshness Diagnosis
>>
Pinpoint Tests
>>
Test C: Idle Boom/Shake/Vibration/Shudder
Test C: Idle Boom/Shake/Vibration/Shudder

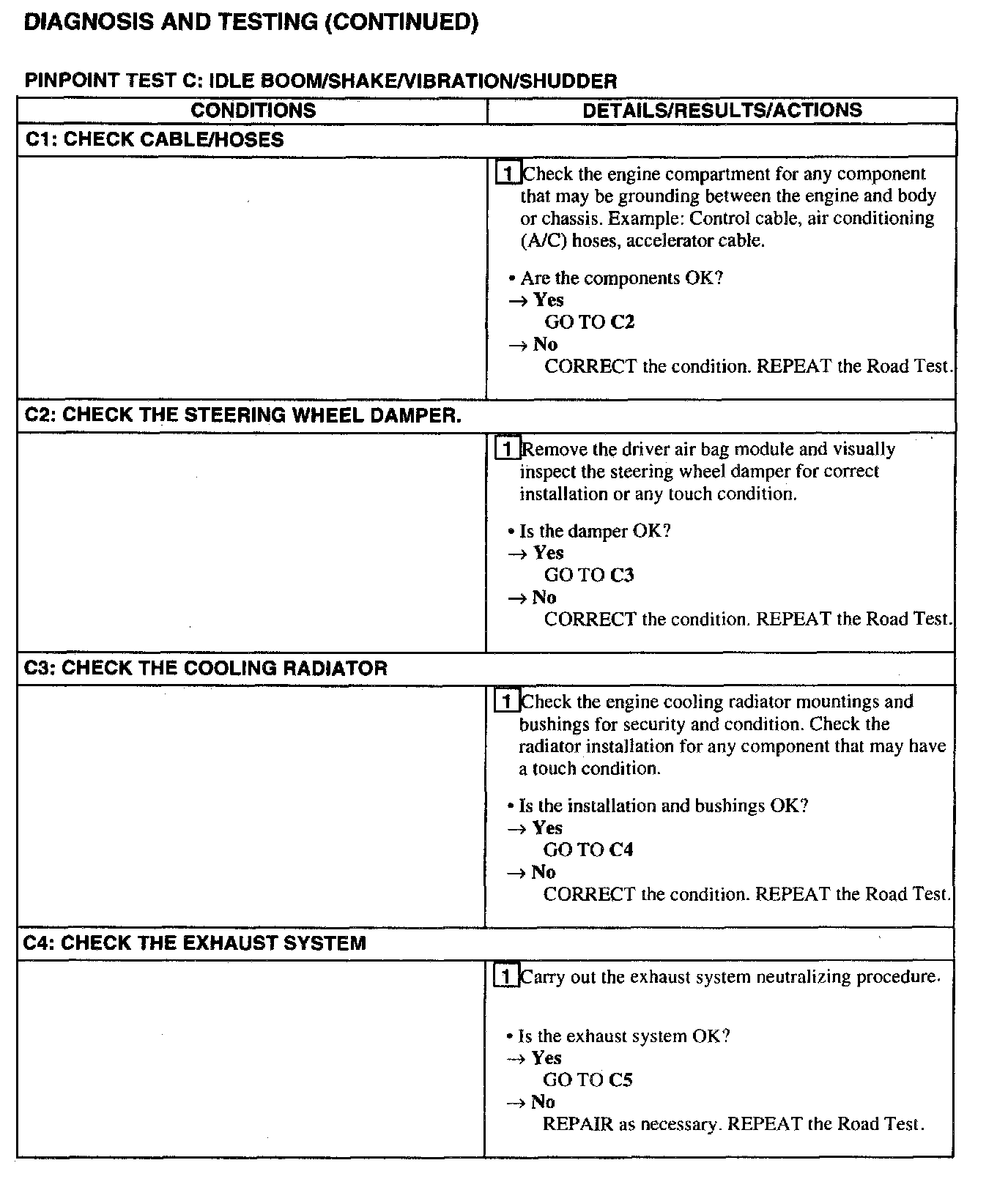

C1 - C4:

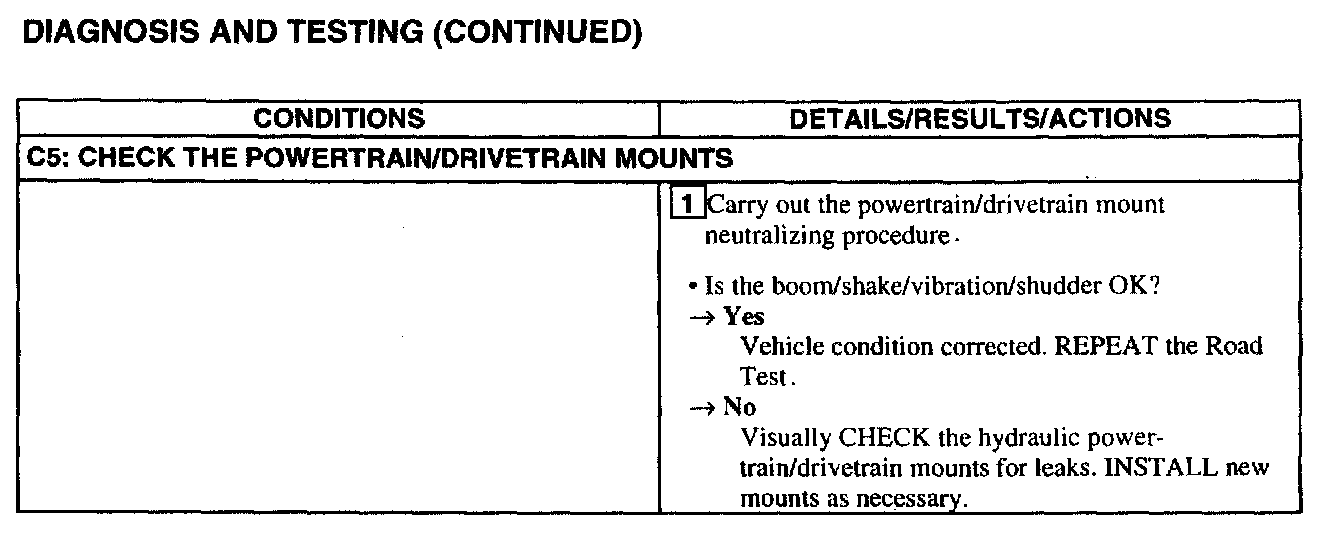

C5:
