Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> Test A: Drift Left or Right

Test A: Drift Left or Right

PINPOINT TEST A: DRIFT LEFT OR RIGHT

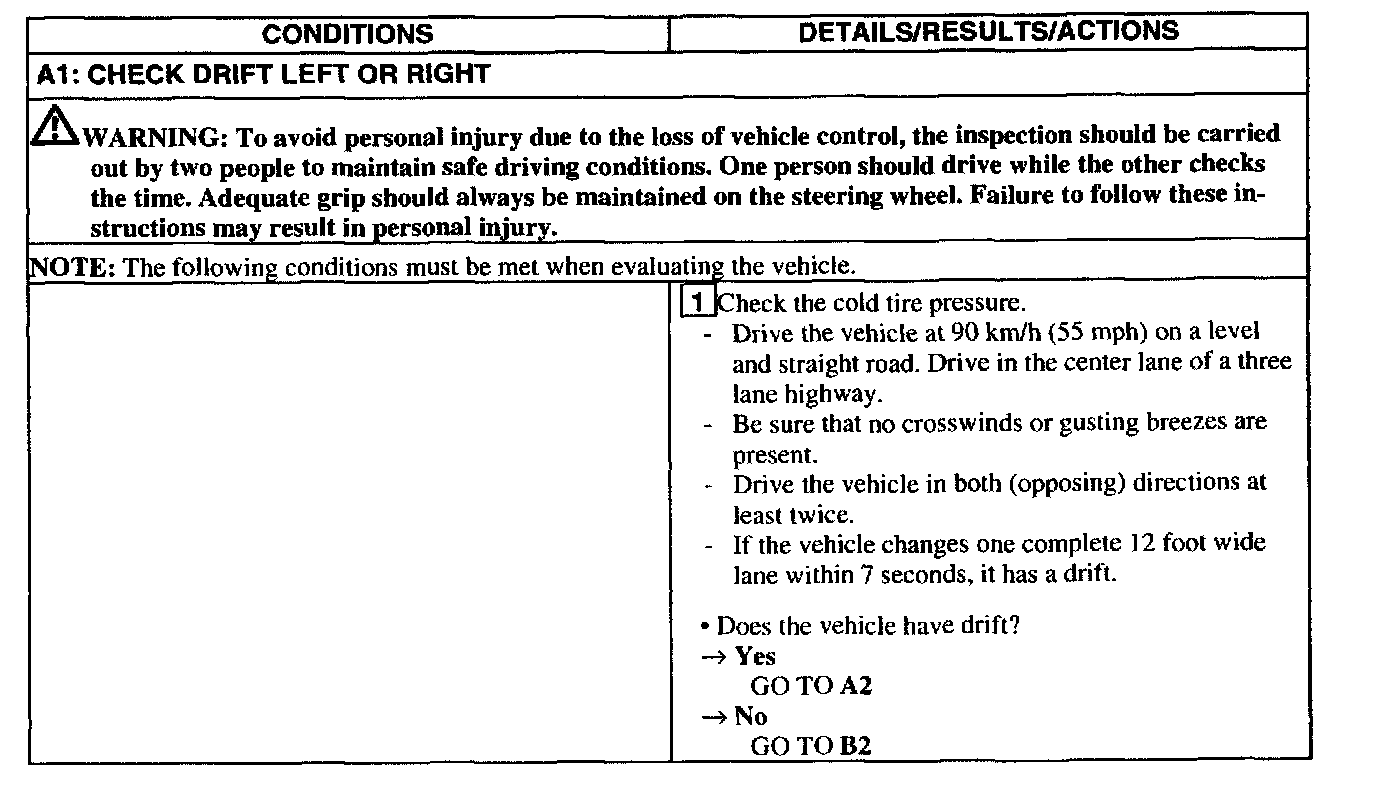

Test A1

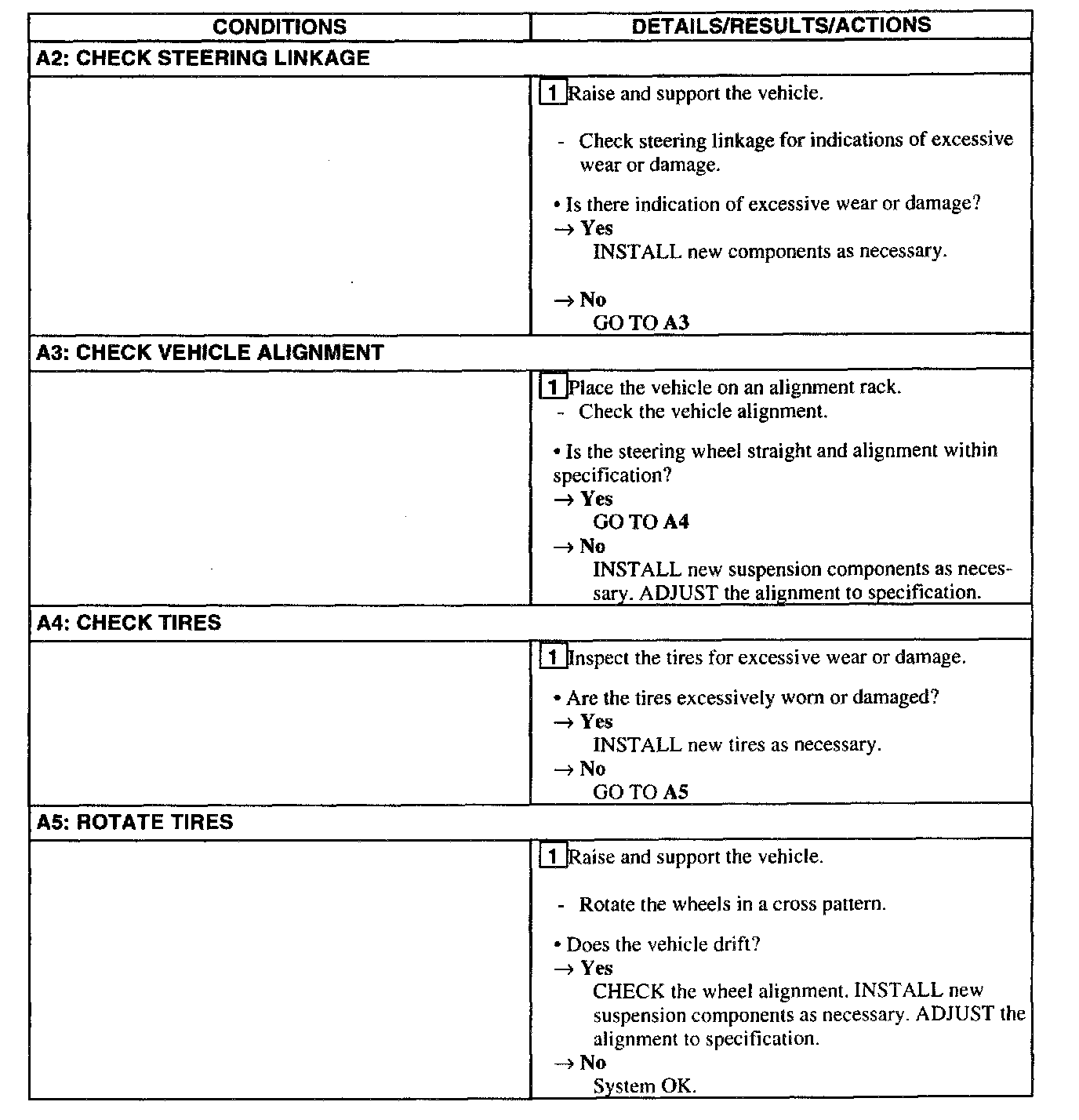

Test A2-A5
