Steering Gear Boot

Removal
1. Loosen the front wheel nuts.
2. Raise and support the vehicle.
3. Remove the front wheel.
4. Remove the tie-rod end.

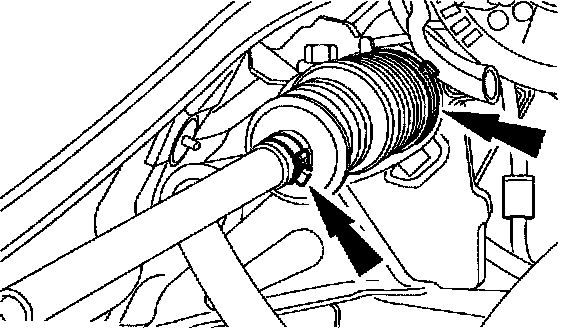

5. Remove the boot clamps.





6. Remove the boot.

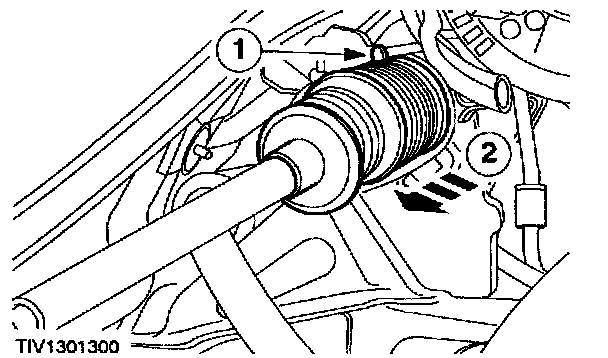

1. Disconnect the breather pipe.
2. Ease the boot off the tie-rod.

Installation





1. CAUTION: Make sure the tie-rod is clean before installing the boot.

NOTE: Install the boot using new clamps.

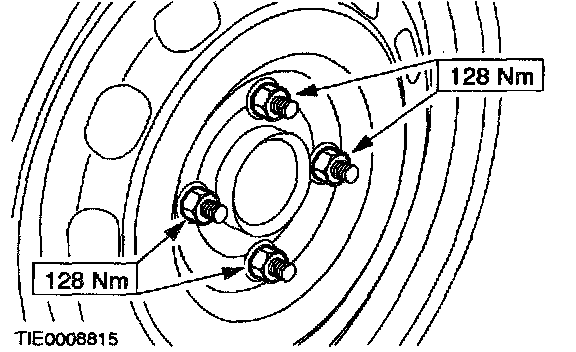

To install, reverse the removal procedure.
