Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Automatic Transaxle/Transmission >> General Specifications >> Driven Sprocket Alignment No. 11 Shim

Driven Sprocket Alignment No. 11 Shim

Driven Sprocket Alignment No. 11 Shim

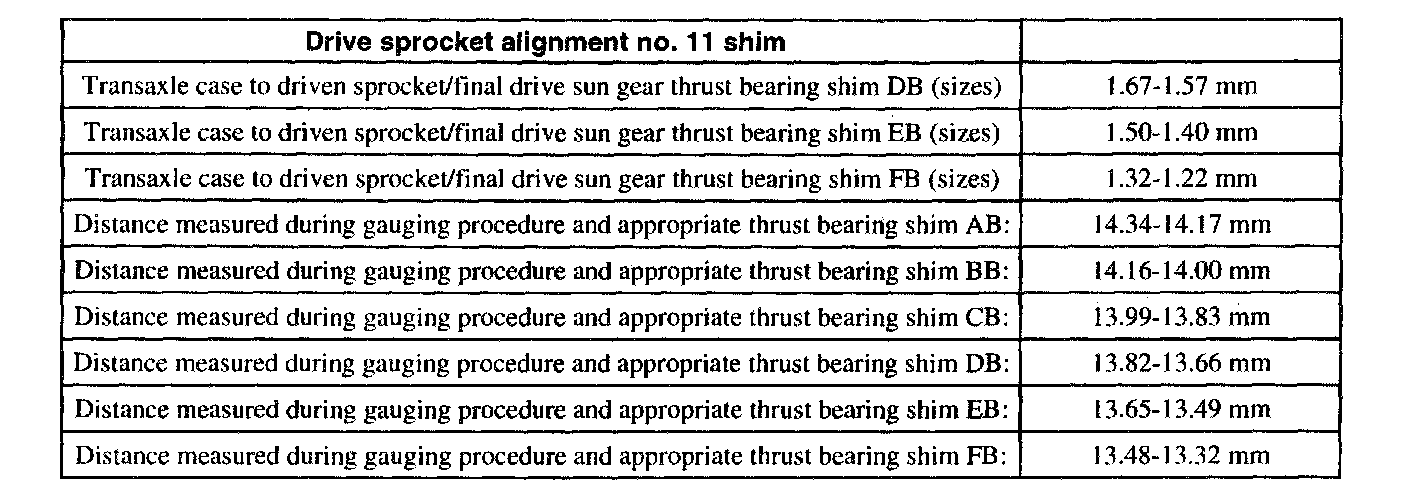

Part 1 of 2

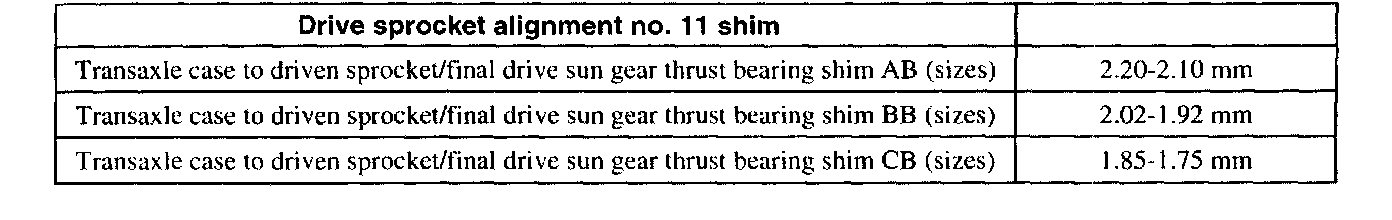

Part 2 of 2
